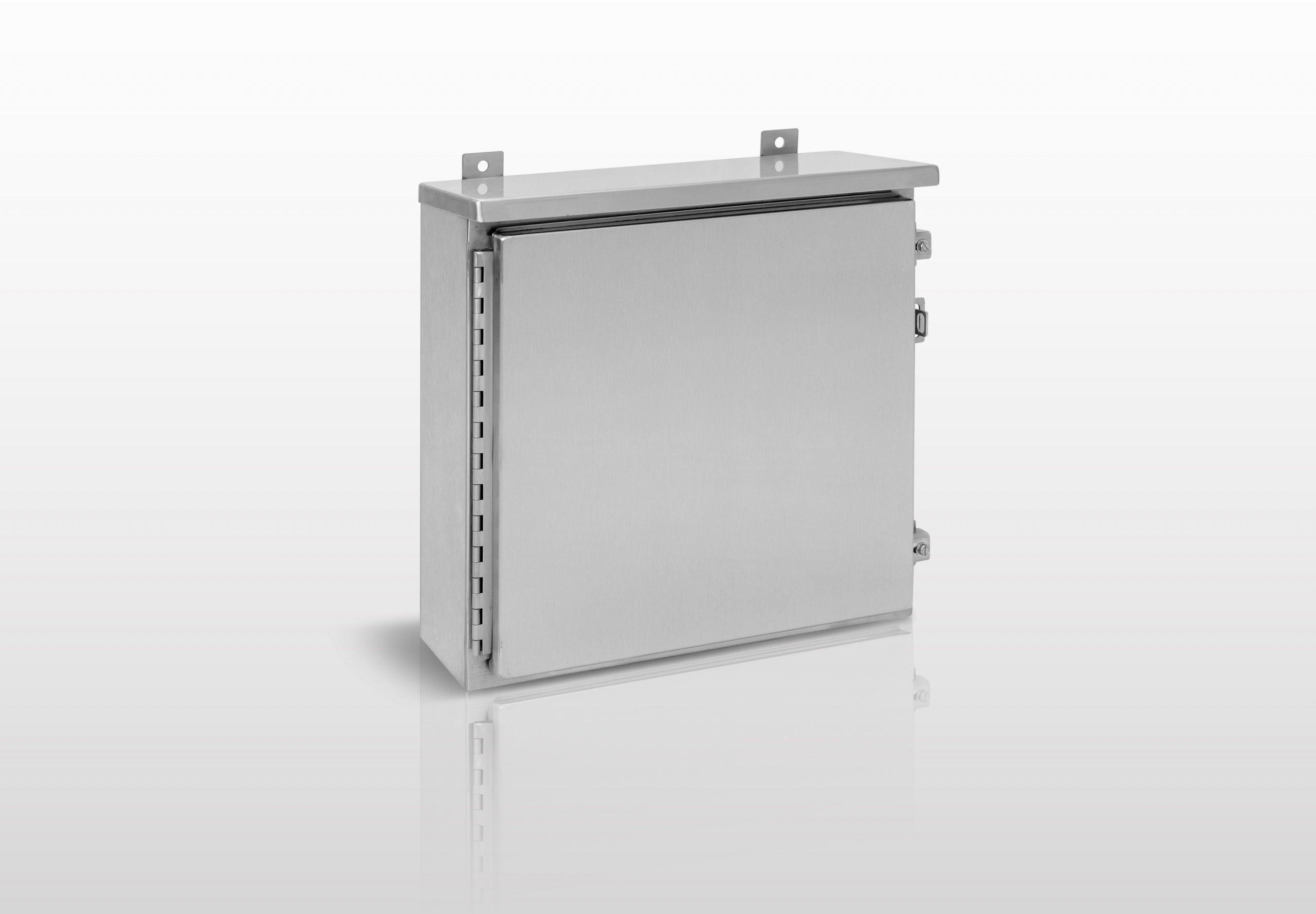

NEMA Clamp Style, 3R (304 STAINLESS STEEL) SINGLE DOOR ENCLOSURE WITH CLAMPS

SERIES N3RS

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Continuously hinged door allows for easy access to internal components
• Designed for outdoor use and will protect components from falling dust, dirt, water, rain, sleet, snow and other contanimants in highly corrosive environments

• NEMA Type Clamp Style, 3R
• CSA Type Clamp Style, 3R
• UL Type Clamp Style, 3R

TRY OUR CONFIGURATOR

• Enclosure bodies fabricated from 14 gauge Type 304 stainless steel with spot or stitch welded construction
• Door is also fabricated from 14 gauge Type 304 stainless steel
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Door is secured with clamps
• Enclosure exterior polished to a #4 finish
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

N3RS.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS
1	N3RS121206	12	12	6	17,20	2
2	N3RS121208	12	12	8	19,36	2
3	N3RS121210	12	12	10	21,51	2
4	N3RS121212	12	12	12	23,67	2
5	N3RS121606	12	16	6	21,57	2
6	N3RS121608	12	16	8	24,08	2
7	N3RS121610	12	16	10	26,59	2
8	N3RS121612	12	16	12	29,11	2
9	N3RS122006	12	20	6	25,93	2
10	N3RS122008	12	20	8	28,80	2
11	N3RS122010	12	20	10	31,68	2
12	N3RS122012	12	20	12	34,55	2
13	N3RS122406	12	24	6	30,29	2
14	N3RS122408	12	24	8	33,52	2
15	N3RS122410	12	24	10	36,76	2
16	N3RS122412	12	24	12	39,99	2
17	N3RS161206	16	12	6	21,77	2
18	N3RS161208	16	12	8	24,29	2
19	N3RS161210	16	12	10	26,80	2
20	N3RS161212	16	12	12	29,31	2
21	N3RS161606	16	16	6	27,36	2
22	N3RS161608	16	16	8	30,23	2
23	N3RS161610	16	16	10	33,10	2
24	N3RS161612	16	16	12	35,97	2
25	N3RS161616	16	16	16	41,72	2
26	N3RS162006	16	20	6	32,94	2
27	N3RS162008	16	20	8	36,17	2
28	N3RS162010	16	20	10	39,40	2
29	N3RS162012	16	20	12	42,64	2
30	N3RS162016	16	20	16	49,10	2
31	N3RS162406	16	24	6	38,52	2
32	N3RS162408	16	24	8	42,12	2
33	N3RS162410	16	24	10	45,71	2
34	N3RS162412	16	24	12	49,30	2
35	N3RS162416	16	24	16	56,48	2
36	N3RS163006	16	30	6	46,90	2
37	N3RS163008	16	30	8	51,03	2
38	N3RS163010	16	30	10	55,16	2
39	N3RS163012	16	30	12	59,29	2
40	N3RS163016	16	30	16	67,55	2
41	N3RS201206	20	12	6	26,34	2
42	N3RS201208	20	12	8	29,21	2
43	N3RS201210	20	12	10	32,09	2
44	N3RS201212	20	12	12	34,96	2
45	N3RS201606	20	16	6	33,15	2
46	N3RS201608	20	16	8	36,38	2
47	N3RS201610	20	16	10	39,61	2
48	N3RS201612	20	16	12	42,84	2
49	N3RS201616	20	16	16	49,31	2
50	N3RS202006	20	20	6	39,95	2
51	N3RS202008	20	20	8	43,54	2
52	N3RS202010	20	20	10	47,13	2
53	N3RS202012	20	20	12	50,72	2
54	N3RS202016	20	20	16	57,91	2
55	N3RS202020	20	20	20	65,09	2
56	N3RS202406	20	24	6	46,76	2
57	N3RS202408	20	24	8	50,71	2
58	N3RS202410	20	24	10	54,66	2
59	N3RS202412	20	24	12	58,61	2
60	N3RS202416	20	24	16	66,51	2
61	N3RS202420	20	24	20	74,41	2
62	N3RS203006	20	30	6	56,96	2
63	N3RS203008	20	30	8	61,45	2
64	N3RS203010	20	30	10	65,94	2
65	N3RS203012	20	30	12	70,43	2
66	N3RS203016	20	30	16	79,41	2
67	N3RS203020	20	30	20	88,38	2
68	N3RS203606	20	36	6	67,27	2
69	N3RS203608	20	36	8	72,29	2
70	N3RS203610	20	36	10	77,32	2
71	N3RS203612	20	36	12	82,35	2
72	N3RS203616	20	36	16	92,40	2
73	N3RS203620	20	36	20	102,46	2
74	N3RS241206	24	12	6	30,91	2
75	N3RS241208	24	12	8	34,14	2
76	N3RS241210	24	12	10	37,37	2
77	N3RS241212	24	12	12	40,61	2
78	N3RS241606	24	16	6	38,94	2
79	N3RS241608	24	16	8	42,53	2
80	N3RS241610	24	16	10	46,12	2
81	N3RS241612	24	16	12	49,71	2
82	N3RS241616	24	16	16	56,89	2
83	N3RS242006	24	20	6	46,96	2
84	N3RS242008	24	20	8	50,91	2
85	N3RS242010	24	20	10	54,86	2
86	N3RS242012	24	20	12	58,81	2
87	N3RS242016	24	20	16	66,71	2
88	N3RS242020	24	20	20	74,61	2
89	N3RS242406	24	24	6	54,99	2
90	N3RS242408	24	24	8	59,30	2
91	N3RS242410	24	24	10	63,61	2
92	N3RS242412	24	24	12	67,92	2
93	N3RS242416	24	24	16	76,53	2
94	N3RS242420	24	24	20	85,15	2
95	N3RS243006	24	30	6	67,03	2
96	N3RS243008	24	30	8	71,87	2
97	N3RS243010	24	30	10	76,72	2
98	N3RS243012	24	30	12	81,57	2
99	N3RS243016	24	30	16	91,27	2
100	N3RS243020	24	30	20	100,96	2
101	N3RS243606	24	36	6	79,16	2
102	N3RS243608	24	36	8	84,55	2
103	N3RS243610	24	36	10	89,93	2
104	N3RS243612	24	36	12	95,32	2
105	N3RS243616	24	36	16	106,09	2
106	N3RS243620	24	36	20	116,87	2
107	N3RS301606	30	16	6	47,62	2
108	N3RS301608	30	16	8	51,75	2
109	N3RS301610	30	16	10	55,88	2
110	N3RS301612	30	16	12	60,01	2
111	N3RS301616	30	16	16	68,27	2
112	N3RS302006	30	20	6	57,48	2
113	N3RS302008	30	20	8	61,97	2
114	N3RS302010	30	20	10	66,46	2
115	N3RS302012	30	20	12	70,94	2
116	N3RS302016	30	20	16	79,92	2
117	N3RS302020	30	20	20	88,90	2
118	N3RS302406	30	24	6	67,34	2
119	N3RS302408	30	24	8	72,18	2
120	N3RS302410	30	24	10	77,03	2
121	N3RS302412	30	24	12	81,88	2
122	N3RS302416	30	24	16	91,57	2
123	N3RS302420	30	24	20	101,27	2
124	N3RS303006	30	30	6	82,12	2
125	N3RS303008	30	30	8	87,51	2
126	N3RS303010	30	30	10	92,89	2
127	N3RS303012	30	30	12	98,28	2
128	N3RS303016	30	30	16	109,05	2
129	N3RS303020	30	30	20	119,83	2
130	N3RS303606	30	36	6	97,00	2
131	N3RS303608	30	36	8	102,93	2
132	N3RS303610	30	36	10	108,85	2
133	N3RS303612	30	36	12	114,78	2
134	N3RS303616	30	36	16	126,63	2
135	N3RS303620	30	36	20	138,48	2
136	N3RS362006	36	20	6	68,09	2
137	N3RS362008	36	20	8	73,12	2
138	N3RS362010	36	20	10	78,15	2
139	N3RS362012	36	20	12	83,17	2
140	N3RS362016	36	20	16	93,23	2
141	N3RS362020	36	20	20	103,28	2
142	N3RS362406	36	24	6	79,78	2
143	N3RS362408	36	24	8	85,17	2
144	N3RS362410	36	24	10	90,55	2
145	N3RS362412	36	24	12	95,94	2
146	N3RS362416	36	24	16	106,71	2
147	N3RS362420	36	24	20	117,48	2
148	N3RS363006	36	30	6	97,31	2
149	N3RS363008	36	30	8	103,24	2
150	N3RS363010	36	30	10	109,16	2
151	N3RS363012	36	30	12	115,09	2
152	N3RS363016	36	30	16	126,94	2
153	N3RS363020	36	30	20	138,79	2
154	N3RS363606	36	36	6	114,94	2
155	N3RS363608	36	36	8	121,41	2
156	N3RS363610	36	36	10	127,87	2
157	N3RS363612	36	36	12	134,33	2
158	N3RS363616	36	36	16	147,26	2
159	N3RS363620	36	36	20	160,19	2
160	N3RS422406	42	24	6	92,13	2
161	N3RS422408	42	24	8	98,05	2
162	N3RS422410	42	24	10	103,98	2
163	N3RS422412	42	24	12	109,90	2
164	N3RS422416	42	24	16	121,75	2
165	N3RS422420	42	24	20	133,60	2
166	N3RS423006	42	30	6	112,41	2
167	N3RS423008	42	30	8	118,87	2
168	N3RS423010	42	30	10	125,33	2
169	N3RS423012	42	30	12	131,80	2
170	N3RS423016	42	30	16	144,73	2
171	N3RS423020	42	30	20	157,65	2
172	N3RS423606	42	36	6	132,78	2
173	N3RS423608	42	36	8	139,79	2
174	N3RS423610	42	36	10	146,79	2
175	N3RS423612	42	36	12	153,79	2
176	N3RS423616	42	36	16	167,80	2
177	N3RS423620	42	36	20	181,80	2
178	N3RS482406	48	24	6	104,62	3
179	N3RS482408	48	24	8	111,08	3
180	N3RS482410	48	24	10	117,55	3
181	N3RS482412	48	24	12	124,01	3
182	N3RS482416	48	24	16	136,94	3
183	N3RS482420	48	24	20	149,87	3
184	N3RS483006	48	30	6	127,65	3
185	N3RS483008	48	30	8	134,65	3
186	N3RS483010	48	30	10	141,65	3
187	N3RS483012	48	30	12	148,65	3
188	N3RS483016	48	30	16	162,66	3
189	N3RS483020	48	30	20	176,66	3
190	N3RS483606	48	36	6	150,77	3
191	N3RS483608	48	36	8	158,31	3
192	N3RS483610	48	36	10	165,85	3
193	N3RS483612	48	36	12	173,39	3
194	N3RS483616	48	36	16	188,48	3
195	N3RS483620	48	36	20	203,56	3
196	N3RS602406	60	24	6	129,32	3
197	N3RS602408	60	24	8	136,86	3
198	N3RS602410	60	24	10	144,40	3
199	N3RS602412	60	24	12	151,94	3
200	N3RS602416	60	24	16	167,02	3
201	N3RS602420	60	24	20	182,10	3
202	N3RS603006	60	30	6	157,84	3
203	N3RS603008	60	30	8	165,92	3
204	N3RS603010	60	30	10	174,00	3
205	N3RS603012	60	30	12	182,08	3
206	N3RS603016	60	30	16	198,24	3
207	N3RS603020	60	30	20	214,40	3
208	N3RS603606	60	36	6	186,46	3
209	N3RS603608	60	36	8	195,07	3
210	N3RS603610	60	36	10	203,69	3
211	N3RS603612	60	36	12	212,31	3
212	N3RS603616	60	36	16	229,55	3
213	N3RS603620	60	36	20	246,78	3
214	N3RS722406	72	24	6	154,01	3
215	N3RS722408	72	24	8	162,63	3
216	N3RS722410	72	24	10	171,25	3
217	N3RS722412	72	24	12	179,87	3
218	N3RS722416	72	24	16	197,10	3
219	N3RS722420	72	24	20	214,34	3
220	N3RS723006	72	30	6	188,03	3
221	N3RS723008	72	30	8	197,18	3
222	N3RS723010	72	30	10	206,34	3
223	N3RS723012	72	30	12	215,50	3
224	N3RS723016	72	30	16	233,81	3
225	N3RS723020	72	30	20	252,13	3
226	N3RS723606	72	36	6	222,14	3
227	N3RS723608	72	36	8	231,83	3
228	N3RS723610	72	36	10	241,53	3
229	N3RS723612	72	36	12	251,23	3
230	N3RS723616	72	36	16	270,62	3
231	N3RS723620	72	36	20	290,01	3
