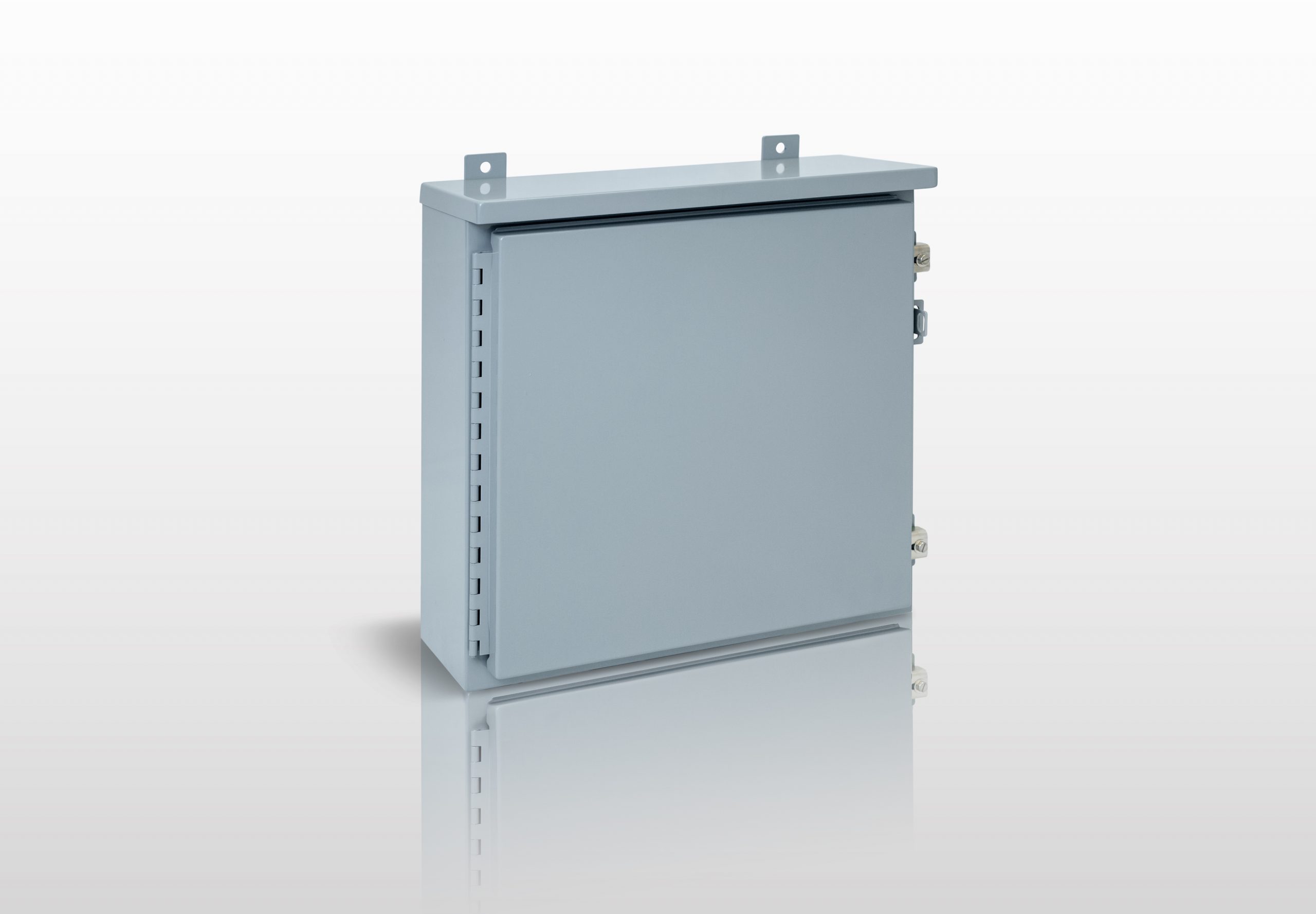

NEMA Clamp Style, 3R SINGLE DOOR ENCLOSURE WITH CLAMPS

SERIES N3R

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Continuously hinged door allows for easy access to internal components
• Designed for outdoor use and will protect components from falling dust, dirt, water, rain, sleet and snow

• NEMA Type Clamp Style, 3R
• CSA Type Clamp Style, 3R
• UL Type Clamp Style, 3R

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with spot or stitch welded construction
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Door is secured with stainless steel continuous hinge and stainless steel clamps
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

N3R.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS
1	N3R121206	12	12	6	17,20	2
2	N3R121208	12	12	8	19,36	2
3	N3R121210	12	12	10	21,51	2
4	N3R121212	12	12	12	23,67	2
5	N3R121606	12	16	6	21,57	2
6	N3R121608	12	16	8	24,08	2
7	N3R121610	12	16	10	26,59	2
8	N3R121612	12	16	12	29,11	2
9	N3R122006	12	20	6	25,93	2
10	N3R122008	12	20	8	28,80	2
11	N3R122010	12	20	10	31,68	2
12	N3R122012	12	20	12	34,55	2
13	N3R122406	12	24	6	30,29	2
14	N3R122408	12	24	8	33,52	2
15	N3R122410	12	24	10	36,76	2
16	N3R122412	12	24	12	39,99	2
17	N3R161206	16	12	6	21,77	2
18	N3R161208	16	12	8	24,29	2
19	N3R161210	16	12	10	26,80	2
20	N3R161212	16	12	12	29,31	2
21	N3R161606	16	16	6	27,36	2
22	N3R161608	16	16	8	30,23	2
23	N3R161610	16	16	10	33,10	2
24	N3R161612	16	16	12	35,97	2
25	N3R161616	16	16	16	41,72	2
26	N3R162006	16	20	6	32,94	2
27	N3R162008	16	20	8	36,17	2
28	N3R162010	16	20	10	39,40	2
29	N3R162012	16	20	12	42,64	2
30	N3R162016	16	20	16	49,10	2
31	N3R162406	16	24	6	38,52	2
32	N3R162408	16	24	8	42,12	2
33	N3R162410	16	24	10	45,71	2
34	N3R162412	16	24	12	49,30	2
35	N3R162416	16	24	16	56,48	2
36	N3R163006	16	30	6	46,90	2
37	N3R163008	16	30	8	51,03	2
38	N3R163010	16	30	10	55,16	2
39	N3R163012	16	30	12	59,29	2
40	N3R163016	16	30	16	67,55	2
41	N3R201206	20	12	6	26,34	2
42	N3R201208	20	12	8	29,21	2
43	N3R201210	20	12	10	32,09	2
44	N3R201212	20	12	12	34,96	2
45	N3R201606	20	16	6	33,15	2
46	N3R201608	20	16	8	36,38	2
47	N3R201610	20	16	10	39,61	2
48	N3R201612	20	16	12	42,84	2
49	N3R201616	20	16	16	49,31	2
50	N3R202006	20	20	6	39,95	2
51	N3R202008	20	20	8	43,54	2
52	N3R202010	20	20	10	47,13	2
53	N3R202012	20	20	12	50,72	2
54	N3R202016	20	20	16	57,91	2
55	N3R202020	20	20	20	65,09	2
56	N3R202406	20	24	6	46,76	2
57	N3R202408	20	24	8	50,71	2
58	N3R202410	20	24	10	54,66	2
59	N3R202412	20	24	12	58,61	2
60	N3R202416	20	24	16	66,51	2
61	N3R202420	20	24	20	74,41	2
62	N3R203006	20	30	6	56,96	2
63	N3R203008	20	30	8	61,45	2
64	N3R203010	20	30	10	65,94	2
65	N3R203012	20	30	12	70,43	2
66	N3R203016	20	30	16	79,41	2
67	N3R203020	20	30	20	88,38	2
68	N3R203606	20	36	6	67,27	2
69	N3R203608	20	36	8	72,29	2
70	N3R203610	20	36	10	77,32	2
71	N3R203612	20	36	12	82,35	2
72	N3R203616	20	36	16	92,40	2
73	N3R203620	20	36	20	102,46	2
74	N3R241206	24	12	6	30,91	2
75	N3R241208	24	12	8	34,14	2
76	N3R241210	24	12	10	37,37	2
77	N3R241212	24	12	12	40,61	2
78	N3R241606	24	16	6	38,94	2
79	N3R241608	24	16	8	42,53	2
80	N3R241610	24	16	10	46,12	2
81	N3R241612	24	16	12	49,71	2
82	N3R241616	24	16	16	56,89	2
83	N3R242006	24	20	6	46,96	2
84	N3R242008	24	20	8	50,91	2
85	N3R242010	24	20	10	54,86	2
86	N3R242012	24	20	12	58,81	2
87	N3R242016	24	20	16	66,71	2
88	N3R242020	24	20	20	74,61	2
89	N3R242406	24	24	6	54,99	2
90	N3R242408	24	24	8	59,30	2
91	N3R242410	24	24	10	63,61	2
92	N3R242412	24	24	12	67,92	2
93	N3R242416	24	24	16	76,53	2
94	N3R242420	24	24	20	85,15	2
95	N3R243006	24	30	6	67,03	2
96	N3R243008	24	30	8	71,87	2
97	N3R243010	24	30	10	76,72	2
98	N3R243012	24	30	12	81,57	2
99	N3R243016	24	30	16	91,27	2
100	N3R243020	24	30	20	100,96	2
101	N3R243606	24	36	6	79,16	2
102	N3R243608	24	36	8	84,55	2
103	N3R243610	24	36	10	89,93	2
104	N3R243612	24	36	12	95,32	2
105	N3R243616	24	36	16	106,09	2
106	N3R243620	24	36	20	116,87	2
107	N3R301606	30	16	6	47,62	2
108	N3R301608	30	16	8	51,75	2
109	N3R301610	30	16	10	55,88	2
110	N3R301612	30	16	12	60,01	2
111	N3R301616	30	16	16	68,27	2
112	N3R302006	30	20	6	57,48	2
113	N3R302008	30	20	8	61,97	2
114	N3R302010	30	20	10	66,46	2
115	N3R302012	30	20	12	70,94	2
116	N3R302016	30	20	16	79,92	2
117	N3R302020	30	20	20	88,90	2
118	N3R302406	30	24	6	67,34	2
119	N3R302408	30	24	8	72,18	2
120	N3R302410	30	24	10	77,03	2
121	N3R302412	30	24	12	81,88	2
122	N3R302416	30	24	16	91,57	2
123	N3R302420	30	24	20	101,27	2
124	N3R303006	30	30	6	82,12	2
125	N3R303008	30	30	8	87,51	2
126	N3R303010	30	30	10	92,89	2
127	N3R303012	30	30	12	98,28	2
128	N3R303016	30	30	16	109,05	2
129	N3R303020	30	30	20	119,83	2
130	N3R303606	30	36	6	97,00	2
131	N3R303608	30	36	8	102,93	2
132	N3R303610	30	36	10	108,85	2
133	N3R303612	30	36	12	114,78	2
134	N3R303616	30	36	16	126,63	2
135	N3R303620	30	36	20	138,48	2
136	N3R362006	36	20	6	68,09	2
137	N3R362008	36	20	8	73,12	2
138	N3R362010	36	20	10	78,15	2
139	N3R362012	36	20	12	83,17	2
140	N3R362016	36	20	16	93,23	2
141	N3R362020	36	20	20	103,28	2
142	N3R362406	36	24	6	79,78	2
143	N3R362408	36	24	8	85,17	2
144	N3R362410	36	24	10	90,55	2
145	N3R362412	36	24	12	95,94	2
146	N3R362416	36	24	16	106,71	2
147	N3R362420	36	24	20	117,48	2
148	N3R363006	36	30	6	97,31	2
149	N3R363008	36	30	8	103,24	2
150	N3R363010	36	30	10	109,16	2
151	N3R363012	36	30	12	115,09	2
152	N3R363016	36	30	16	126,94	2
153	N3R363020	36	30	20	138,79	2
154	N3R363606	36	36	6	114,94	2
155	N3R363608	36	36	8	121,41	2
156	N3R363610	36	36	10	127,87	2
157	N3R363612	36	36	12	134,33	2
158	N3R363616	36	36	16	147,26	2
159	N3R363620	36	36	20	160,19	2
160	N3R422406	42	24	6	92,13	2
161	N3R422408	42	24	8	98,05	2
162	N3R422410	42	24	10	103,98	2
163	N3R422412	42	24	12	109,90	2
164	N3R422416	42	24	16	121,75	2
165	N3R422420	42	24	20	133,60	2
166	N3R423006	42	30	6	112,41	2
167	N3R423008	42	30	8	118,87	2
168	N3R423010	42	30	10	125,33	2
169	N3R423012	42	30	12	131,80	2
170	N3R423016	42	30	16	144,73	2
171	N3R423020	42	30	20	157,65	2
172	N3R423606	42	36	6	132,78	2
173	N3R423608	42	36	8	139,79	2
174	N3R423610	42	36	10	146,79	2
175	N3R423612	42	36	12	153,79	2
176	N3R423616	42	36	16	167,80	2
177	N3R423620	42	36	20	181,80	2
178	N3R482406	48	24	6	104,62	3
179	N3R482408	48	24	8	111,08	3
180	N3R482410	48	24	10	117,55	3
181	N3R482412	48	24	12	124,01	3
182	N3R482416	48	24	16	136,94	3
183	N3R482420	48	24	20	149,87	3
184	N3R483006	48	30	6	127,65	3
185	N3R483008	48	30	8	134,65	3
186	N3R483010	48	30	10	141,65	3
187	N3R483012	48	30	12	148,65	3
188	N3R483016	48	30	16	162,66	3
189	N3R483020	48	30	20	176,66	3
190	N3R483606	48	36	6	150,77	3
191	N3R483608	48	36	8	158,31	3
192	N3R483610	48	36	10	165,85	3
193	N3R483612	48	36	12	173,39	3
194	N3R483616	48	36	16	188,48	3
195	N3R483620	48	36	20	203,56	3
196	N3R602406	60	24	6	129,32	3
197	N3R602408	60	24	8	136,86	3
198	N3R602410	60	24	10	144,40	3
199	N3R602412	60	24	12	151,94	3
200	N3R602416	60	24	16	167,02	3
201	N3R602420	60	24	20	182,10	3
202	N3R603006	60	30	6	157,84	3
203	N3R603008	60	30	8	165,92	3
204	N3R603010	60	30	10	174,00	3
205	N3R603012	60	30	12	182,08	3
206	N3R603016	60	30	16	198,24	3
207	N3R603020	60	30	20	214,40	3
208	N3R603606	60	36	6	186,46	3
209	N3R603608	60	36	8	195,07	3
210	N3R603610	60	36	10	203,69	3
211	N3R603612	60	36	12	212,31	3
212	N3R603616	60	36	16	229,55	3
213	N3R603620	60	36	20	246,78	3
214	N3R722406	72	24	6	154,01	3
215	N3R722408	72	24	8	162,63	3
216	N3R722410	72	24	10	171,25	3
217	N3R722412	72	24	12	179,87	3
218	N3R722416	72	24	16	197,10	3
219	N3R722420	72	24	20	214,34	3
220	N3R723006	72	30	6	188,03	3
221	N3R723008	72	30	8	197,18	3
222	N3R723010	72	30	10	206,34	3
223	N3R723012	72	30	12	215,50	3
224	N3R723016	72	30	16	233,81	3
225	N3R723020	72	30	20	252,13	3
226	N3R723606	72	36	6	222,14	3
227	N3R723608	72	36	8	231,83	3
228	N3R723610	72	36	10	241,53	3
229	N3R723612	72	36	12	251,23	3
230	N3R723616	72	36	16	270,62	3
231	N3R723620	72	36	20	290,01	3
