EDI Electrical Enclosures

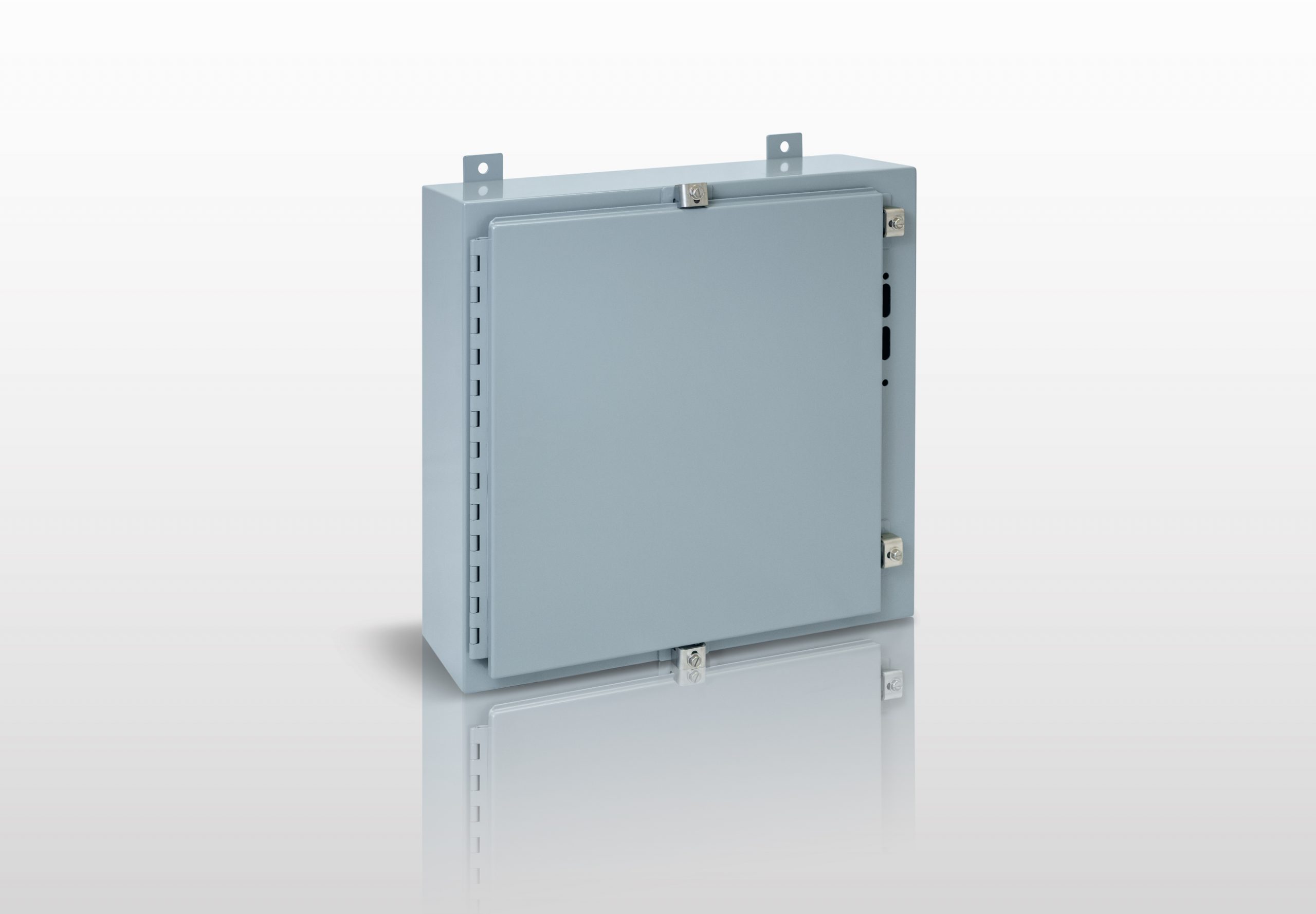

NEMA Clamp Style, 4 DISCONNECT ENCLOSURE WITH CLAMPS

SERIES N4D

• Suitable for housing the following flange mount disconnect switches:
1) Allen-Bradley 1494V.
2) ABB Controls variable depth.
3) Cutler-Hammer C361 & C371.
4) General Electric STDA.
5) I-T-E Max-Flex.
6) Square D Class 9422
• Continuously hinged door allows for easy access to internal components
• Designed for indoor use and will protect components from falling dust, dirt, oil, and hose directed water

• NEMA Type Clamp Style, 4
• CSA Type Clamp Style, 4
• UL Type Clamp Style, 4

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with seam welds that are ground smooth, except door clamps and clamp bases, hinge, and mounting bracket components which are 304 stainless steel to provide superior corrosion resistance on wear points
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

N4D.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS
1	N4D201306	20	13,38	6	28,24	4
2	N4D201308	20	13,38	8	31,24	4
3	N4D201310	20	13,38	10	34,24	4
4	N4D201312	20	13,38	12	37,23	4
5	N4D201706	20	17,38	6	35,05	4
6	N4D201708	20	17,38	8	38,40	4
7	N4D201710	20	17,38	10	41,76	4
8	N4D201712	20	17,38	12	45,12	4
9	N4D201716	20	17,38	16	51,83	4
10	N4D202106	20	21,38	6	41,85	4
11	N4D202108	20	21,38	8	45,57	4
12	N4D202110	20	21,38	10	49,28	4
13	N4D202112	20	21,38	12	53,00	4
14	N4D202116	20	21,38	16	60,43	4
15	N4D202120	20	21,38	20	67,86	4
16	N4D202506	20	25,38	6	48,66	4
17	N4D202508	20	25,38	8	52,73	4
18	N4D202510	20	25,38	10	56,81	4
19	N4D202512	20	25,38	12	60,88	4
20	N4D202516	20	25,38	16	69,03	4
21	N4D202520	20	25,38	20	77,18	4
22	N4D203106	20	31,38	6	59,16	6
23	N4D203108	20	31,38	8	63,77	6
24	N4D203110	20	31,38	10	68,38	6
25	N4D203112	20	31,38	12	73,00	6
26	N4D203116	20	31,38	16	82,22	6
27	N4D203120	20	31,38	20	91,45	6
28	N4D203706	20	37,38	6	69,46	6
29	N4D203708	20	37,38	8	74,61	6
30	N4D203710	20	37,38	10	79,76	6
31	N4D203712	20	37,38	12	84,92	6
32	N4D203716	20	37,38	16	95,22	6
33	N4D203720	20	37,38	20	105,52	6
34	N4D241306	24	13,38	6	33,21	5
35	N4D241308	24	13,38	8	36,56	5
36	N4D241310	24	13,38	10	39,92	5
37	N4D241312	24	13,38	12	43,27	5
38	N4D241706	24	17,38	6	41,23	5
39	N4D241708	24	17,38	8	44,95	5
40	N4D241710	24	17,38	10	48,66	5
41	N4D241712	24	17,38	12	52,38	5
42	N4D241716	24	17,38	16	59,81	5
43	N4D242106	24	21,38	6	49,26	5
44	N4D242108	24	21,38	8	53,33	5
45	N4D242110	24	21,38	10	57,41	5
46	N4D242112	24	21,38	12	61,48	5
47	N4D242116	24	21,38	16	69,63	5
48	N4D242120	24	21,38	20	77,78	5
49	N4D242506	24	25,38	6	57,28	5
50	N4D242508	24	25,38	8	61,72	5
51	N4D242510	24	25,38	10	66,15	5
52	N4D242512	24	25,38	12	70,58	5
53	N4D242516	24	25,38	16	79,45	5
54	N4D242520	24	25,38	20	88,32	5
55	N4D243106	24	31,38	6	69,61	7
56	N4D243108	24	31,38	8	74,59	7
57	N4D243110	24	31,38	10	79,56	7
58	N4D243112	24	31,38	12	84,53	7
59	N4D243116	24	31,38	16	94,47	7
60	N4D243120	24	31,38	20	104,42	7
61	N4D243706	24	37,38	6	81,75	7
62	N4D243708	24	37,38	8	87,26	7
63	N4D243710	24	37,38	10	92,77	7
64	N4D243712	24	37,38	12	98,28	7
65	N4D243716	24	37,38	16	109,30	7
66	N4D243720	24	37,38	20	120,32	7
67	N4D301706	30	17,38	6	50,29	5
68	N4D301708	30	17,38	8	54,54	5
69	N4D301710	30	17,38	10	58,80	5
70	N4D301712	30	17,38	12	63,05	5
71	N4D301716	30	17,38	16	71,56	5
72	N4D302106	30	21,38	6	60,15	5
73	N4D302108	30	21,38	8	64,76	5
74	N4D302110	30	21,38	10	69,37	5
75	N4D302112	30	21,38	12	73,98	5
76	N4D302116	30	21,38	16	83,21	5
77	N4D302120	30	21,38	20	92,43	5
78	N4D302506	30	25,38	6	70,00	5
79	N4D302508	30	25,38	8	74,97	5
80	N4D302510	30	25,38	10	79,95	5
81	N4D302512	30	25,38	12	84,92	5
82	N4D302516	30	25,38	16	94,86	5
83	N4D302520	30	25,38	20	104,81	5
84	N4D303106	30	31,38	6	85,08	7
85	N4D303108	30	31,38	8	90,59	7
86	N4D303110	30	31,38	10	96,10	7
87	N4D303112	30	31,38	12	101,61	7
88	N4D303116	30	31,38	16	112,63	7
89	N4D303120	30	31,38	20	123,65	7
90	N4D303706	30	37,38	6	99,96	7
91	N4D303708	30	37,38	8	106,01	7
92	N4D303710	30	37,38	10	112,06	7
93	N4D303712	30	37,38	12	118,11	7
94	N4D303716	30	37,38	16	130,21	7
95	N4D303720	30	37,38	20	142,31	7
96	N4D362106	36	21,38	6	71,13	5
97	N4D362108	36	21,38	8	76,28	5
98	N4D362110	36	21,38	10	81,43	5
99	N4D362112	36	21,38	12	86,58	5
100	N4D362116	36	21,38	16	96,89	5
101	N4D362120	36	21,38	20	107,19	5
102	N4D362506	36	25,38	6	82,82	5
103	N4D362508	36	25,38	8	88,33	5
104	N4D362510	36	25,38	10	93,84	5
105	N4D362512	36	25,38	12	99,35	5
106	N4D362516	36	25,38	16	110,37	5
107	N4D362520	36	25,38	20	121,39	5
108	N4D363106	36	31,38	6	100,64	7
109	N4D363108	36	31,38	8	106,69	7
110	N4D363110	36	31,38	10	112,74	7
111	N4D363112	36	31,38	12	118,79	7
112	N4D363116	36	31,38	16	130,89	7
113	N4D363120	36	31,38	20	142,99	7
114	N4D363706	36	37,38	6	118,27	7
115	N4D363708	36	37,38	8	124,86	7
116	N4D363710	36	37,38	10	131,45	7
117	N4D363712	36	37,38	12	138,04	7
118	N4D363716	36	37,38	16	151,21	7
119	N4D363720	36	37,38	20	164,39	7
120	N4D422506	42	25,38	6	95,68	6
121	N4D422508	42	25,38	8	101,73	6
122	N4D422510	42	25,38	10	107,78	6
123	N4D422512	42	25,38	12	113,83	6
124	N4D422516	42	25,38	16	125,93	6
125	N4D422520	42	25,38	20	138,03	6
126	N4D423106	42	31,38	6	116,26	8
127	N4D423108	42	31,38	8	122,84	8
128	N4D423110	42	31,38	10	129,43	8
129	N4D423112	42	31,38	12	136,02	8
130	N4D423116	42	31,38	16	149,19	8
131	N4D423120	42	31,38	20	162,37	8
132	N4D423706	42	37,38	6	136,63	8
133	N4D423708	42	37,38	8	143,76	8
134	N4D423710	42	37,38	10	150,89	8
135	N4D423712	42	37,38	12	158,01	8
136	N4D423716	42	37,38	16	172,26	8
137	N4D423720	42	37,38	20	186,52	8
138	N4D482506	48	25,38	6	108,40	6
139	N4D482508	48	25,38	8	114,99	6
140	N4D482510	48	25,38	10	121,58	6
141	N4D482512	48	25,38	12	128,17	6
142	N4D482516	48	25,38	16	141,34	6
143	N4D482520	48	25,38	20	154,52	6
144	N4D483106	48	31,38	6	131,72	8
145	N4D483108	48	31,38	8	138,85	8
146	N4D483110	48	31,38	10	145,98	8
147	N4D483112	48	31,38	12	153,10	8
148	N4D483116	48	31,38	16	167,35	8
149	N4D483120	48	31,38	20	181,61	8
150	N4D483706	48	37,38	6	154,85	8
151	N4D483708	48	37,38	8	162,51	8
152	N4D483710	48	37,38	10	170,18	8
153	N4D483712	48	37,38	12	177,84	8
154	N4D483716	48	37,38	16	193,17	8
155	N4D483720	48	37,38	20	208,50	8
156	N4D602506	60	25,38	6	133,99	7
157	N4D602508	60	25,38	8	141,65	7
158	N4D602510	60	25,38	10	149,32	7
159	N4D602512	60	25,38	12	156,98	7
160	N4D602516	60	25,38	16	172,31	7
161	N4D602520	60	25,38	20	187,64	7
162	N4D603106	60	31,38	6	162,80	9
163	N4D603108	60	31,38	8	171,00	9
164	N4D603110	60	31,38	10	179,21	9
165	N4D603112	60	31,38	12	187,41	9
166	N4D603116	60	31,38	16	203,82	9
167	N4D603120	60	31,38	20	220,23	9
168	N4D603706	60	37,38	6	191,42	9
169	N4D603708	60	37,38	8	200,16	9
170	N4D603710	60	37,38	10	208,90	9
171	N4D603712	60	37,38	12	217,65	9
172	N4D603716	60	37,38	16	235,13	9
173	N4D603720	60	37,38	20	252,62	9
174	N4D722506	72	25,38	6	159,43	7
175	N4D722508	72	25,38	8	168,17	7
176	N4D722510	72	25,38	10	176,91	7
177	N4D722512	72	25,38	12	185,65	7
178	N4D722516	72	25,38	16	203,14	7
179	N4D722520	72	25,38	20	220,62	7
180	N4D723106	72	31,38	6	193,73	9
181	N4D723108	72	31,38	8	203,01	9
182	N4D723110	72	31,38	10	212,30	9
183	N4D723112	72	31,38	12	221,58	9
184	N4D723116	72	31,38	16	240,14	9
185	N4D723120	72	31,38	20	258,70	9
186	N4D723706	72	37,38	6	227,85	9
187	N4D723708	72	37,38	8	237,67	9
188	N4D723710	72	37,38	10	247,49	9
189	N4D723712	72	37,38	12	257,30	9
190	N4D723716	72	37,38	16	276,94	9
191	N4D723720	72	37,38	20	296,58	9
	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS
