EDI Electrical Enclosures

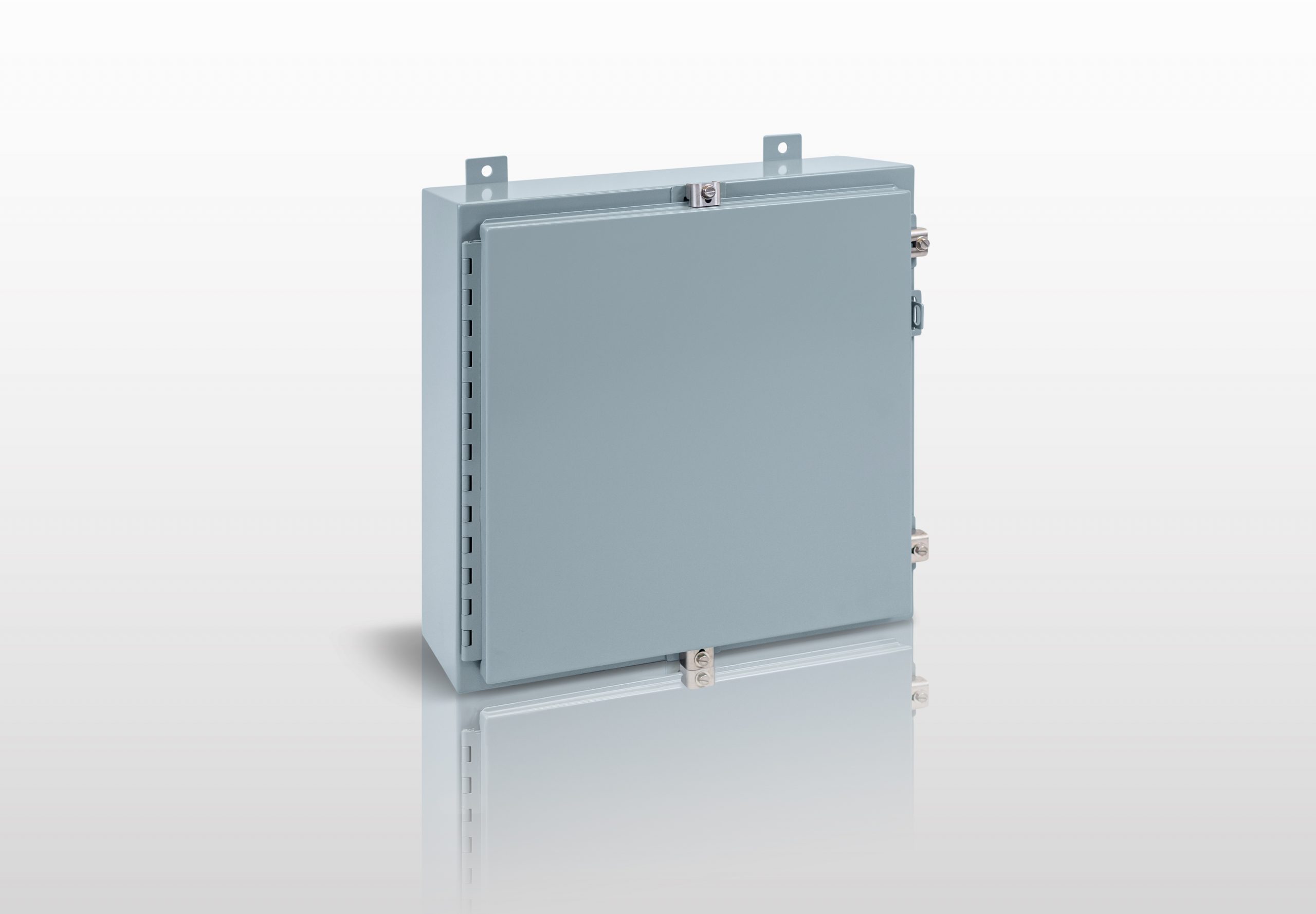

NEMA Clamp Style, 4 SINGLE DOOR ENCLOSURE WITH CLAMPS

SERIES N4

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Continuously hinged door allows for easy access to internal components
• Designed for indoor or outdoor use and will protect components from dust, dirt, oil, and hose directed water

• NEMA Type Clamp Style, 4
• CSA Type Clamp Style, 4
• UL Type Clamp Style, 4

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with seam welds that are ground smooth, except padlocking means, door clamps and clamp bases, hinge, and mounting bracket components which are 304 stainless steel to provide superior corrosion resistance on wear points
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

N4.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS
1	N4121206	12	12	6	17,50	4
2	N4121208	12	12	8	19,65	4
3	N4121210	12	12	10	21,80	4
4	N4121212	12	12	12	23,96	4
5	N4121606	12	16	6	21,86	4
6	N4121608	12	16	8	24,37	4
7	N4121610	12	16	10	26,89	4
8	N4121612	12	16	12	29,40	4
9	N4122006	12	20	6	26,22	4
10	N4122008	12	20	8	29,09	4
11	N4122010	12	20	10	31,97	4
12	N4122012	12	20	12	34,84	4
13	N4122406	12	24	6	30,58	4
14	N4122408	12	24	8	33,82	4
15	N4122410	12	24	10	37,05	4
16	N4122412	12	24	12	40,28	4
17	N4161206	16	12	6	22,06	4
18	N4161208	16	12	8	24,58	4
19	N4161210	16	12	10	27,09	4
20	N4161212	16	12	12	29,61	4
21	N4161606	16	16	6	27,65	4
22	N4161608	16	16	8	30,52	4
23	N4161610	16	16	10	33,39	4
24	N4161612	16	16	12	36,27	4
25	N4161616	16	16	16	42,01	4
26	N4162006	16	20	6	33,23	4
27	N4162008	16	20	8	36,46	4
28	N4162010	16	20	10	39,70	4
29	N4162012	16	20	12	42,93	4
30	N4162016	16	20	16	49,39	4
31	N4162406	16	24	6	38,82	4
32	N4162408	16	24	8	42,41	4
33	N4162410	16	24	10	46,00	4
34	N4162412	16	24	12	49,59	4
35	N4162416	16	24	16	56,77	4
36	N4163006	16	30	6	47,48	6
37	N4163008	16	30	8	51,61	6
38	N4163010	16	30	10	55,74	6
39	N4163012	16	30	12	59,87	6
40	N4163016	16	30	16	68,13	6
41	N4201206	20	12	6	26,63	4
42	N4201208	20	12	8	29,51	4
43	N4201210	20	12	10	32,38	4
44	N4201212	20	12	12	35,25	4
45	N4201606	20	16	6	33,44	4
46	N4201608	20	16	8	36,67	4
47	N4201610	20	16	10	39,90	4
48	N4201612	20	16	12	43,13	4
49	N4201616	20	16	16	49,60	4
50	N4202006	20	20	6	40,24	4
51	N4202008	20	20	8	43,83	4
52	N4202010	20	20	10	47,42	4
53	N4202012	20	20	12	51,02	4
54	N4202016	20	20	16	58,20	4
55	N4202020	20	20	20	65,38	4
56	N4202406	20	24	6	47,05	4
57	N4202408	20	24	8	51,00	4
58	N4202410	20	24	10	54,95	4
59	N4202412	20	24	12	58,90	4
60	N4202416	20	24	16	66,80	4
61	N4202420	20	24	20	74,70	4
62	N4203006	20	30	6	57,55	6
63	N4203008	20	30	8	62,04	6
64	N4203010	20	30	10	66,52	6
65	N4203012	20	30	12	71,01	6
66	N4203016	20	30	16	79,99	6
67	N4203020	20	30	20	88,97	6
68	N4203606	20	36	6	67,85	6
69	N4203608	20	36	8	72,88	6
70	N4203610	20	36	10	77,91	6
71	N4203612	20	36	12	82,93	6
72	N4203616	20	36	16	92,99	6
73	N4203620	20	36	20	103,04	6
74	N4241206	24	12	6	31,35	5
75	N4241208	24	12	8	34,58	5
76	N4241210	24	12	10	37,81	5
77	N4241212	24	12	12	41,04	5
78	N4241606	24	16	6	39,37	5
79	N4241608	24	16	8	42,96	5
80	N4241610	24	16	10	46,56	5
81	N4241612	24	16	12	50,15	5
82	N4241616	24	16	16	57,33	5
83	N4242006	24	20	6	47,40	5
84	N4242008	24	20	8	51,35	5
85	N4242010	24	20	10	55,30	5
86	N4242012	24	20	12	59,25	5
87	N4242016	24	20	16	67,15	5
88	N4242020	24	20	20	75,05	5
89	N4242406	24	24	6	55,43	5
90	N4242408	24	24	8	59,73	5
91	N4242410	24	24	10	64,04	5
92	N4242412	24	24	12	68,35	5
93	N4242416	24	24	16	76,97	5
94	N4242420	24	24	20	85,59	5
95	N4243006	24	30	6	67,76	7
96	N4243008	24	30	8	72,60	7
97	N4243010	24	30	10	77,45	7
98	N4243012	24	30	12	82,30	7
99	N4243016	24	30	16	92,00	7
100	N4243020	24	30	20	101,69	7
101	N4243606	24	36	6	79,89	7
102	N4243608	24	36	8	85,28	7
103	N4243610	24	36	10	90,66	7
104	N4243612	24	36	12	96,05	7
105	N4243616	24	36	16	106,82	7
106	N4243620	24	36	20	117,60	7
107	N4301606	30	16	6	48,06	5
108	N4301608	30	16	8	52,19	5
109	N4301610	30	16	10	56,32	5
110	N4301612	30	16	12	60,45	5
111	N4301616	30	16	16	68,71	5
112	N4302006	30	20	6	57,92	5
113	N4302008	30	20	8	62,40	5
114	N4302010	30	20	10	66,89	5
115	N4302012	30	20	12	71,38	5
116	N4302016	30	20	16	80,36	5
117	N4302020	30	20	20	89,34	5
118	N4302406	30	24	6	67,77	5
119	N4302408	30	24	8	72,62	5
120	N4302410	30	24	10	77,47	5
121	N4302412	30	24	12	82,32	5
122	N4302416	30	24	16	92,01	5
123	N4302420	30	24	20	101,71	5
124	N4303006	30	30	6	82,85	7
125	N4303008	30	30	8	88,24	7
126	N4303010	30	30	10	93,62	7
127	N4303012	30	30	12	99,01	7
128	N4303016	30	30	16	109,78	7
129	N4303020	30	30	20	120,56	7
130	N4303606	30	36	6	97,73	7
131	N4303608	30	36	8	103,66	7
132	N4303610	30	36	10	109,58	7
133	N4303612	30	36	12	115,51	7
134	N4303616	30	36	16	127,36	7
135	N4303620	30	36	20	139,21	7
136	N4362006	36	20	6	68,53	5
137	N4362008	36	20	8	73,56	5
138	N4362010	36	20	10	78,58	5
139	N4362012	36	20	12	83,61	5
140	N4362016	36	20	16	93,67	5
141	N4362020	36	20	20	103,72	5
142	N4362406	36	24	6	80,22	5
143	N4362408	36	24	8	85,60	5
144	N4362410	36	24	10	90,99	5
145	N4362412	36	24	12	96,38	5
146	N4362416	36	24	16	107,15	5
147	N4362420	36	24	20	117,92	5
148	N4363006	36	30	6	98,04	7
149	N4363008	36	30	8	103,97	7
150	N4363010	36	30	10	109,89	7
151	N4363012	36	30	12	115,82	7
152	N4363016	36	30	16	127,67	7
153	N4363020	36	30	20	139,52	7
154	N4363606	36	36	6	115,67	7
155	N4363608	36	36	8	122,14	7
156	N4363610	36	36	10	128,60	7
157	N4363612	36	36	12	135,06	7
158	N4363616	36	36	16	147,99	7
159	N4363620	36	36	20	160,92	7
160	N4422406	42	24	6	92,71	6
161	N4422408	42	24	8	98,64	6
162	N4422410	42	24	10	104,56	6
163	N4422412	42	24	12	110,49	6
164	N4422416	42	24	16	122,34	6
165	N4422420	42	24	20	134,19	6
166	N4423006	42	30	6	113,28	8
167	N4423008	42	30	8	119,75	8
168	N4423010	42	30	10	126,21	8
169	N4423012	42	30	12	132,67	8
170	N4423016	42	30	16	145,60	8
171	N4423020	42	30	20	158,53	8
172	N4423606	42	36	6	133,66	8
173	N4423608	42	36	8	140,66	8
174	N4423610	42	36	10	147,66	8
175	N4423612	42	36	12	154,67	8
176	N4423616	42	36	16	168,67	8
177	N4423620	42	36	20	182,68	8
178	N4482406	48	24	6	105,06	6
179	N4482408	48	24	8	111,52	6
180	N4482410	48	24	10	117,99	6
181	N4482412	48	24	12	124,45	6
182	N4482416	48	24	16	137,38	6
183	N4482420	48	24	20	150,30	6
184	N4483006	48	30	6	128,38	8
185	N4483008	48	30	8	135,38	8
186	N4483010	48	30	10	142,38	8
187	N4483012	48	30	12	149,38	8
188	N4483016	48	30	16	163,39	8
189	N4483020	48	30	20	177,39	8
190	N4483606	48	36	6	151,50	8
191	N4483608	48	36	8	159,04	8
192	N4483610	48	36	10	166,58	8
193	N4483612	48	36	12	174,12	8
194	N4483616	48	36	16	189,21	8
195	N4483620	48	36	20	204,29	8
196	N4602406	60	24	6	129,90	7
197	N4602408	60	24	8	137,44	7
198	N4602410	60	24	10	144,98	7
199	N4602412	60	24	12	152,52	7
200	N4602416	60	24	16	167,60	7
201	N4602420	60	24	20	182,69	7
202	N4603006	60	30	6	158,71	9
203	N4603008	60	30	8	166,79	9
204	N4603010	60	30	10	174,87	9
205	N4603012	60	30	12	182,95	9
206	N4603016	60	30	16	199,11	9
207	N4603020	60	30	20	215,27	9
208	N4603606	60	36	6	187,33	9
209	N4603608	60	36	8	195,95	9
210	N4603610	60	36	10	204,57	9
211	N4603612	60	36	12	213,19	9
212	N4603616	60	36	16	230,42	9
213	N4603620	60	36	20	247,66	9
214	N4722406	72	24	6	154,59	7
215	N4722408	72	24	8	163,21	7
216	N4722410	72	24	10	171,83	7
217	N4722412	72	24	12	180,45	7
218	N4722416	72	24	16	197,69	7
219	N4722420	72	24	20	214,92	7
220	N4723006	72	30	6	188,90	9
221	N4723008	72	30	8	198,06	9
222	N4723010	72	30	10	207,22	9
223	N4723012	72	30	12	216,37	9
224	N4723016	72	30	16	234,69	9
225	N4723020	72	30	20	253,00	9
226	N4723606	72	36	6	223,01	9
227	N4723608	72	36	8	232,71	9
228	N4723610	72	36	10	242,41	9
229	N4723612	72	36	12	252,10	9
230	N4723616	72	36	16	271,49	9
231	N4723620	72	36	20	290,88	9
	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS

NEMA Clamp Style, 4 SINGLE DOOR ENCLOSURE WITH CLAMPS

SERIES N4

N4

Type 4

NEMA Trough, 4 TROUGH ENCLOSURE WITH HINGED COVER AND CLAMPS

NEMA Trough, 4 TROUGH ENCLOSURE WITH HINGED COVER AND QUARTER TURN LATCHES

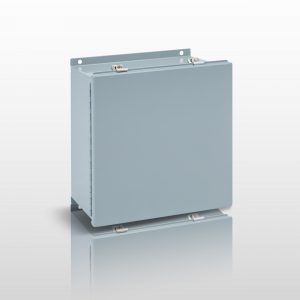

NEMA Junction Box, 4 JIC ENCLOSURE WITH HINGED COVER

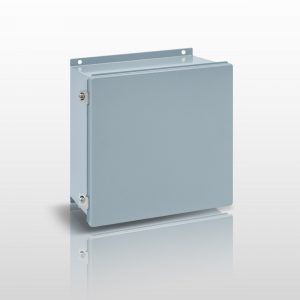

NEMA Junction Box, 4 JIC ENCLOSURE WITH LIFT-OFF COVER

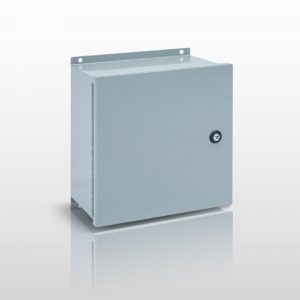

NEMA Junction Box, 4 JIC ENCLOSURE WITH HINGED COVER AND QUARTER TURN LATCHES

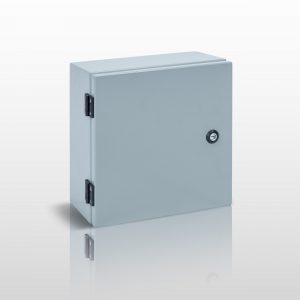

NEMA Junction Box, 4 IH ENCLOSURE WITH QUARTER TURN LATCHES

Family Clamp Style

NEMA Clamp Style, 3R (316L STAINLESS STEEL) SINGLE DOOR ENCLOSURE WITH CLAMPS

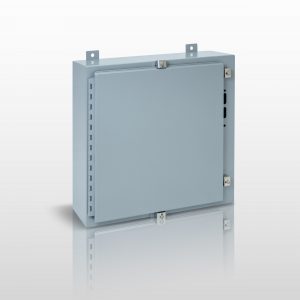

NEMA Clamp Style, 4 DISCONNECT ENCLOSURE WITH CLAMPS

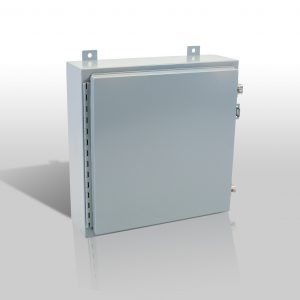

NEMA Clamp Style, 12 SINGLE DOOR ENCLOSURE WITH CLAMPS
