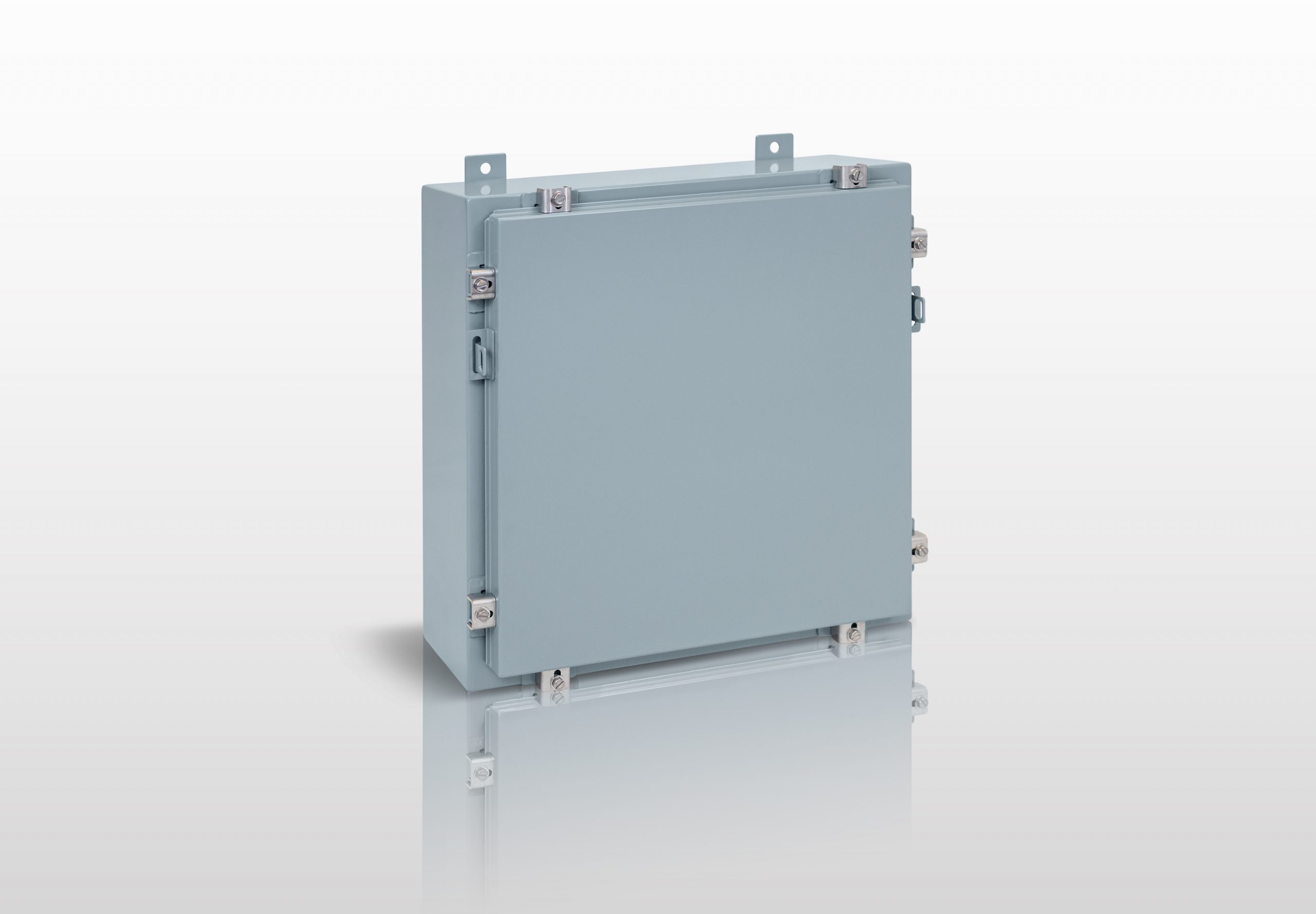

NEMA Clamp Style, 4 SINGLE DOOR ENCLOSURE WITH LIFT-OFF DOOR AND CLAMPS

SERIES NL4

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Removable door allows for easy access to internal components when space surrounding enclosure is limited
• Designed for indoor use and will protect components from falling dust, dirt, oil, and hose directed water

• NEMA Type Clamp Style, 4
• CSA Type Clamp Style, 4
• UL Type Clamp Style, 4

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with seam welds that are ground smooth, except padlocking means, door clamps and clamp bases, and mounting bracket components which are 304 stainless steel to provide superior corrosion resistance on wear points
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

NL4.pdf

wdt_ID	PART NUMBER	HEIGHT	WEIGHT	DEPTH	WEIGHT	CLAMPS
1	NL4121206	12		6	17,79	6
2	NL4121208	12		8	19,94	6
3	NL4121210	12		10	22,10	6
4	NL4121212	12		12	24,25	6
5	NL4121606	12		6	22,15	6
6	NL4121608	12		8	24,66	6
7	NL4121610	12		10	27,18	6
8	NL4121612	12		12	29,69	6
9	NL4122006	12		6	26,51	6
10	NL4122008	12		8	29,39	6
11	NL4122010	12		10	32,26	6
12	NL4122012	12		12	35,13	6
13	NL4122406	12		6	30,88	6
14	NL4122408	12		8	34,11	6
15	NL4122410	12		10	37,34	6
16	NL4122412	12		12	40,57	6
17	NL4161206	16		6	22,36	6
18	NL4161208	16		8	24,87	6
19	NL4161210	16		10	27,38	6
20	NL4161212	16		12	29,90	6
21	NL4161606	16		6	27,94	6
22	NL4161608	16		8	30,81	6
23	NL4161610	16		10	33,69	6
24	NL4161612	16		12	36,56	6
25	NL4161616	16		16	42,30	6
26	NL4162006	16		6	33,52	6
27	NL4162008	16		8	36,76	6
28	NL4162010	16		10	39,99	6
29	NL4162012	16		12	43,22	6
30	NL4162016	16		16	49,68	6
31	NL4162406	16		6	39,11	6
32	NL4162408	16		8	42,70	6
33	NL4162410	16		10	46,29	6
34	NL4162412	16		12	49,88	6
35	NL4162416	16		16	57,06	6
36	NL4163006	16		6	47,78	8
37	NL4163008	16		8	51,91	8
38	NL4163010	16		10	56,04	8
39	NL4163012	16		12	60,16	8
40	NL4163016	16		16	68,42	8
41	NL4201206	20		6	26,92	6
42	NL4201208	20		8	29,80	6
43	NL4201210	20		10	32,67	6
44	NL4201212	20		12	35,54	6
45	NL4201606	20		6	33,73	6
46	NL4201608	20		8	36,96	6
47	NL4201610	20		10	40,19	6
48	NL4201612	20		12	43,43	6
49	NL4201616	20		16	49,89	6
50	NL4202006	20		6	40,53	6
51	NL4202008	20		8	44,13	6
52	NL4202010	20		10	47,72	6
53	NL4202012	20		12	51,31	6
54	NL4202016	20		16	58,49	6
55	NL4202020	20		20	65,67	6
56	NL4202406	20		6	47,34	6
57	NL4202408	20		8	51,29	6
58	NL4202410	20		10	55,24	6
59	NL4202412	20		12	59,19	6
60	NL4202416	20		16	67,09	6
61	NL4202420	20		20	74,99	6
62	NL4203006	20		6	57,84	8
63	NL4203008	20		8	62,33	8
64	NL4203010	20		10	66,82	8
65	NL4203012	20		12	71,31	8
66	NL4203016	20		16	80,28	8
67	NL4203020	20		20	89,26	8
68	NL4203606	20		6	68,14	8
69	NL4203608	20		8	73,17	8
70	NL4203610	20		10	78,20	8
71	NL4203612	20		12	83,23	8
72	NL4203616	20		16	93,28	8
73	NL4203620	20		20	103,33	8
74	NL4241206	24		6	31,79	8
75	NL4241208	24		8	35,02	8
76	NL4241210	24		10	38,25	8
77	NL4241212	24		12	41,48	8
78	NL4241606	24		6	39,81	8
79	NL4241608	24		8	43,40	8
80	NL4241610	24		10	46,99	8
81	NL4241612	24		12	50,58	8
82	NL4241616	24		16	57,77	8
83	NL4242006	24		6	47,84	8
84	NL4242008	24		8	51,79	8
85	NL4242010	24		10	55,74	8
86	NL4242012	24		12	59,69	8
87	NL4242016	24		16	67,59	8
88	NL4242020	24		20	75,49	8
89	NL4242406	24		6	55,86	8
90	NL4242408	24		8	60,17	8
91	NL4242410	24		10	64,48	8
92	NL4242412	24		12	68,79	8
93	NL4242416	24		16	77,41	8
94	NL4242420	24		20	86,03	8
95	NL4243006	24		6	68,19	10
96	NL4243008	24		8	73,04	10
97	NL4243010	24		10	77,89	10
98	NL4243012	24		12	82,74	10
99	NL4243016	24		16	92,43	10
100	NL4243020	24		20	102,13	10
101	NL4243606	24		6	80,33	10
102	NL4243608	24		8	85,72	10
103	NL4243610	24		10	91,10	10
104	NL4243612	24		12	96,49	10
105	NL4243616	24		16	107,26	10
106	NL4243620	24		20	118,04	10
107	NL4301606	30		6	48,50	8
108	NL4301608	30		8	52,63	8
109	NL4301610	30		10	56,76	8
110	NL4301612	30		12	60,89	8
111	NL4301616	30		16	69,14	8
112	NL4302006	30		6	58,35	8
113	NL4302008	30		8	62,84	8
114	NL4302010	30		10	67,33	8
115	NL4302012	30		12	71,82	8
116	NL4302016	30		16	80,80	8
117	NL4302020	30		20	89,77	8
118	NL4302406	30		6	68,21	8
119	NL4302408	30		8	73,06	8
120	NL4302410	30		10	77,91	8
121	NL4302412	30		12	82,75	8
122	NL4302416	30		16	92,45	8
123	NL4302420	30		20	102,15	8
124	NL4303006	30		6	83,29	10
125	NL4303008	30		8	88,68	10
126	NL4303010	30		10	94,06	10
127	NL4303012	30		12	99,45	10
128	NL4303016	30		16	110,22	10
129	NL4303020	30		20	120,99	10
130	NL4303606	30		6	98,17	10
131	NL4303608	30		8	104,10	10
132	NL4303610	30		10	110,02	10
133	NL4303612	30		12	115,95	10
134	NL4303616	30		16	127,80	10
135	NL4303620	30		20	139,65	10
136	NL4362006	36		6	68,97	8
137	NL4362008	36		8	73,99	8
138	NL4362010	36		10	79,02	8
139	NL4362012	36		12	84,05	8
140	NL4362016	36		16	94,10	8
141	NL4362020	36		20	104,16	8
142	NL4362406	36		6	80,66	8
143	NL4362408	36		8	86,04	8
144	NL4362410	36		10	91,43	8
145	NL4362412	36		12	96,81	8
146	NL4362416	36		16	107,59	8
147	NL4362420	36		20	118,36	8
148	NL4363006	36		6	98,48	10
149	NL4363008	36		8	104,41	10
150	NL4363010	36		10	110,33	10
151	NL4363012	36		12	116,26	10
152	NL4363016	36		16	128,11	10
153	NL4363020	36		20	139,96	10
154	NL4363606	36		6	116,11	10
155	NL4363608	36		8	122,57	10
156	NL4363610	36		10	129,04	10
157	NL4363612	36		12	135,50	10
158	NL4363616	36		16	148,43	10
159	NL4363620	36		20	161,36	10
160	NL4422406	42		6	93,29	10
161	NL4422408	42		8	99,22	10
162	NL4422410	42		10	105,14	10
163	NL4422412	42		12	111,07	10
164	NL4422416	42		16	122,92	10
165	NL4422420	42		20	134,77	10
166	NL4423006	42		6	113,87	12
167	NL4423008	42		8	120,33	12
168	NL4423010	42		10	126,79	12
169	NL4423012	42		12	133,26	12
170	NL4423016	42		16	146,19	12
171	NL4423020	42		20	159,11	12
172	NL4423606	42		6	134,24	12
173	NL4423608	42		8	141,25	12
174	NL4423610	42		10	148,25	12
175	NL4423612	42		12	155,25	12
176	NL4423616	42		16	169,26	12
177	NL4423620	42		20	183,26	12
178	NL4482406	48		6	105,64	10
179	NL4482408	48		8	112,11	10
180	NL4482410	48		10	118,57	10
181	NL4482412	48		12	125,03	10
182	NL4482416	48		16	137,96	10
183	NL4482420	48		20	150,89	10
184	NL4483006	48		6	128,96	12
185	NL4483008	48		8	135,96	12
186	NL4483010	48		10	142,97	12
187	NL4483012	48		12	149,97	12
188	NL4483016	48		16	163,97	12
189	NL4483020	48		20	177,98	12
190	NL4483606	48		6	152,09	12
191	NL4483608	48		8	159,63	12
192	NL4483610	48		10	167,17	12
193	NL4483612	48		12	174,71	12
194	NL4483616	48		16	189,79	12
195	NL4483620	48		20	204,87	12
196	NL4602406	60		6	130,63	12
197	NL4602408	60		8	138,17	12
198	NL4602410	60		10	145,71	12
199	NL4602412	60		12	153,25	12
200	NL4602416	60		16	168,33	12
201	NL4602420	60		20	183,42	12
202	NL4603006	60		6	159,44	14
203	NL4603008	60		8	167,52	14
204	NL4603010	60		10	175,60	14
205	NL4603012	60		12	183,68	14
206	NL4603016	60		16	199,84	14
207	NL4603020	60		20	216,00	14
208	NL4603606	60		6	188,06	14
209	NL4603608	60		8	196,68	14
210	NL4603610	60		10	205,30	14
211	NL4603612	60		12	213,92	14
212	NL4603616	60		16	231,15	14
213	NL4603620	60		20	248,39	14
214	NL4722406	72		6	155,32	12
215	NL4722408	72		8	163,94	12
216	NL4722410	72		10	172,56	12
217	NL4722412	72		12	181,18	12
218	NL4722416	72		16	198,42	12
219	NL4722420	72		20	215,65	12
220	NL4723006	72		6	189,63	14
221	NL4723008	72		8	198,79	14
222	NL4723010	72		10	207,95	14
223	NL4723012	72		12	217,10	14
224	NL4723016	72		16	235,42	14
225	NL4723020	72		20	253,73	14
226	NL4723606	72		6	223,74	14
227	NL4723608	72		8	233,44	14
228	NL4723610	72		10	243,14	14
229	NL4723612	72		12	252,83	14
230	NL4723616	72		16	272,22	14
231	NL4723620	72		20	291,61	14
