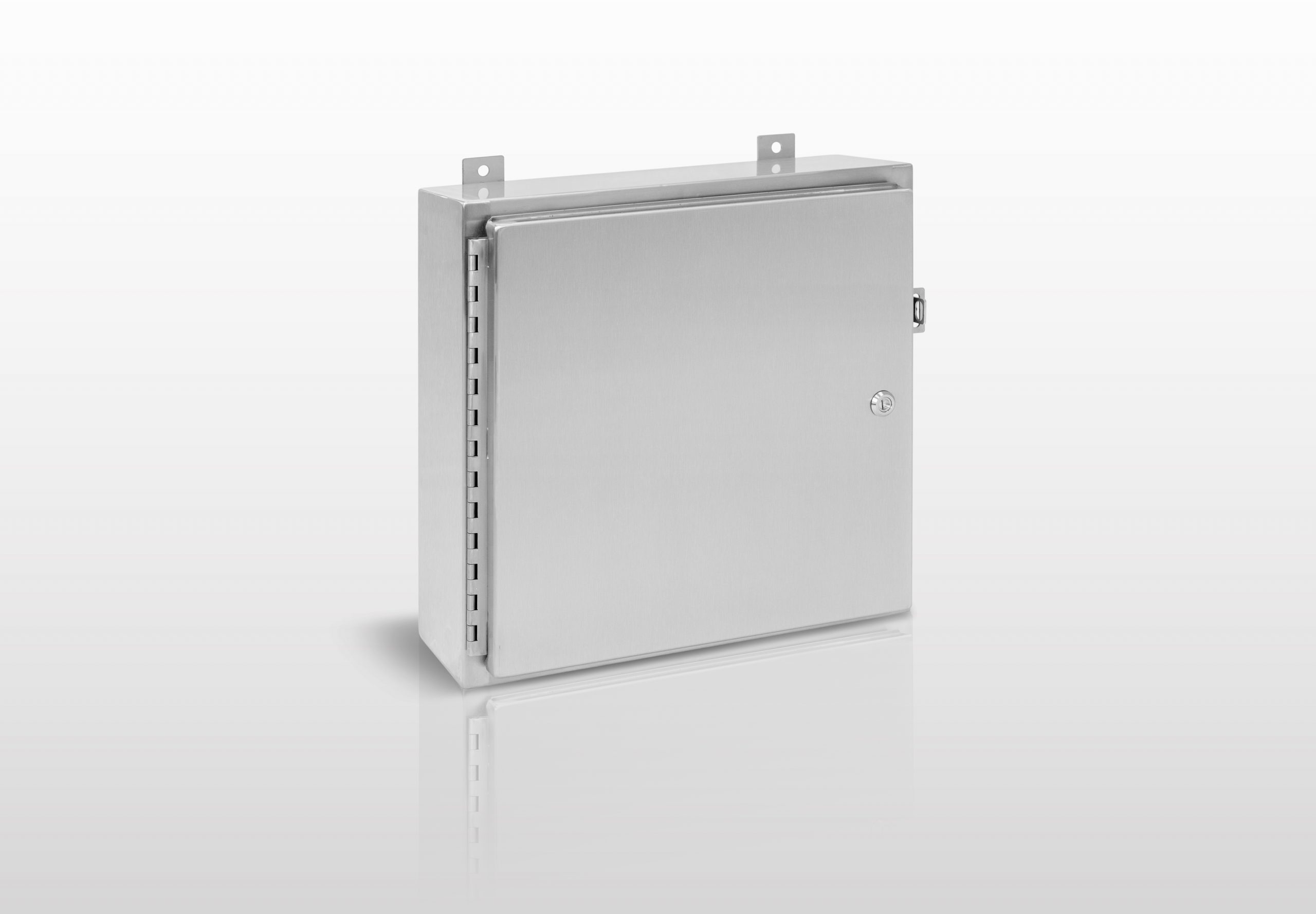

NEMA Clamp Style, 4X (304 STAINLESS STEEL) SINGLE DOOR ENCLOSURE WITH QUARTER TURN LATCHES

SERIES N4SQ

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Continuously hinged door allows for easy access to internal components
• Designed for indoor or outdoor use and will protect components from dust, dirt, oil, hose directed water, and other contaminants in highly corrosive enviroments or when sanitary conditions are a requirement

• NEMA Type Clamp Style, 4X
• CSA Type Clamp Style, 4X
• UL Type Clamp Style, 4X

TRY OUR CONFIGURATOR

• Enclosure bodies fabricated from 14 gauge Type 304 stainless steel with seam welds that are ground smooth
• Door is also fabricated from 14 gauge Type 304 stainless steel
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Door is secured with one or more stainless steel quarter turn latches
• Enclosure exterior polished to a #4 finish
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

N4SQ.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT
1	N4SQ121206	12	12	6	17,08
2	N4SQ121208	12	12	8	19,24
3	N4SQ121210	12	12	10	21,39
4	N4SQ121212	12	12	12	23,55
5	N4SQ121606	12	16	6	21,45
6	N4SQ121608	12	16	8	23,96
7	N4SQ121610	12	16	10	26,48
8	N4SQ121612	12	16	12	28,99
9	N4SQ122006	12	20	6	25,81
10	N4SQ122008	12	20	8	28,68
11	N4SQ122010	12	20	10	31,56
12	N4SQ122012	12	20	12	34,43
13	N4SQ122406	12	24	6	30,17
14	N4SQ122408	12	24	8	33,41
15	N4SQ122410	12	24	10	36,64
16	N4SQ122412	12	24	12	39,87
17	N4SQ161206	16	12	6	21,65
18	N4SQ161208	16	12	8	24,17
19	N4SQ161210	16	12	10	26,68
20	N4SQ161212	16	12	12	29,19
21	N4SQ161606	16	16	6	27,24
22	N4SQ161608	16	16	8	30,11
23	N4SQ161610	16	16	10	32,98
24	N4SQ161612	16	16	12	35,86
25	N4SQ161616	16	16	16	41,60
26	N4SQ162006	16	20	6	32,82
27	N4SQ162008	16	20	8	36,05
28	N4SQ162010	16	20	10	39,29
29	N4SQ162012	16	20	12	42,52
30	N4SQ162016	16	20	16	48,98
31	N4SQ162406	16	24	6	38,41
32	N4SQ162408	16	24	8	42,00
33	N4SQ162410	16	24	10	45,59
34	N4SQ162412	16	24	12	49,18
35	N4SQ162416	16	24	16	56,36
36	N4SQ163006	16	30	6	46,78
37	N4SQ163008	16	30	8	50,91
38	N4SQ163010	16	30	10	55,04
39	N4SQ163012	16	30	12	59,17
40	N4SQ163016	16	30	16	67,43
41	N4SQ201206	20	12	6	26,22
42	N4SQ201208	20	12	8	29,10
43	N4SQ201210	20	12	10	31,97
44	N4SQ201212	20	12	12	34,84
45	N4SQ201606	20	16	6	33,03
46	N4SQ201608	20	16	8	36,26
47	N4SQ201610	20	16	10	39,49
48	N4SQ201612	20	16	12	42,72
49	N4SQ201616	20	16	16	49,19
50	N4SQ202006	20	20	6	39,83
51	N4SQ202008	20	20	8	43,42
52	N4SQ202010	20	20	10	47,01
53	N4SQ202012	20	20	12	50,61
54	N4SQ202016	20	20	16	57,79
55	N4SQ202020	20	20	20	64,97
56	N4SQ202406	20	24	6	46,64
57	N4SQ202408	20	24	8	50,59
58	N4SQ202410	20	24	10	54,54
59	N4SQ202412	20	24	12	58,49
60	N4SQ202416	20	24	16	66,39
61	N4SQ202420	20	24	20	74,29
62	N4SQ203006	20	30	6	56,84
63	N4SQ203008	20	30	8	61,33
64	N4SQ203010	20	30	10	65,82
65	N4SQ203012	20	30	12	70,31
66	N4SQ203016	20	30	16	79,29
67	N4SQ203020	20	30	20	88,27
68	N4SQ203606	20	36	6	67,15
69	N4SQ203608	20	36	8	72,18
70	N4SQ203610	20	36	10	77,20
71	N4SQ203612	20	36	12	82,23
72	N4SQ203616	20	36	16	92,29
73	N4SQ203620	20	36	20	102,34
74	N4SQ241206	24	12	6	30,96
75	N4SQ241208	24	12	8	34,20
76	N4SQ241210	24	12	10	37,43
77	N4SQ241212	24	12	12	40,66
78	N4SQ241606	24	16	6	38,99
79	N4SQ241608	24	16	8	42,58
80	N4SQ241610	24	16	10	46,17
81	N4SQ241612	24	16	12	49,76
82	N4SQ241616	24	16	16	56,95
83	N4SQ242006	24	20	6	47,02
84	N4SQ242008	24	20	8	50,97
85	N4SQ242010	24	20	10	54,92
86	N4SQ242012	24	20	12	58,87
87	N4SQ242016	24	20	16	66,77
88	N4SQ242020	24	20	20	74,67
89	N4SQ242406	24	24	6	55,04
90	N4SQ242408	24	24	8	59,35
91	N4SQ242410	24	24	10	63,66
92	N4SQ242412	24	24	12	67,97
93	N4SQ242416	24	24	16	76,59
94	N4SQ242420	24	24	20	85,21
95	N4SQ243006	24	30	6	67,08
96	N4SQ243008	24	30	8	71,93
97	N4SQ243010	24	30	10	76,78
98	N4SQ243012	24	30	12	81,62
99	N4SQ243016	24	30	16	91,32
100	N4SQ243020	24	30	20	101,02
101	N4SQ243606	24	36	6	79,22
102	N4SQ243608	24	36	8	84,60
103	N4SQ243610	24	36	10	89,99
104	N4SQ243612	24	36	12	95,38
105	N4SQ243616	24	36	16	106,15
106	N4SQ243620	24	36	20	116,92
107	N4SQ301606	30	16	6	47,68
108	N4SQ301608	30	16	8	51,80
109	N4SQ301610	30	16	10	55,93
110	N4SQ301612	30	16	12	60,06
111	N4SQ301616	30	16	16	68,32
112	N4SQ302006	30	20	6	57,53
113	N4SQ302008	30	20	8	62,02
114	N4SQ302010	30	20	10	66,51
115	N4SQ302012	30	20	12	71,00
116	N4SQ302016	30	20	16	79,98
117	N4SQ302020	30	20	20	88,95
118	N4SQ302406	30	24	6	67,39
119	N4SQ302408	30	24	8	72,24
120	N4SQ302410	30	24	10	77,09
121	N4SQ302412	30	24	12	81,93
122	N4SQ302416	30	24	16	91,63
123	N4SQ302420	30	24	20	101,32
124	N4SQ303006	30	30	6	82,18
125	N4SQ303008	30	30	8	87,56
126	N4SQ303010	30	30	10	92,95
127	N4SQ303012	30	30	12	98,34
128	N4SQ303016	30	30	16	109,11
129	N4SQ303020	30	30	20	119,88
130	N4SQ303606	30	36	6	97,06
131	N4SQ303608	30	36	8	102,98
132	N4SQ303610	30	36	10	108,91
133	N4SQ303612	30	36	12	114,83
134	N4SQ303616	30	36	16	126,68
135	N4SQ303620	30	36	20	138,53
136	N4SQ362006	36	20	6	68,15
137	N4SQ362008	36	20	8	73,17
138	N4SQ362010	36	20	10	78,20
139	N4SQ362012	36	20	12	83,23
140	N4SQ362016	36	20	16	93,28
141	N4SQ362020	36	20	20	103,34
142	N4SQ362406	36	24	6	79,83
143	N4SQ362408	36	24	8	85,22
144	N4SQ362410	36	24	10	90,61
145	N4SQ362412	36	24	12	95,99
146	N4SQ362416	36	24	16	106,77
147	N4SQ362420	36	24	20	117,54
148	N4SQ363006	36	30	6	97,37
149	N4SQ363008	36	30	8	103,29
150	N4SQ363010	36	30	10	109,22
151	N4SQ363012	36	30	12	115,14
152	N4SQ363016	36	30	16	126,99
153	N4SQ363020	36	30	20	138,84
154	N4SQ363606	36	36	6	115,00
155	N4SQ363608	36	36	8	121,46
156	N4SQ363610	36	36	10	127,92
157	N4SQ363612	36	36	12	134,39
158	N4SQ363616	36	36	16	147,32
159	N4SQ363620	36	36	20	160,24
160	N4SQ422406	42	24	6	92,35
161	N4SQ422408	42	24	8	98,28
162	N4SQ422410	42	24	10	104,21
163	N4SQ422412	42	24	12	110,13
164	N4SQ422416	42	24	16	121,98
165	N4SQ422420	42	24	20	133,83
166	N4SQ423006	42	30	6	112,63
167	N4SQ423008	42	30	8	119,10
168	N4SQ423010	42	30	10	125,56
169	N4SQ423012	42	30	12	132,03
170	N4SQ423016	42	30	16	144,95
171	N4SQ423020	42	30	20	157,88
172	N4SQ423606	42	36	6	133,01
173	N4SQ423608	42	36	8	140,01
174	N4SQ423610	42	36	10	147,02
175	N4SQ423612	42	36	12	154,02
176	N4SQ423616	42	36	16	168,02
177	N4SQ423620	42	36	20	182,03
178	N4SQ482406	48	24	6	104,70
179	N4SQ482408	48	24	8	111,17
180	N4SQ482410	48	24	10	117,63
181	N4SQ482412	48	24	12	124,09
182	N4SQ482416	48	24	16	137,02
183	N4SQ482420	48	24	20	149,95
184	N4SQ483006	48	30	6	127,73
185	N4SQ483008	48	30	8	134,73
186	N4SQ483010	48	30	10	141,73
187	N4SQ483012	48	30	12	148,74
188	N4SQ483016	48	30	16	162,74
189	N4SQ483020	48	30	20	176,75
190	N4SQ483606	48	36	6	150,85
191	N4SQ483608	48	36	8	158,39
192	N4SQ483610	48	36	10	165,94
193	N4SQ483612	48	36	12	173,48
194	N4SQ483616	48	36	16	188,56
195	N4SQ483620	48	36	20	203,64
196	N4SQ602406	60	24	6	129,40
197	N4SQ602408	60	24	8	136,94
198	N4SQ602410	60	24	10	144,48
199	N4SQ602412	60	24	12	152,02
200	N4SQ602416	60	24	16	167,10
201	N4SQ602420	60	24	20	182,18
202	N4SQ603006	60	30	6	157,92
203	N4SQ603008	60	30	8	166,00
204	N4SQ603010	60	30	10	174,08
205	N4SQ603012	60	30	12	182,16
206	N4SQ603016	60	30	16	198,32
207	N4SQ603020	60	30	20	214,48
208	N4SQ603606	60	36	6	186,54
209	N4SQ603608	60	36	8	195,16
210	N4SQ603610	60	36	10	203,77
211	N4SQ603612	60	36	12	212,39
212	N4SQ603616	60	36	16	229,63
213	N4SQ603620	60	36	20	246,87
214	N4SQ722406	72	24	6	154,09
215	N4SQ722408	72	24	8	162,71
216	N4SQ722410	72	24	10	171,33
217	N4SQ722412	72	24	12	179,95
218	N4SQ722416	72	24	16	197,18
219	N4SQ722420	72	24	20	214,42
220	N4SQ723006	72	30	6	188,11
221	N4SQ723008	72	30	8	197,27
222	N4SQ723010	72	30	10	206,42
223	N4SQ723012	72	30	12	215,58
224	N4SQ723016	72	30	16	233,89
225	N4SQ723020	72	30	20	252,21
226	N4SQ723606	72	36	6	222,22
227	N4SQ723608	72	36	8	231,92
228	N4SQ723610	72	36	10	241,61
229	N4SQ723612	72	36	12	251,31
230	N4SQ723616	72	36	16	270,70
231	N4SQ723620	72	36	20	290,09
