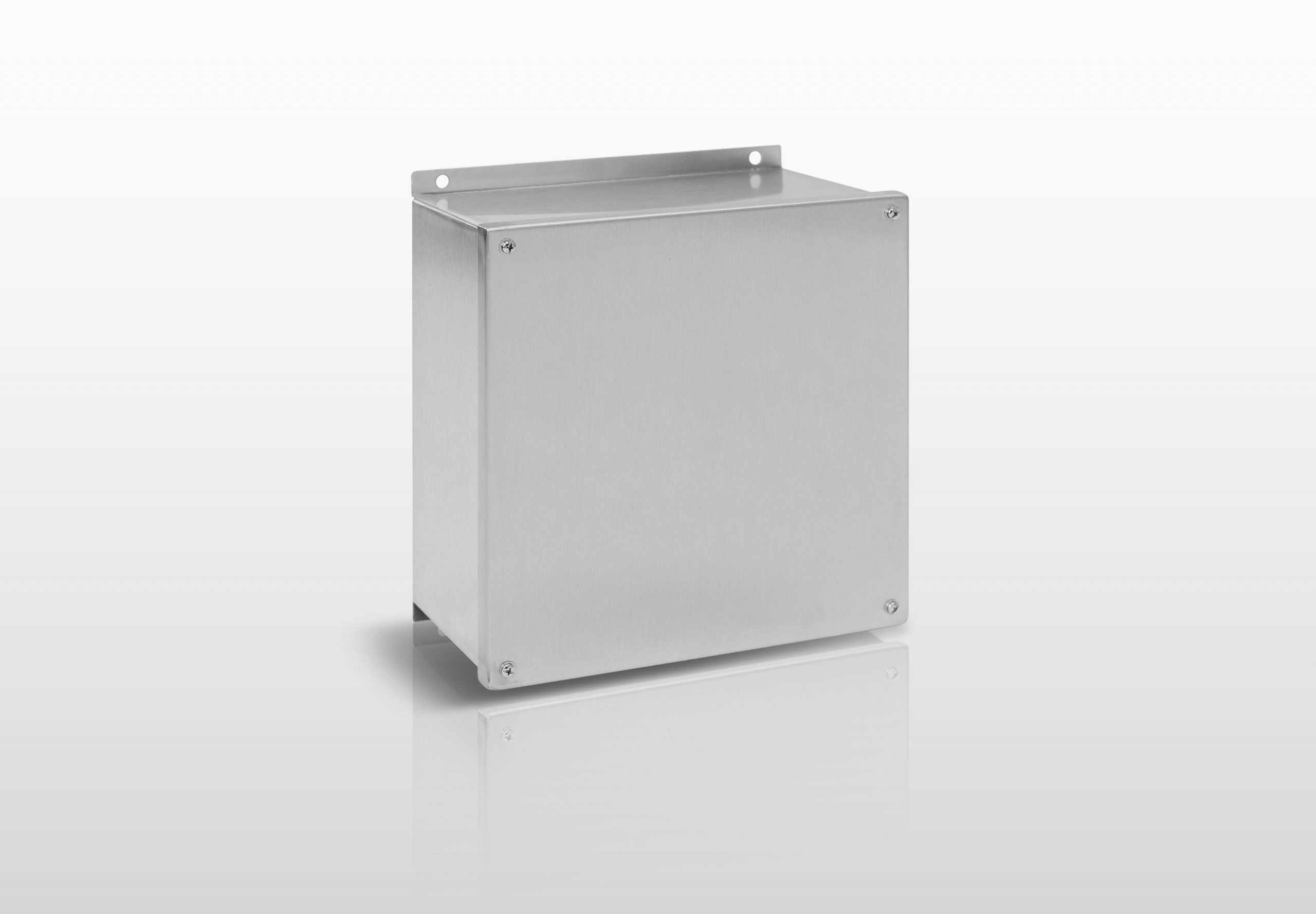

NEMA Junction Box, 12 (304 STAINLESS STEEL) JIC ENCLOSURE WITH SCREW COVER

SERIES JS12S

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Removable cover allows for easy access to internal components in area with limited space
• Designed for indoor use and will protect components from falling dust, dirt, oil and water

• NEMA Type Junction Box, 12
• CSA Type Junction Box, 12
• UL Type Junction Box, 12

TRY OUR CONFIGURATOR

• Fabricated from 16 or 14 gauge type 304 stainless steel steel with seam welds that are ground smooth
• Door is also fabricated from type 304 stainless steel
• Door is secured with captive machine screws
• Includes a removable 14 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Mounting feet are formed from enclosure body, reducing potential corrosion
• Enclosure exterior is polished to a #4 finish
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

JS12S.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT
1	JS12S040403	4	4	3	1,88
2	JS12S040404	4	4	4	2,26
3	JS12S040603	4	6	3	2,87
4	JS12S040604	4	6	4	3,34
5	JS12S060403	6	4	3	2,87
6	JS12S060404	6	4	4	3,34
7	JS12S060603	6	6	3	3,95
8	JS12S060604	6	6	4	4,51
9	JS12S060605	6	6	5	5,07
10	JS12S060606	6	6	6	5,64
11	JS12S060803	6	8	3	5,02
12	JS12S060804	6	8	4	5,68
13	JS12S060805	6	8	5	6,34
14	JS12S060806	6	8	6	7,00
15	JS12S061003	6	10	3	6,10
16	JS12S061004	6	10	4	6,85
17	JS12S061005	6	10	5	7,60
18	JS12S061006	6	10	6	8,35
19	JS12S061203	6	12	3	7,17
20	JS12S061204	6	12	4	8,02
21	JS12S061205	6	12	5	8,87
22	JS12S061206	6	12	6	9,71
23	JS12S080403	8	4	3	3,65
24	JS12S080404	8	4	4	4,22
25	JS12S080603	8	6	3	5,01
26	JS12S080604	8	6	4	5,67
27	JS12S080605	8	6	5	6,32
28	JS12S080606	8	6	6	6,98
29	JS12S080803	8	8	3	6,36
30	JS12S080804	8	8	4	7,11
31	JS12S080805	8	8	5	7,86
32	JS12S080806	8	8	6	8,62
33	JS12S080808	8	8	8	10,12
34	JS12S081004	8	10	4	8,56
35	JS12S081005	8	10	5	9,40
36	JS12S081006	8	10	6	10,25
37	JS12S081008	8	10	8	11,94
38	JS12S081203	8	12	3	9,06
39	JS12S081204	8	12	4	10,00
40	JS12S081205	8	12	5	10,94
41	JS12S081206	8	12	6	11,88
42	JS12S081208	8	12	8	13,77
43	JS12S081403	8	14	3	10,41
44	JS12S081404	8	14	4	11,45
45	JS12S081405	8	14	5	12,48
46	JS12S081406	8	14	6	13,52
47	JS12S081408	8	14	8	15,59
48	JS12S100403	10	4	3	4,45
49	JS12S100404	10	4	4	5,11
50	JS12S100603	10	6	3	6,08
51	JS12S100604	10	6	4	6,84
52	JS12S100605	10	6	5	7,59
53	JS12S100606	10	6	6	8,34
54	JS12S100803	10	8	3	7,72
55	JS12S100804	10	8	4	8,56
56	JS12S100805	10	8	5	9,41
57	JS12S100806	10	8	6	10,26
58	JS12S100808	10	8	8	11,95
59	JS12S101003	10	10	3	9,35
60	JS12S101004	10	10	4	10,29
61	JS12S101005	10	10	5	11,23
62	JS12S101006	10	10	6	12,17
63	JS12S101008	10	10	8	14,05
64	JS12S101010	10	10	10	15,93
65	JS12S101203	10	12	3	10,99
66	JS12S101204	10	12	4	12,02
67	JS12S101205	10	12	5	13,05
68	JS12S101206	10	12	6	14,09
69	JS12S101208	10	12	8	16,16
70	JS12S101210	10	12	10	18,23
71	JS12S101403	10	14	3	12,62
72	JS12S101404	10	14	4	13,75
73	JS12S101405	10	14	5	14,88
74	JS12S101406	10	14	6	16,01
75	JS12S101408	10	14	8	18,26
76	JS12S101410	10	14	10	20,52
77	JS12S120403	12	4	3	5,24
78	JS12S120404	12	4	4	5,99
79	JS12S120603	12	6	3	7,16
80	JS12S120604	12	6	4	8,01
81	JS12S120605	12	6	5	8,85
82	JS12S120606	12	6	6	9,70
83	JS12S120803	12	8	3	9,07
84	JS12S120804	12	8	4	10,02
85	JS12S120805	12	8	5	10,96
86	JS12S120806	12	8	6	11,90
87	JS12S120808	12	8	8	13,78
88	JS12S121003	12	10	3	10,99
89	JS12S121004	12	10	4	12,03
90	JS12S121005	12	10	5	13,06
91	JS12S121006	12	10	6	14,09
92	JS12S121008	12	10	8	16,16
93	JS12S121010	12	10	10	18,23
94	JS12S121203	12	12	3	12,91
95	JS12S121204	12	12	4	14,04
96	JS12S121205	12	12	5	15,16
97	JS12S121206	12	12	6	16,29
98	JS12S121208	12	12	8	18,55
99	JS12S121210	12	12	10	20,81
100	JS12S121403	12	14	3	14,82
101	JS12S121404	12	14	4	16,05
102	JS12S121405	12	14	5	17,27
103	JS12S121406	12	14	6	18,49
104	JS12S121408	12	14	8	20,94
105	JS12S121410	12	14	10	23,38
106	JS12S121412	12	14	12	25,83
107	JS12S121603	12	16	3	16,74
108	JS12S121604	12	16	4	18,06
109	JS12S121605	12	16	5	19,37
110	JS12S121606	12	16	6	20,69
111	JS12S121608	12	16	8	23,32
112	JS12S121610	12	16	10	25,96
113	JS12S121612	12	16	12	28,59
114	JS12S122003	12	20	3	20,57
115	JS12S122004	12	20	4	22,08
116	JS12S122005	12	20	5	23,58
117	JS12S122006	12	20	6	25,09
118	JS12S122008	12	20	8	28,10
119	JS12S122010	12	20	10	31,11
120	JS12S122012	12	20	12	34,12
121	JS12S122403	12	24	3	24,41
122	JS12S122404	12	24	4	26,10
123	JS12S122405	12	24	5	27,79
124	JS12S122406	12	24	6	29,48
125	JS12S122408	12	24	8	32,87
126	JS12S122410	12	24	10	36,26
127	JS12S122412	12	24	12	39,64
128	JS12S140403	14	4	3	6,04
129	JS12S140404	14	4	4	6,88
130	JS12S140603	14	6	3	8,23
131	JS12S140604	14	6	4	9,18
132	JS12S140605	14	6	5	10,12
133	JS12S140606	14	6	6	11,06
134	JS12S140803	14	8	3	10,43
135	JS12S140804	14	8	4	11,47
136	JS12S140805	14	8	5	12,50
137	JS12S140806	14	8	6	13,54
138	JS12S140808	14	8	8	15,61
139	JS12S141003	14	10	3	12,63
140	JS12S141004	14	10	4	13,76
141	JS12S141005	14	10	5	14,89
142	JS12S141006	14	10	6	16,02
143	JS12S141008	14	10	8	18,27
144	JS12S141010	14	10	10	20,53
145	JS12S141203	14	12	3	14,83
146	JS12S141204	14	12	4	16,05
147	JS12S141205	14	12	5	17,28
148	JS12S141206	14	12	6	18,50
149	JS12S141208	14	12	8	20,94
150	JS12S141210	14	12	10	23,39
151	JS12S141403	14	14	3	17,03
152	JS12S141404	14	14	4	18,34
153	JS12S141405	14	14	5	19,66
154	JS12S141406	14	14	6	20,98
155	JS12S141408	14	14	8	23,61
156	JS12S141410	14	14	10	26,25
157	JS12S141412	14	14	12	28,88
158	JS12S141603	14	16	3	19,23
159	JS12S141604	14	16	4	20,64
160	JS12S141605	14	16	5	22,05
161	JS12S141606	14	16	6	23,46
162	JS12S141608	14	16	8	26,28
163	JS12S141610	14	16	10	29,10
164	JS12S141612	14	16	12	31,92
165	JS12S142003	14	20	3	23,62
166	JS12S142004	14	20	4	25,22
167	JS12S142005	14	20	5	26,82
168	JS12S142006	14	20	6	28,42
169	JS12S142008	14	20	8	31,62
170	JS12S142010	14	20	10	34,82
171	JS12S142012	14	20	12	38,01
172	JS12S142403	14	24	3	28,02
173	JS12S142404	14	24	4	29,81
174	JS12S142405	14	24	5	31,59
175	JS12S142406	14	24	6	33,38
176	JS12S142408	14	24	8	36,96
177	JS12S142410	14	24	10	40,53
178	JS12S142412	14	24	12	44,10
179	JS12S160403	16	4	3	6,83
180	JS12S160404	16	4	4	7,77
181	JS12S160603	16	6	3	9,31
182	JS12S160604	16	6	4	10,35
183	JS12S160605	16	6	5	11,38
184	JS12S160606	16	6	6	12,41
185	JS12S160803	16	8	3	11,79
186	JS12S160804	16	8	4	12,92
187	JS12S160805	16	8	5	14,05
188	JS12S160806	16	8	6	15,18
189	JS12S160808	16	8	8	17,43
190	JS12S161003	16	10	3	14,27
191	JS12S161004	16	10	4	15,49
192	JS12S161005	16	10	5	16,72
193	JS12S161006	16	10	6	17,94
194	JS12S161008	16	10	8	20,38
195	JS12S161010	16	10	10	22,83
196	JS12S161203	16	12	3	16,75
197	JS12S161204	16	12	4	18,07
198	JS12S161205	16	12	5	19,39
199	JS12S161206	16	12	6	20,70
200	JS12S161208	16	12	8	23,34
201	JS12S161210	16	12	10	25,97
202	JS12S161403	16	14	3	19,23
203	JS12S161404	16	14	4	20,64
204	JS12S161405	16	14	5	22,05
205	JS12S161406	16	14	6	23,47
206	JS12S161408	16	14	8	26,29
207	JS12S161410	16	14	10	29,11
208	JS12S161412	16	14	12	31,93
209	JS12S161603	16	16	3	21,71
210	JS12S161604	16	16	4	23,22
211	JS12S161605	16	16	5	24,72
212	JS12S161606	16	16	6	26,23
213	JS12S161608	16	16	8	29,24
214	JS12S161610	16	16	10	32,25
215	JS12S161612	16	16	12	35,26
216	JS12S161616	16	16	16	41,28
217	JS12S162003	16	20	3	26,67
218	JS12S162004	16	20	4	28,37
219	JS12S162005	16	20	5	30,06
220	JS12S162006	16	20	6	31,75
221	JS12S162008	16	20	8	35,14
222	JS12S162010	16	20	10	38,52
223	JS12S162012	16	20	12	41,91
224	JS12S162016	16	20	16	48,68
225	JS12S162403	16	24	3	31,64
226	JS12S162404	16	24	4	33,52
227	JS12S162405	16	24	5	35,40
228	JS12S162406	16	24	6	37,28
229	JS12S162408	16	24	8	41,04
230	JS12S162410	16	24	10	44,80
231	JS12S162412	16	24	12	48,56
232	JS12S162416	16	24	16	56,09
233	JS12S200603	20	6	3	11,46
234	JS12S200604	20	6	4	12,69
235	JS12S200605	20	6	5	13,91
236	JS12S200606	20	6	6	15,13
237	JS12S200803	20	8	3	14,51
238	JS12S200804	20	8	4	15,82
239	JS12S200805	20	8	5	17,14
240	JS12S200806	20	8	6	18,46
241	JS12S200808	20	8	8	21,09
242	JS12S201003	20	10	3	17,55
243	JS12S201004	20	10	4	18,96
244	JS12S201005	20	10	5	20,37
245	JS12S201006	20	10	6	21,78
246	JS12S201008	20	10	8	24,61
247	JS12S201010	20	10	10	27,43
248	JS12S201203	20	12	3	20,60
249	JS12S201204	20	12	4	22,10
250	JS12S201205	20	12	5	23,61
251	JS12S201206	20	12	6	25,11
252	JS12S201208	20	12	8	28,12
253	JS12S201210	20	12	10	31,13
254	JS12S201403	20	14	3	23,64
255	JS12S201404	20	14	4	25,24
256	JS12S201405	20	14	5	26,84
257	JS12S201406	20	14	6	28,44
258	JS12S201408	20	14	8	31,64
259	JS12S201410	20	14	10	34,83
260	JS12S201412	20	14	12	38,03
261	JS12S201603	20	16	3	26,69
262	JS12S201604	20	16	4	28,38
263	JS12S201605	20	16	5	30,07
264	JS12S201606	20	16	6	31,77
265	JS12S201608	20	16	8	35,15
266	JS12S201610	20	16	10	38,54
267	JS12S201612	20	16	12	41,92
268	JS12S201616	20	16	16	48,69
269	JS12S202003	20	20	3	32,78
270	JS12S202004	20	20	4	34,66
271	JS12S202005	20	20	5	36,54
272	JS12S202006	20	20	6	38,42
273	JS12S202008	20	20	8	42,18
274	JS12S202010	20	20	10	45,94
275	JS12S202012	20	20	12	49,71
276	JS12S202016	20	20	16	57,23
277	JS12S202403	20	24	3	38,87
278	JS12S202404	20	24	4	40,94
279	JS12S202405	20	24	5	43,00
280	JS12S202406	20	24	6	45,07
281	JS12S202408	20	24	8	49,21
282	JS12S202410	20	24	10	53,35
283	JS12S202412	20	24	12	57,49
284	JS12S202416	20	24	16	65,76
285	JS12S240603	24	6	3	13,61
286	JS12S240604	24	6	4	15,03
287	JS12S240605	24	6	5	16,44
288	JS12S240606	24	6	6	17,85
289	JS12S240803	24	8	3	17,22
290	JS12S240804	24	8	4	18,73
291	JS12S240805	24	8	5	20,23
292	JS12S240806	24	8	6	21,74
293	JS12S240808	24	8	8	24,75
294	JS12S241003	24	10	3	20,83
295	JS12S241004	24	10	4	22,43
296	JS12S241005	24	10	5	24,03
297	JS12S241006	24	10	6	25,63
298	JS12S241008	24	10	8	28,83
299	JS12S241010	24	10	10	32,02
300	JS12S241203	24	12	3	24,44
301	JS12S241204	24	12	4	26,13
302	JS12S241205	24	12	5	27,83
303	JS12S241206	24	12	6	29,52
304	JS12S241208	24	12	8	32,91
305	JS12S241210	24	12	10	36,29
306	JS12S241403	24	14	3	28,05
307	JS12S241404	24	14	4	29,84
308	JS12S241405	24	14	5	31,62
309	JS12S241406	24	14	6	33,41
310	JS12S241408	24	14	8	36,99
311	JS12S241410	24	14	10	40,56
312	JS12S241412	24	14	12	44,13
313	JS12S241603	24	16	3	31,66
314	JS12S241604	24	16	4	33,54
315	JS12S241605	24	16	5	35,42
316	JS12S241606	24	16	6	37,30
317	JS12S241608	24	16	8	41,07
318	JS12S241610	24	16	10	44,83
319	JS12S241612	24	16	12	48,59
320	JS12S241616	24	16	16	56,11
321	JS12S242003	24	20	3	38,88
322	JS12S242004	24	20	4	40,95
323	JS12S242005	24	20	5	43,02
324	JS12S242006	24	20	6	45,09
325	JS12S242008	24	20	8	49,22
326	JS12S242010	24	20	10	53,36
327	JS12S242012	24	20	12	57,50
328	JS12S242016	24	20	16	65,78
329	JS12S242403	24	24	3	46,10
330	JS12S242404	24	24	4	48,35
331	JS12S242405	24	24	5	50,61
332	JS12S242406	24	24	6	52,87
333	JS12S242408	24	24	8	57,38
334	JS12S242410	24	24	10	61,90
335	JS12S242412	24	24	12	66,41
336	JS12S242416	24	24	16	75,44
	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT

NEMA Junction Box, 12 (304 STAINLESS STEEL) JIC ENCLOSURE WITH SCREW COVER

SERIES JS12S

JS12S

Type 12

NEMA Pushbutton, 12 JIC 30MM PUSHBUTTON EXTRA DEEP ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 JIC 22MM PUSHBUTTON EXTRA LARGE ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 JIC 30MM PUSHBUTTON EXTRA LARGE ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 (316L STAINLESS STEEL) JIC 22MM PUSHBUTTON CONSOLET ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 JIC 22MM PUSHBUTTON CONSOLET ENCLOSURE WITH SCREW COVER

NEMA Pushbutton, 12 (316L STAINLESS STEEL) JIC 30MM PUSHBUTTON CONSOLET ENCLOSURE WITH HINGED COVER

Family Junction Box

NEMA Junction Box, 12 JIC 30MM PUSHBUTTON EXTRA LARGE ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 12 JIC ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 12 (304 STAINLESS STEEL) JIC ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 12 (316L STAINLESS STEEL) JIC ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 12 JIC CONSOLET ENCLOSURE WITH HINGED COVER

NEMA Junction Box, 12 (304 STAINLESS STEEL) JIC CONSOLET ENCLOSURE WITH HINGED COVER
