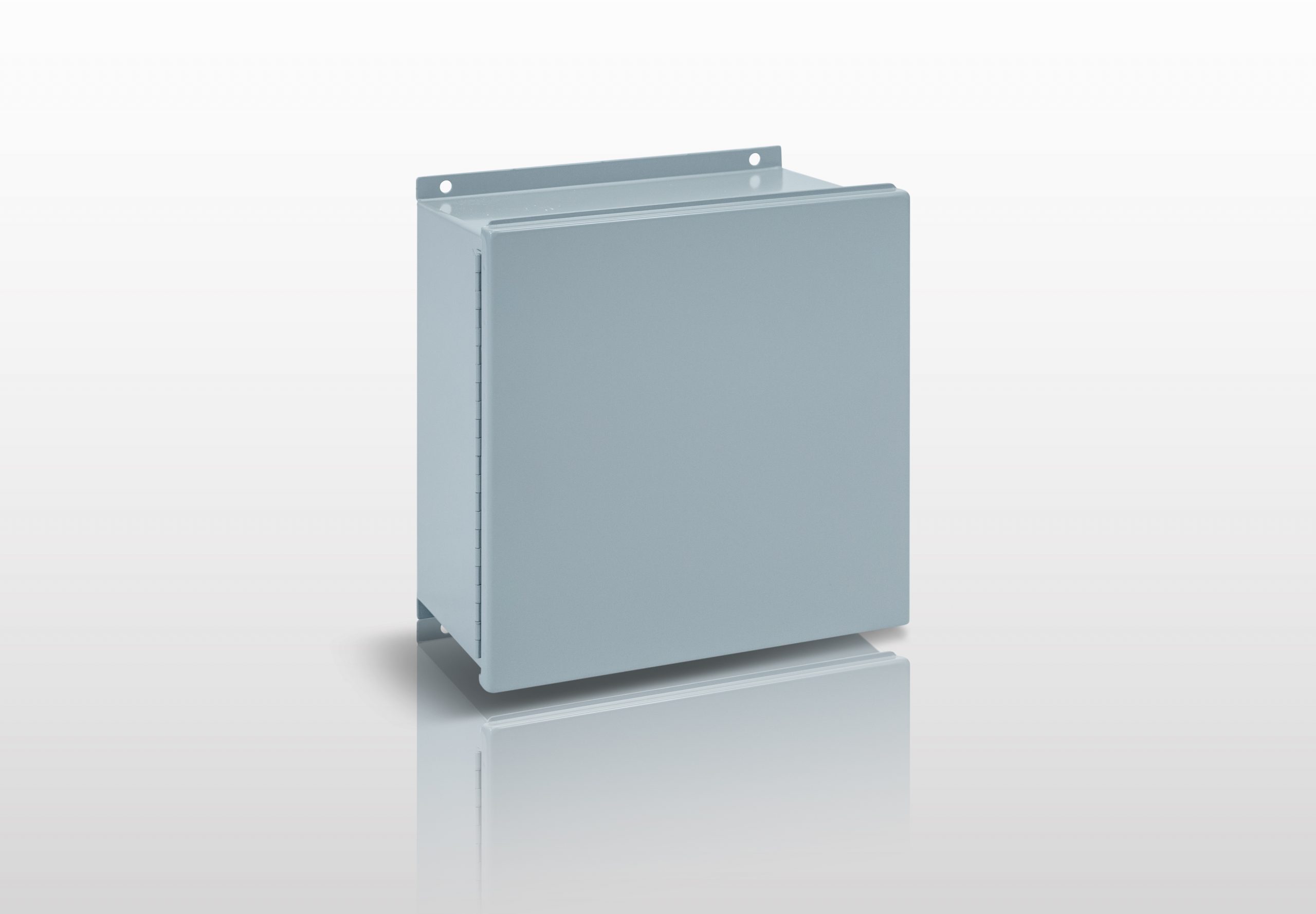

NEMA Junction Box, 12 JIC ENCLOSURE WITH HINGED COVER - SERIES JH12

NEMA Junction Box, 12 JIC ENCLOSURE WITH HINGED COVER

SERIES JH12

  • Suitable for use as an electrical junction box, terminal box, and instrument housing
  • Continuously hinged door allows for easy access to internal components
  • Designed for indoor use and will protect components from falling dust, dirt, oil, and water
  • NEMA Type Junction Box, 12
  • CSA Type Junction Box, 12
  • UL Type Junction Box, 12
  • Fabricated from 14 gauge steel with seam welds that are ground smooth
  • Door is secured with polished 304 stainless steel clamps
  • Includes a removable 14 gauge steel sub plate
  • Door gasket is seamless foam-in-place polyurethane
  • Ground studs are included on both the door and enclosure body
  • Mounting feet are formed from enclosure body, reducing potential corrosion
  • Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
  • Sub plate is finished in a white polyester powder coating over a phosphated surface

———————

  • CSA File: 111860
  • UL File: E304861

JH12.pdf

JH12

Type 12

Family Junction Box
