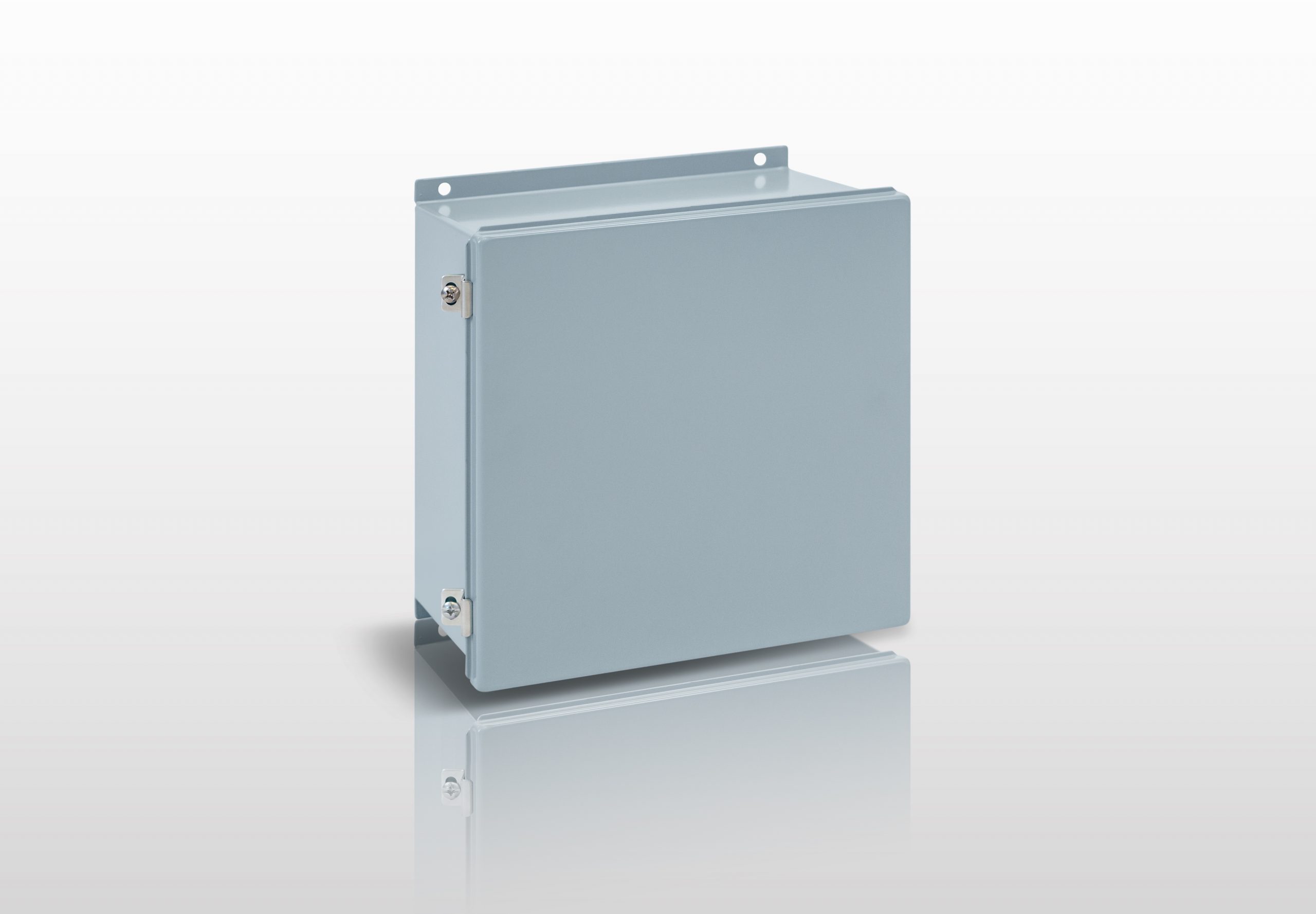

NEMA Junction Box, 12 JIC ENCLOSURE WITH LIFT-OFF COVER

SERIES JL12

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Lift-off cover allows for easy access to internal components in area with limited space
• Designed for indoor use and will protect components from falling dust, dirt, oil and water

• NEMA Type Junction Box, 12
• CSA Type Junction Box, 12
• UL Type Junction Box, 12

TRY OUR CONFIGURATOR

• Fabricated from 14 gauge steel with seam welds that are ground smooth
• Door is secured with polished 304 stainless steel clamps
• Includes a removable 14 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Mounting feet are formed from enclosure body, reducing potential corrosion
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

JL12.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS
1	JL12040403	4	4	3	1,88	2
2	JL12040404	4	4	4	2,26	2
3	JL12040603	4	6	3	2,87	2
4	JL12040604	4	6	4	3,34	2
5	JL12060403	6	4	3	2,87	2
6	JL12060404	6	4	4	3,34	2
7	JL12060603	6	6	3	3,95	2
8	JL12060604	6	6	4	4,51	2
9	JL12060605	6	6	5	5,07	2
10	JL12060606	6	6	6	5,64	2
11	JL12060803	6	8	3	5,02	4
12	JL12060804	6	8	4	5,68	4
13	JL12060805	6	8	5	6,34	4
14	JL12060806	6	8	6	7,00	4
15	JL12061003	6	10	3	6,10	4
16	JL12061004	6	10	4	6,85	4
17	JL12061005	6	10	5	7,60	4
18	JL12061006	6	10	6	8,35	4
19	JL12061203	6	12	3	7,17	4
20	JL12061204	6	12	4	8,02	4
21	JL12061205	6	12	5	8,87	4
22	JL12061206	6	12	6	9,71	4
23	JL12080403	8	4	3	3,65	4
24	JL12080404	8	4	4	4,22	4
25	JL12080603	8	6	3	5,01	4
26	JL12080604	8	6	4	5,67	4
27	JL12080605	8	6	5	6,32	4
28	JL12080606	8	6	6	6,98	4
29	JL12080803	8	8	3	6,36	4
30	JL12080804	8	8	4	7,11	4
31	JL12080805	8	8	5	7,86	4
32	JL12080806	8	8	6	8,62	4
33	JL12080808	8	8	8	10,12	4
34	JL12081004	8	10	4	8,56	4
35	JL12081005	8	10	5	9,40	4
36	JL12081006	8	10	6	10,25	4
37	JL12081008	8	10	8	11,94	4
38	JL12081203	8	12	3	9,06	4
39	JL12081204	8	12	4	10,00	4
40	JL12081205	8	12	5	10,94	4
41	JL12081206	8	12	6	11,88	4
42	JL12081208	8	12	8	13,77	4
43	JL12081403	8	14	3	10,41	4
44	JL12081404	8	14	4	11,45	4
45	JL12081405	8	14	5	12,48	4
46	JL12081406	8	14	6	13,52	4
47	JL12081408	8	14	8	15,59	4
48	JL12100403	10	4	3	4,45	4
49	JL12100404	10	4	4	5,11	4
50	JL12100603	10	6	3	6,08	4
51	JL12100604	10	6	4	6,84	4
52	JL12100605	10	6	5	7,59	4
53	JL12100606	10	6	6	8,34	4
54	JL12100803	10	8	3	7,72	4
55	JL12100804	10	8	4	8,56	4
56	JL12100805	10	8	5	9,41	4
57	JL12100806	10	8	6	10,26	4
58	JL12100808	10	8	8	11,95	4
59	JL12101003	10	10	3	9,35	4
60	JL12101004	10	10	4	10,29	4
61	JL12101005	10	10	5	11,23	4
62	JL12101006	10	10	6	12,17	4
63	JL12101008	10	10	8	14,05	4
64	JL12101010	10	10	10	15,93	4
65	JL12101203	10	12	3	10,99	4
66	JL12101204	10	12	4	12,02	4
67	JL12101205	10	12	5	13,05	4
68	JL12101206	10	12	6	14,09	4
69	JL12101208	10	12	8	16,16	4
70	JL12101210	10	12	10	18,23	4
71	JL12101403	10	14	3	12,62	4
72	JL12101404	10	14	4	13,75	4
73	JL12101405	10	14	5	14,88	4
74	JL12101406	10	14	6	16,01	4
75	JL12101408	10	14	8	18,26	4
76	JL12101410	10	14	10	20,52	4
77	JL12120403	12	4	3	5,24	4
78	JL12120404	12	4	4	5,99	4
79	JL12120603	12	6	3	7,16	4
80	JL12120604	12	6	4	8,01	4
81	JL12120605	12	6	5	8,85	4
82	JL12120606	12	6	6	9,70	4
83	JL12120803	12	8	3	9,07	4
84	JL12120804	12	8	4	10,02	4
85	JL12120805	12	8	5	10,96	4
86	JL12120806	12	8	6	11,90	4
87	JL12120808	12	8	8	13,78	4
88	JL12121003	12	10	3	10,99	4
89	JL12121004	12	10	4	12,03	4
90	JL12121005	12	10	5	13,06	4
91	JL12121006	12	10	6	14,09	4
92	JL12121008	12	10	8	16,16	4
93	JL12121010	12	10	10	18,23	4
94	JL12121203	12	12	3	12,91	4
95	JL12121204	12	12	4	14,04	4
96	JL12121205	12	12	5	15,16	4
97	JL12121206	12	12	6	16,29	4
98	JL12121208	12	12	8	18,55	4
99	JL12121210	12	12	10	20,81	4
100	JL12121403	12	14	3	14,82	4
101	JL12121404	12	14	4	16,05	4
102	JL12121405	12	14	5	17,27	4
103	JL12121406	12	14	6	18,49	4
104	JL12121408	12	14	8	20,94	4
105	JL12121410	12	14	10	23,38	4
106	JL12121412	12	14	12	25,83	4
107	JL12121603	12	16	3	16,74	4
108	JL12121604	12	16	4	18,06	4
109	JL12121605	12	16	5	19,37	4
110	JL12121606	12	16	6	20,69	4
111	JL12121608	12	16	8	23,32	4
112	JL12121610	12	16	10	25,96	4
113	JL12121612	12	16	12	28,59	4
114	JL12122003	12	20	3	20,57	4
115	JL12122004	12	20	4	22,08	4
116	JL12122005	12	20	5	23,58	4
117	JL12122006	12	20	6	25,09	4
118	JL12122008	12	20	8	28,10	4
119	JL12122010	12	20	10	31,11	4
120	JL12122012	12	20	12	34,12	4
121	JL12122403	12	24	3	24,41	6
122	JL12122404	12	24	4	26,10	6
123	JL12122405	12	24	5	27,79	6
124	JL12122406	12	24	6	29,48	6
125	JL12122408	12	24	8	32,87	6
126	JL12122410	12	24	10	36,26	6
127	JL12122412	12	24	12	39,64	6
128	JL12140403	14	4	3	6,04	4
129	JL12140404	14	4	4	6,88	4
130	JL12140603	14	6	3	8,23	4
131	JL12140604	14	6	4	9,18	4
132	JL12140605	14	6	5	10,12	4
133	JL12140606	14	6	6	11,06	4
134	JL12140803	14	8	3	10,43	4
135	JL12140804	14	8	4	11,47	4
136	JL12140805	14	8	5	12,50	4
137	JL12140806	14	8	6	13,54	4
138	JL12140808	14	8	8	15,61	4
139	JL12141003	14	10	3	12,63	4
140	JL12141004	14	10	4	13,76	4
141	JL12141005	14	10	5	14,89	4
142	JL12141006	14	10	6	16,02	4
143	JL12141008	14	10	8	18,27	4
144	JL12141010	14	10	10	20,53	4
145	JL12141203	14	12	3	14,83	4
146	JL12141204	14	12	4	16,05	4
147	JL12141205	14	12	5	17,28	4
148	JL12141206	14	12	6	18,50	4
149	JL12141208	14	12	8	20,94	4
150	JL12141210	14	12	10	23,39	4
151	JL12141403	14	14	3	17,03	4
152	JL12141404	14	14	4	18,34	4
153	JL12141405	14	14	5	19,66	4
154	JL12141406	14	14	6	20,98	4
155	JL12141408	14	14	8	23,61	4
156	JL12141410	14	14	10	26,25	4
157	JL12141412	14	14	12	28,88	4
158	JL12141603	14	16	3	19,23	4
159	JL12141604	14	16	4	20,64	4
160	JL12141605	14	16	5	22,05	4
161	JL12141606	14	16	6	23,46	4
162	JL12141608	14	16	8	26,28	4
163	JL12141610	14	16	10	29,10	4
164	JL12141612	14	16	12	31,92	4
165	JL12142003	14	20	3	23,62	4
166	JL12142004	14	20	4	25,22	4
167	JL12142005	14	20	5	26,82	4
168	JL12142006	14	20	6	28,42	4
169	JL12142008	14	20	8	31,62	4
170	JL12142010	14	20	10	34,82	4
171	JL12142012	14	20	12	38,01	4
172	JL12142403	14	24	3	28,02	6
173	JL12142404	14	24	4	29,81	6
174	JL12142405	14	24	5	31,59	6
175	JL12142406	14	24	6	33,38	6
176	JL12142408	14	24	8	36,96	6
177	JL12142410	14	24	10	40,53	6
178	JL12142412	14	24	12	44,10	6
179	JL12160403	16	4	3	6,83	4
180	JL12160404	16	4	4	7,77	4
181	JL12160603	16	6	3	9,31	4
182	JL12160604	16	6	4	10,35	4
183	JL12160605	16	6	5	11,38	4
184	JL12160606	16	6	6	12,41	4
185	JL12160803	16	8	3	11,79	4
186	JL12160804	16	8	4	12,92	4
187	JL12160805	16	8	5	14,05	4
188	JL12160806	16	8	6	15,18	4
189	JL12160808	16	8	8	17,43	4
190	JL12161003	16	10	3	14,27	4
191	JL12161004	16	10	4	15,49	4
192	JL12161005	16	10	5	16,72	4
193	JL12161006	16	10	6	17,94	4
194	JL12161008	16	10	8	20,38	4
195	JL12161010	16	10	10	22,83	4
196	JL12161203	16	12	3	16,75	4
197	JL12161204	16	12	4	18,07	4
198	JL12161205	16	12	5	19,39	4
199	JL12161206	16	12	6	20,70	4
200	JL12161208	16	12	8	23,34	4
201	JL12161210	16	12	10	25,97	4
202	JL12161403	16	14	3	19,23	4
203	JL12161404	16	14	4	20,64	4
204	JL12161405	16	14	5	22,05	4
205	JL12161406	16	14	6	23,47	4
206	JL12161408	16	14	8	26,29	4
207	JL12161410	16	14	10	29,11	4
208	JL12161412	16	14	12	31,93	4
209	JL12161603	16	16	3	21,71	4
210	JL12161604	16	16	4	23,22	4
211	JL12161605	16	16	5	24,72	4
212	JL12161606	16	16	6	26,23	4
213	JL12161608	16	16	8	29,24	4
214	JL12161610	16	16	10	32,25	4
215	JL12161612	16	16	12	35,26	4
216	JL12161616	16	16	16	41,28	4
217	JL12162003	16	20	3	26,67	4
218	JL12162004	16	20	4	28,37	4
219	JL12162005	16	20	5	30,06	4
220	JL12162006	16	20	6	31,75	4
221	JL12162008	16	20	8	35,14	4
222	JL12162010	16	20	10	38,52	4
223	JL12162012	16	20	12	41,91	4
224	JL12162016	16	20	16	48,68	4
225	JL12162403	16	24	3	31,64	6
226	JL12162404	16	24	4	33,52	6
227	JL12162405	16	24	5	35,40	6
228	JL12162406	16	24	6	37,28	6
229	JL12162408	16	24	8	41,04	6
230	JL12162410	16	24	10	44,80	6
231	JL12162412	16	24	12	48,56	6
232	JL12162416	16	24	16	56,09	6
233	JL12163003	16	30	3	39,08	6
234	JL12163004	16	30	4	41,24	6
235	JL12163005	16	30	5	43,40	6
236	JL12163006	16	30	6	45,57	6
237	JL12163008	16	30	8	49,89	6
238	JL12163010	16	30	10	54,22	6
239	JL12163012	16	30	12	58,55	6
240	JL12163016	16	30	16	67,20	6
241	JL12200603	20	6	3	11,46	4
242	JL12200604	20	6	4	12,69	4
243	JL12200605	20	6	5	13,91	4
244	JL12200606	20	6	6	15,13	4
245	JL12200803	20	8	3	14,51	4
246	JL12200804	20	8	4	15,82	4
247	JL12200805	20	8	5	17,14	4
248	JL12200806	20	8	6	18,46	4
249	JL12200808	20	8	8	21,09	4
250	JL12201003	20	10	3	17,55	4
251	JL12201004	20	10	4	18,96	4
252	JL12201005	20	10	5	20,37	4
253	JL12201006	20	10	6	21,78	4
254	JL12201008	20	10	8	24,61	4
255	JL12201010	20	10	10	27,43	4
256	JL12201203	20	12	3	20,60	4
257	JL12201204	20	12	4	22,10	4
258	JL12201205	20	12	5	23,61	4
259	JL12201206	20	12	6	25,11	4
260	JL12201208	20	12	8	28,12	4
261	JL12201210	20	12	10	31,13	4
262	JL12201403	20	14	3	23,64	4
263	JL12201404	20	14	4	25,24	4
264	JL12201405	20	14	5	26,84	4
265	JL12201406	20	14	6	28,44	4
266	JL12201408	20	14	8	31,64	4
267	JL12201410	20	14	10	34,83	4
268	JL12201412	20	14	12	38,03	4
269	JL12201603	20	16	3	26,69	4
270	JL12201604	20	16	4	28,38	4
271	JL12201605	20	16	5	30,07	4
272	JL12201606	20	16	6	31,77	4
273	JL12201608	20	16	8	35,15	4
274	JL12201610	20	16	10	38,54	4
275	JL12201612	20	16	12	41,92	4
276	JL12201616	20	16	16	48,69	4
277	JL12202003	20	20	3	32,78	4
278	JL12202004	20	20	4	34,66	4
279	JL12202005	20	20	5	36,54	4
280	JL12202006	20	20	6	38,42	4
281	JL12202008	20	20	8	42,18	4
282	JL12202010	20	20	10	45,94	4
283	JL12202012	20	20	12	49,71	4
284	JL12202016	20	20	16	57,23	4
285	JL12202403	20	24	3	38,87	6
286	JL12202404	20	24	4	40,94	6
287	JL12202405	20	24	5	43,00	6
288	JL12202406	20	24	6	45,07	6
289	JL12202408	20	24	8	49,21	6
290	JL12202410	20	24	10	53,35	6
291	JL12202412	20	24	12	57,49	6
292	JL12202416	20	24	16	65,76	6
293	JL12203003	20	30	3	48,00	6
294	JL12203004	20	30	4	50,35	6
295	JL12203005	20	30	5	52,70	6
296	JL12203006	20	30	6	55,05	6
297	JL12203008	20	30	8	59,76	6
298	JL12203010	20	30	10	64,46	6
299	JL12203012	20	30	12	69,16	6
300	JL12203016	20	30	16	78,57	6
301	JL12240603	24	6	3	13,61	6
302	JL12240604	24	6	4	15,03	6
303	JL12240605	24	6	5	16,44	6
304	JL12240606	24	6	6	17,85	6
305	JL12240803	24	8	3	17,22	6
306	JL12240804	24	8	4	18,73	6
307	JL12240805	24	8	5	20,23	6
308	JL12240806	24	8	6	21,74	6
309	JL12240808	24	8	8	24,75	6
310	JL12241003	24	10	3	20,83	6
311	JL12241004	24	10	4	22,43	6
312	JL12241005	24	10	5	24,03	6
313	JL12241006	24	10	6	25,63	6
314	JL12241008	24	10	8	28,83	6
315	JL12241010	24	10	10	32,02	6
316	JL12241203	24	12	3	24,44	6
317	JL12241204	24	12	4	26,13	6
318	JL12241205	24	12	5	27,83	6
319	JL12241206	24	12	6	29,52	6
320	JL12241208	24	12	8	32,91	6
321	JL12241210	24	12	10	36,29	6
322	JL12241403	24	14	3	28,05	6
323	JL12241404	24	14	4	29,84	6
324	JL12241405	24	14	5	31,62	6
325	JL12241406	24	14	6	33,41	6
326	JL12241408	24	14	8	36,99	6
327	JL12241410	24	14	10	40,56	6
328	JL12241412	24	14	12	44,13	6
329	JL12241603	24	16	3	31,66	6
330	JL12241604	24	16	4	33,54	6
331	JL12241605	24	16	5	35,42	6
332	JL12241606	24	16	6	37,30	6
333	JL12241608	24	16	8	41,07	6
334	JL12241610	24	16	10	44,83	6
335	JL12241612	24	16	12	48,59	6
336	JL12241616	24	16	16	56,11	6
337	JL12242003	24	20	3	38,88	6
338	JL12242004	24	20	4	40,95	6
339	JL12242005	24	20	5	43,02	6
340	JL12242006	24	20	6	45,09	6
341	JL12242008	24	20	8	49,22	6
342	JL12242010	24	20	10	53,36	6
343	JL12242012	24	20	12	57,50	6
344	JL12242016	24	20	16	65,78	6
345	JL12242403	24	24	3	46,10	6
346	JL12242404	24	24	4	48,35	6
347	JL12242405	24	24	5	50,61	6
348	JL12242406	24	24	6	52,87	6
349	JL12242408	24	24	8	57,38	6
350	JL12242410	24	24	10	61,90	6
351	JL12242412	24	24	12	66,41	6
352	JL12242416	24	24	16	75,44	6
353	JL12243003	24	30	3	56,92	6
354	JL12243004	24	30	4	59,46	6
355	JL12243005	24	30	5	62,00	6
356	JL12243006	24	30	6	64,54	6
357	JL12243008	24	30	8	69,62	6
358	JL12243010	24	30	10	74,70	6
359	JL12243012	24	30	12	79,78	6
360	JL12243016	24	30	16	89,94	6
361	JL12300803	30	8	3	21,30	6
362	JL12300804	30	8	4	23,08	6
363	JL12300805	30	8	5	24,87	6
364	JL12300806	30	8	6	26,66	6
365	JL12300808	30	8	8	30,23	6
366	JL12301003	30	10	3	25,75	6
367	JL12301004	30	10	4	27,63	6
368	JL12301005	30	10	5	29,52	6
369	JL12301006	30	10	6	31,40	6
370	JL12301008	30	10	8	35,16	6
371	JL12301010	30	10	10	38,92	6
372	JL12301203	30	12	3	30,21	6
373	JL12301204	30	12	4	32,18	6
374	JL12301205	30	12	5	34,16	6
375	JL12301206	30	12	6	36,13	6
376	JL12301208	30	12	8	40,08	6
377	JL12301210	30	12	10	44,03	6
378	JL12301403	30	14	3	34,66	6
379	JL12301404	30	14	4	36,73	6
380	JL12301405	30	14	5	38,80	6
381	JL12301406	30	14	6	40,87	6
382	JL12301408	30	14	8	45,01	6
383	JL12301410	30	14	10	49,15	6
384	JL12301412	30	14	12	53,29	6
385	JL12301603	30	16	3	39,12	6
386	JL12301604	30	16	4	41,28	6
387	JL12301605	30	16	5	43,45	6
388	JL12301606	30	16	6	45,61	6
389	JL12301608	30	16	8	49,94	6
390	JL12301610	30	16	10	54,26	6
391	JL12301612	30	16	12	58,59	6
392	JL12301616	30	16	16	67,24	6
393	JL12302003	30	20	3	48,03	6
394	JL12302004	30	20	4	50,38	6
395	JL12302005	30	20	5	52,73	6
396	JL12302006	30	20	6	55,09	6
397	JL12302008	30	20	8	59,79	6
398	JL12302010	30	20	10	64,49	6
399	JL12302012	30	20	12	69,19	6
400	JL12302016	30	20	16	78,60	6
401	JL12302403	30	24	3	56,94	6
402	JL12302404	30	24	4	59,48	6
403	JL12302405	30	24	5	62,02	6
404	JL12302406	30	24	6	64,56	6
405	JL12302408	30	24	8	69,64	6
406	JL12302410	30	24	10	74,72	6
407	JL12302412	30	24	12	79,80	6
408	JL12302416	30	24	16	89,95	6
409	JL12303003	30	30	3	70,31	6
410	JL12303004	30	30	4	73,13	6
411	JL12303005	30	30	5	75,95	6
412	JL12303006	30	30	6	78,77	6
413	JL12303008	30	30	8	84,42	6
414	JL12303010	30	30	10	90,06	6
415	JL12303012	30	30	12	95,70	6
416	JL12303016	30	30	16	106,99	6
	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS

NEMA Junction Box, 12 JIC ENCLOSURE WITH LIFT-OFF COVER

SERIES JL12

JL12

Type 12

NEMA Pushbutton, 12 JIC 30MM PUSHBUTTON STANDARD DEPTH ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 JIC 22MM PUSHBUTTON DEEP DEPTH ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 JIC 22MM PUSHBUTTON EXTRA DEEP ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 JIC 30MM PUSHBUTTON EXTRA DEEP ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 JIC 22MM PUSHBUTTON EXTRA LARGE ENCLOSURE WITH HINGED COVER

NEMA Pushbutton, 12 JIC 30MM PUSHBUTTON EXTRA LARGE ENCLOSURE WITH HINGED COVER

Family Junction Box

NEMA Junction Box, 12 JIC 30MM PUSHBUTTON EXTRA LARGE ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 4 JIC ENCLOSURE WITH HINGED COVER AND QUARTER TURN LATCHES

NEMA Junction Box, 4X (304 STAINLESS STEEL) JIC ENCLOSURE WITH HINGED COVER AND QUARTER TURN LATCHES

NEMA Junction Box, 4X (316L STAINLESS STEEL) JIC ENCLOSURE WITH HINGED COVER AND QUARTER TURN LATCHES

NEMA Junction Box, 12 JIC ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 12 (304 STAINLESS STEEL) JIC ENCLOSURE WITH SCREW COVER
