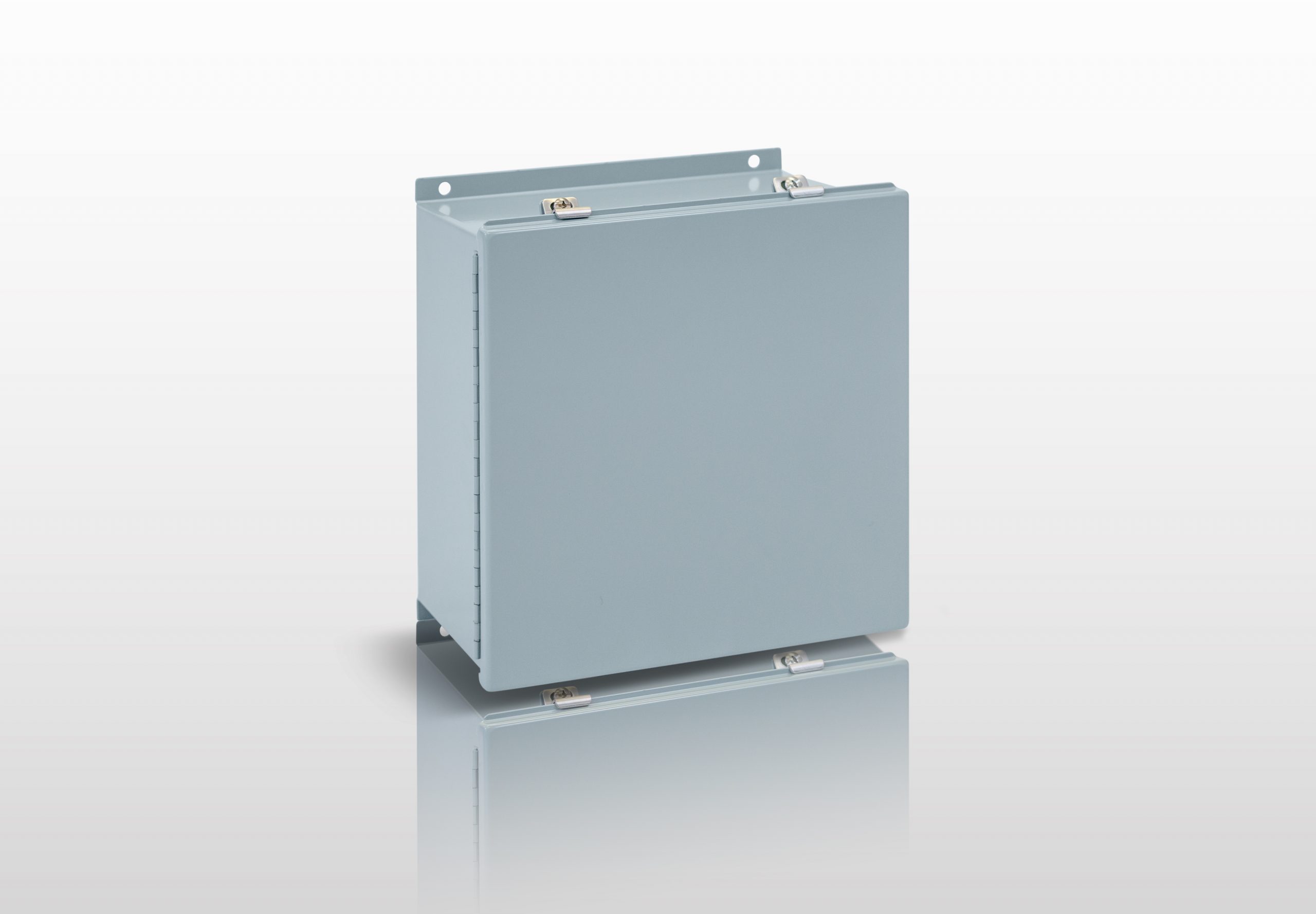

NEMA Junction Box, 4 JIC ENCLOSURE WITH HINGED COVER

SERIES JH4

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Continuously hinged door allows for easy access to internal components
• Designed for indoor use and will protect components from falling dust, dirt, oil, and hose directed water

• NEMA Type Junction Box, 4
• CSA Type Junction Box, 4
• UL Type Junction Box, 4

TRY OUR CONFIGURATOR

• Fabricated from 16 or 14 gauge steel with seam welds that are ground smooth
• Door is secured with polished 304 stainless steel clamps
• Includes a removable 14 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Mounting feet are formed from enclosure body, reducing potential corrosion
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

JH4.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS
1	JH4040403	4	4	3	1,88	3
2	JH4040404	4	4	4	2,26	3
3	JH4040603	4	6	3	2,87	3
4	JH4040604	4	6	4	3,34	3
5	JH4060403	6	4	3	2,87	3
6	JH4060404	6	4	4	3,34	3
7	JH4060603	6	6	3	3,95	3
8	JH4060604	6	6	4	4,51	3
9	JH4060605	6	6	5	5,07	3
10	JH4060606	6	6	6	5,64	3
11	JH4060803	6	8	3	5,02	3
12	JH4060804	6	8	4	5,68	3
13	JH4060805	6	8	5	6,34	3
14	JH4060806	6	8	6	7,00	3
15	JH4061003	6	10	3	6,10	5
16	JH4061004	6	10	4	6,85	5
17	JH4061005	6	10	5	7,60	5
18	JH4061006	6	10	6	8,35	5
19	JH4061203	6	12	3	7,17	5
20	JH4061204	6	12	4	8,02	5
21	JH4061205	6	12	5	8,87	5
22	JH4061206	6	12	6	9,71	5
23	JH4080403	8	4	3	3,65	3
24	JH4080404	8	4	4	4,22	3
25	JH4080603	8	6	3	5,01	3
26	JH4080604	8	6	4	5,67	3
27	JH4080605	8	6	5	6,32	3
28	JH4080606	8	6	6	6,98	3
29	JH4080803	8	8	3	6,36	3
30	JH4080804	8	8	4	7,11	3
31	JH4080805	8	8	5	7,86	3
32	JH4080806	8	8	6	8,62	3
33	JH4080808	8	8	8	10,12	3
34	JH4081004	8	10	4	8,56	5
35	JH4081005	8	10	5	9,40	5
36	JH4081006	8	10	6	10,25	5
37	JH4081008	8	10	8	11,94	5
38	JH4081203	8	12	3	9,06	5
39	JH4081204	8	12	4	10,00	5
40	JH4081205	8	12	5	10,94	5
41	JH4081206	8	12	6	11,88	5
42	JH4081208	8	12	8	13,77	5
43	JH4081403	8	14	3	10,41	5
44	JH4081404	8	14	4	11,45	5
45	JH4081405	8	14	5	12,48	5
46	JH4081406	8	14	6	13,52	5
47	JH4081408	8	14	8	15,59	5
48	JH4100403	10	4	3	4,45	4
49	JH4100404	10	4	4	5,11	4
50	JH4100603	10	6	3	6,08	4
51	JH4100604	10	6	4	6,84	4
52	JH4100605	10	6	5	7,59	4
53	JH4100606	10	6	6	8,34	4
54	JH4100803	10	8	3	7,72	4
55	JH4100804	10	8	4	8,56	4
56	JH4100805	10	8	5	9,41	4
57	JH4100806	10	8	6	10,26	4
58	JH4100808	10	8	8	11,95	4
59	JH4101003	10	10	3	9,35	6
60	JH4101004	10	10	4	10,29	6
61	JH4101005	10	10	5	11,23	6
62	JH4101006	10	10	6	12,17	6
63	JH4101008	10	10	8	14,05	6
64	JH4101010	10	10	10	15,93	6
65	JH4101203	10	12	3	10,99	6
66	JH4101204	10	12	4	12,02	6
67	JH4101205	10	12	5	13,05	6
68	JH4101206	10	12	6	14,09	6
69	JH4101208	10	12	8	16,16	6
70	JH4101210	10	12	10	18,23	6
71	JH4101403	10	14	3	12,62	6
72	JH4101404	10	14	4	13,75	6
73	JH4101405	10	14	5	14,88	6
74	JH4101406	10	14	6	16,01	6
75	JH4101408	10	14	8	18,26	6
76	JH4101410	10	14	10	20,52	6
77	JH4120403	12	4	3	5,24	4
78	JH4120404	12	4	4	5,99	4
79	JH4120603	12	6	3	7,16	4
80	JH4120604	12	6	4	8,01	4
81	JH4120605	12	6	5	8,85	4
82	JH4120606	12	6	6	9,70	4
83	JH4120803	12	8	3	9,07	4
84	JH4120804	12	8	4	10,02	4
85	JH4120805	12	8	5	10,96	4
86	JH4120806	12	8	6	11,90	4
87	JH4120808	12	8	8	13,78	4
88	JH4121003	12	10	3	10,99	6
89	JH4121004	12	10	4	12,03	6
90	JH4121005	12	10	5	13,06	6
91	JH4121006	12	10	6	14,09	6
92	JH4121008	12	10	8	16,16	6
93	JH4121010	12	10	10	18,23	6
94	JH4121203	12	12	3	12,91	6
95	JH4121204	12	12	4	14,04	6
96	JH4121205	12	12	5	15,16	6
97	JH4121206	12	12	6	16,29	6
98	JH4121208	12	12	8	18,55	6
99	JH4121210	12	12	10	20,81	6
100	JH4121403	12	14	3	14,82	6
101	JH4121404	12	14	4	16,05	6
102	JH4121405	12	14	5	17,27	6
103	JH4121406	12	14	6	18,49	6
104	JH4121408	12	14	8	20,94	6
105	JH4121410	12	14	10	23,38	6
106	JH4121412	12	14	12	25,83	6
107	JH4121603	12	16	3	16,74	8
108	JH4121604	12	16	4	18,06	8
109	JH4121605	12	16	5	19,37	8
110	JH4121606	12	16	6	20,69	8
111	JH4121608	12	16	8	23,32	8
112	JH4121610	12	16	10	25,96	8
113	JH4121612	12	16	12	28,59	8
114	JH4122003	12	20	3	20,57	8
115	JH4122004	12	20	4	22,08	8
116	JH4122005	12	20	5	23,58	8
117	JH4122006	12	20	6	25,09	8
118	JH4122008	12	20	8	28,10	8
119	JH4122010	12	20	10	31,11	8
120	JH4122012	12	20	12	34,12	8
121	JH4122403	12	24	3	24,41	8
122	JH4122404	12	24	4	26,10	8
123	JH4122405	12	24	5	27,79	8
124	JH4122406	12	24	6	29,48	8
125	JH4122408	12	24	8	32,87	8
126	JH4122410	12	24	10	36,26	8
127	JH4122412	12	24	12	39,64	8
128	JH4140403	14	4	3	6,04	4
129	JH4140404	14	4	4	6,88	4
130	JH4140603	14	6	3	8,23	4
131	JH4140604	14	6	4	9,18	4
132	JH4140605	14	6	5	10,12	4
133	JH4140606	14	6	6	11,06	4
134	JH4140803	14	8	3	10,43	4
135	JH4140804	14	8	4	11,47	4
136	JH4140805	14	8	5	12,50	4
137	JH4140806	14	8	6	13,54	4
138	JH4140808	14	8	8	15,61	4
139	JH4141003	14	10	3	12,63	6
140	JH4141004	14	10	4	13,76	6
141	JH4141005	14	10	5	14,89	6
142	JH4141006	14	10	6	16,02	6
143	JH4141008	14	10	8	18,27	6
144	JH4141010	14	10	10	20,53	6
145	JH4141203	14	12	3	14,83	6
146	JH4141204	14	12	4	16,05	6
147	JH4141205	14	12	5	17,28	6
148	JH4141206	14	12	6	18,50	6
149	JH4141208	14	12	8	20,94	6
150	JH4141210	14	12	10	23,39	6
151	JH4141403	14	14	3	17,03	6
152	JH4141404	14	14	4	18,34	6
153	JH4141405	14	14	5	19,66	6
154	JH4141406	14	14	6	20,98	6
155	JH4141408	14	14	8	23,61	6
156	JH4141410	14	14	10	26,25	6
157	JH4141412	14	14	12	28,88	6
158	JH4141603	14	16	3	19,23	8
159	JH4141604	14	16	4	20,64	8
160	JH4141605	14	16	5	22,05	8
161	JH4141606	14	16	6	23,46	8
162	JH4141608	14	16	8	26,28	8
163	JH4141610	14	16	10	29,10	8
164	JH4141612	14	16	12	31,92	8
165	JH4142003	14	20	3	23,62	8
166	JH4142004	14	20	4	25,22	8
167	JH4142005	14	20	5	26,82	8
168	JH4142006	14	20	6	28,42	8
169	JH4142008	14	20	8	31,62	8
170	JH4142010	14	20	10	34,82	8
171	JH4142012	14	20	12	38,01	8
172	JH4142403	14	24	3	28,02	8
173	JH4142404	14	24	4	29,81	8
174	JH4142405	14	24	5	31,59	8
175	JH4142406	14	24	6	33,38	8
176	JH4142408	14	24	8	36,96	8
177	JH4142410	14	24	10	40,53	8
178	JH4142412	14	24	12	44,10	8
179	JH4160403	16	4	3	6,83	5
180	JH4160404	16	4	4	7,77	5
181	JH4160603	16	6	3	9,31	5
182	JH4160604	16	6	4	10,35	5
183	JH4160605	16	6	5	11,38	5
184	JH4160606	16	6	6	12,41	5
185	JH4160803	16	8	3	11,79	5
186	JH4160804	16	8	4	12,92	5
187	JH4160805	16	8	5	14,05	5
188	JH4160806	16	8	6	15,18	5
189	JH4160808	16	8	8	17,43	5
190	JH4161003	16	10	3	14,27	7
191	JH4161004	16	10	4	15,49	7
192	JH4161005	16	10	5	16,72	7
193	JH4161006	16	10	6	17,94	7
194	JH4161008	16	10	8	20,38	7
195	JH4161010	16	10	10	22,83	7
196	JH4161203	16	12	3	16,75	7
197	JH4161204	16	12	4	18,07	7
198	JH4161205	16	12	5	19,39	7
199	JH4161206	16	12	6	20,70	7
200	JH4161208	16	12	8	23,34	7
201	JH4161210	16	12	10	25,97	7
202	JH4161403	16	14	3	19,23	7
203	JH4161404	16	14	4	20,64	7
204	JH4161405	16	14	5	22,05	7
205	JH4161406	16	14	6	23,47	7
206	JH4161408	16	14	8	26,29	7
207	JH4161410	16	14	10	29,11	7
208	JH4161412	16	14	12	31,93	7
209	JH4161603	16	16	3	21,71	9
210	JH4161604	16	16	4	23,22	9
211	JH4161605	16	16	5	24,72	9
212	JH4161606	16	16	6	26,23	9
213	JH4161608	16	16	8	29,24	9
214	JH4161610	16	16	10	32,25	9
215	JH4161612	16	16	12	35,26	9
216	JH4161616	16	16	16	41,28	9
217	JH4162003	16	20	3	26,67	9
218	JH4162004	16	20	4	28,37	9
219	JH4162005	16	20	5	30,06	9
220	JH4162006	16	20	6	31,75	9
221	JH4162008	16	20	8	35,14	9
222	JH4162010	16	20	10	38,52	9
223	JH4162012	16	20	12	41,91	9
224	JH4162016	16	20	16	48,68	9
225	JH4162403	16	24	3	31,64	9
226	JH4162404	16	24	4	33,52	9
227	JH4162405	16	24	5	35,40	9
228	JH4162406	16	24	6	37,28	9
229	JH4162408	16	24	8	41,04	9
230	JH4162410	16	24	10	44,80	9
231	JH4162412	16	24	12	48,56	9
232	JH4162416	16	24	16	56,09	9
233	JH4163003	16	30	3	39,08	9
234	JH4163004	16	30	4	41,24	9
235	JH4163005	16	30	5	43,40	9
236	JH4163006	16	30	6	45,57	9
237	JH4163008	16	30	8	49,89	9
238	JH4163010	16	30	10	54,22	9
239	JH4163012	16	30	12	58,55	9
240	JH4163016	16	30	16	67,20	9
241	JH4200603	20	6	3	11,46	5
242	JH4200604	20	6	4	12,69	5
243	JH4200605	20	6	5	13,91	5
244	JH4200606	20	6	6	15,13	5
245	JH4200803	20	8	3	14,51	5
246	JH4200804	20	8	4	15,82	5
247	JH4200805	20	8	5	17,14	5
248	JH4200806	20	8	6	18,46	5
249	JH4200808	20	8	8	21,09	5
250	JH4201003	20	10	3	17,55	7
251	JH4201004	20	10	4	18,96	7
252	JH4201005	20	10	5	20,37	7
253	JH4201006	20	10	6	21,78	7
254	JH4201008	20	10	8	24,61	7
255	JH4201010	20	10	10	27,43	7
256	JH4201203	20	12	3	20,60	7
257	JH4201204	20	12	4	22,10	7
258	JH4201205	20	12	5	23,61	7
259	JH4201206	20	12	6	25,11	7
260	JH4201208	20	12	8	28,12	7
261	JH4201210	20	12	10	31,13	7
262	JH4201403	20	14	3	23,64	7
263	JH4201404	20	14	4	25,24	7
264	JH4201405	20	14	5	26,84	7
265	JH4201406	20	14	6	28,44	7
266	JH4201408	20	14	8	31,64	7
267	JH4201410	20	14	10	34,83	7
268	JH4201412	20	14	12	38,03	7
269	JH4201603	20	16	3	26,69	9
270	JH4201604	20	16	4	28,38	9
271	JH4201605	20	16	5	30,07	9
272	JH4201606	20	16	6	31,77	9
273	JH4201608	20	16	8	35,15	9
274	JH4201610	20	16	10	38,54	9
275	JH4201612	20	16	12	41,92	9
276	JH4201616	20	16	16	48,69	9
277	JH4202003	20	20	3	32,78	9
278	JH4202004	20	20	4	34,66	9
279	JH4202005	20	20	5	36,54	9
280	JH4202006	20	20	6	38,42	9
281	JH4202008	20	20	8	42,18	9
282	JH4202010	20	20	10	45,94	9
283	JH4202012	20	20	12	49,71	9
284	JH4202016	20	20	16	57,23	9
285	JH4202403	20	24	3	38,87	9
286	JH4202404	20	24	4	40,94	9
287	JH4202405	20	24	5	43,00	9
288	JH4202406	20	24	6	45,07	9
289	JH4202408	20	24	8	49,21	9
290	JH4202410	20	24	10	53,35	9
291	JH4202412	20	24	12	57,49	9
292	JH4202416	20	24	16	65,76	9
293	JH4203003	20	30	3	48,00	9
294	JH4203004	20	30	4	50,35	9
295	JH4203005	20	30	5	52,70	9
296	JH4203006	20	30	6	55,05	9
297	JH4203008	20	30	8	59,76	9
298	JH4203010	20	30	10	64,46	9
299	JH4203012	20	30	12	69,16	9
300	JH4203016	20	30	16	78,57	9
301	JH4240603	24	6	3	13,61	5
302	JH4240604	24	6	4	15,03	5
303	JH4240605	24	6	5	16,44	5
304	JH4240606	24	6	6	17,85	5
305	JH4240803	24	8	3	17,22	5
306	JH4240804	24	8	4	18,73	5
307	JH4240805	24	8	5	20,23	5
308	JH4240806	24	8	6	21,74	5
309	JH4240808	24	8	8	24,75	5
310	JH4241003	24	10	3	20,83	7
311	JH4241004	24	10	4	22,43	7
312	JH4241005	24	10	5	24,03	7
313	JH4241006	24	10	6	25,63	7
314	JH4241008	24	10	8	28,83	7
315	JH4241010	24	10	10	32,02	7
316	JH4241203	24	12	3	24,44	7
317	JH4241204	24	12	4	26,13	7
318	JH4241205	24	12	5	27,83	7
319	JH4241206	24	12	6	29,52	7
320	JH4241208	24	12	8	32,91	7
321	JH4241210	24	12	10	36,29	7
322	JH4241403	24	14	3	28,05	7
323	JH4241404	24	14	4	29,84	7
324	JH4241405	24	14	5	31,62	7
325	JH4241406	24	14	6	33,41	7
326	JH4241408	24	14	8	36,99	7
327	JH4241410	24	14	10	40,56	7
328	JH4241412	24	14	12	44,13	7
329	JH4241603	24	16	3	31,66	9
330	JH4241604	24	16	4	33,54	9
331	JH4241605	24	16	5	35,42	9
332	JH4241606	24	16	6	37,30	9
333	JH4241608	24	16	8	41,07	9
334	JH4241610	24	16	10	44,83	9
335	JH4241612	24	16	12	48,59	9
336	JH4241616	24	16	16	56,11	9
337	JH4242003	24	20	3	38,88	9
338	JH4242004	24	20	4	40,95	9
339	JH4242005	24	20	5	43,02	9
340	JH4242006	24	20	6	45,09	9
341	JH4242008	24	20	8	49,22	9
342	JH4242010	24	20	10	53,36	9
343	JH4242012	24	20	12	57,50	9
344	JH4242016	24	20	16	65,78	9
345	JH4242403	24	24	3	46,10	9
346	JH4242404	24	24	4	48,35	9
347	JH4242405	24	24	5	50,61	9
348	JH4242406	24	24	6	52,87	9
349	JH4242408	24	24	8	57,38	9
350	JH4242410	24	24	10	61,90	9
351	JH4242412	24	24	12	66,41	9
352	JH4242416	24	24	16	75,44	9
353	JH4243003	24	30	3	56,92	9
354	JH4243004	24	30	4	59,46	9
355	JH4243005	24	30	5	62,00	9
356	JH4243006	24	30	6	64,54	9
357	JH4243008	24	30	8	69,62	9
358	JH4243010	24	30	10	74,70	9
359	JH4243012	24	30	12	79,78	9
360	JH4243016	24	30	16	89,94	9
361	JH4300803	30	8	3	21,30	5
362	JH4300804	30	8	4	23,08	5
363	JH4300805	30	8	5	24,87	5
364	JH4300806	30	8	6	26,66	5
365	JH4300808	30	8	8	30,23	5
366	JH4301003	30	10	3	25,75	7
367	JH4301004	30	10	4	27,63	7
368	JH4301005	30	10	5	29,52	7
369	JH4301006	30	10	6	31,40	7
370	JH4301008	30	10	8	35,16	7
371	JH4301010	30	10	10	38,92	7
372	JH4301203	30	12	3	30,21	7
373	JH4301204	30	12	4	32,18	7
374	JH4301205	30	12	5	34,16	7
375	JH4301206	30	12	6	36,13	7
376	JH4301208	30	12	8	40,08	7
377	JH4301210	30	12	10	44,03	7
378	JH4301403	30	14	3	34,66	7
379	JH4301404	30	14	4	36,73	7
380	JH4301405	30	14	5	38,80	7
381	JH4301406	30	14	6	40,87	7
382	JH4301408	30	14	8	45,01	7
383	JH4301410	30	14	10	49,15	7
384	JH4301412	30	14	12	53,29	7
385	JH4301603	30	16	3	39,12	9
386	JH4301604	30	16	4	41,28	9
387	JH4301605	30	16	5	43,45	9
388	JH4301606	30	16	6	45,61	9
389	JH4301608	30	16	8	49,94	9
390	JH4301610	30	16	10	54,26	9
391	JH4301612	30	16	12	58,59	9
392	JH4301616	30	16	16	67,24	9
393	JH4302003	30	20	3	48,03	9
394	JH4302004	30	20	4	50,38	9
395	JH4302005	30	20	5	52,73	9
396	JH4302006	30	20	6	55,09	9
397	JH4302008	30	20	8	59,79	9
398	JH4302010	30	20	10	64,49	9
399	JH4302012	30	20	12	69,19	9
400	JH4302016	30	20	16	78,60	9
401	JH4302403	30	24	3	56,94	9
402	JH4302404	30	24	4	59,48	9
403	JH4302405	30	24	5	62,02	9
404	JH4302406	30	24	6	64,56	9
405	JH4302408	30	24	8	69,64	9
406	JH4302410	30	24	10	74,72	9
407	JH4302412	30	24	12	79,80	9
408	JH4302416	30	24	16	89,95	9
409	JH4303003	30	30	3	70,31	9
410	JH4303004	30	30	4	73,13	9
411	JH4303005	30	30	5	75,95	9
412	JH4303006	30	30	6	78,77	9
413	JH4303008	30	30	8	84,42	9
414	JH4303010	30	30	10	90,06	9
415	JH4303012	30	30	12	95,70	9
416	JH4303016	30	30	16	106,99	9
	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS

NEMA Junction Box, 4 JIC ENCLOSURE WITH HINGED COVER

SERIES JH4

JH4

Type 4

NEMA Trough, 4 TROUGH ENCLOSURE WITH HINGED COVER AND CLAMPS

NEMA Trough, 4 TROUGH ENCLOSURE WITH HINGED COVER AND QUARTER TURN LATCHES

NEMA Junction Box, 4 JIC ENCLOSURE WITH HINGED COVER

NEMA Junction Box, 4 JIC ENCLOSURE WITH LIFT-OFF COVER

NEMA Junction Box, 4 JIC ENCLOSURE WITH HINGED COVER AND QUARTER TURN LATCHES

NEMA Junction Box, 4 IH ENCLOSURE WITH QUARTER TURN LATCHES

Family Junction Box

NEMA Junction Box, 12 JIC 30MM PUSHBUTTON EXTRA LARGE ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 12 (316L STAINLESS STEEL) JIC ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 12 JIC CONSOLET ENCLOSURE WITH HINGED COVER

NEMA Junction Box, 12 (304 STAINLESS STEEL) JIC CONSOLET ENCLOSURE WITH HINGED COVER

NEMA Junction Box, 12 (316L STAINLESS STEEL) JIC CONSOLET ENCLOSURE WITH HINGED COVER

NEMA Junction Box, 4 JIC ENCLOSURE WITH HINGED COVER
