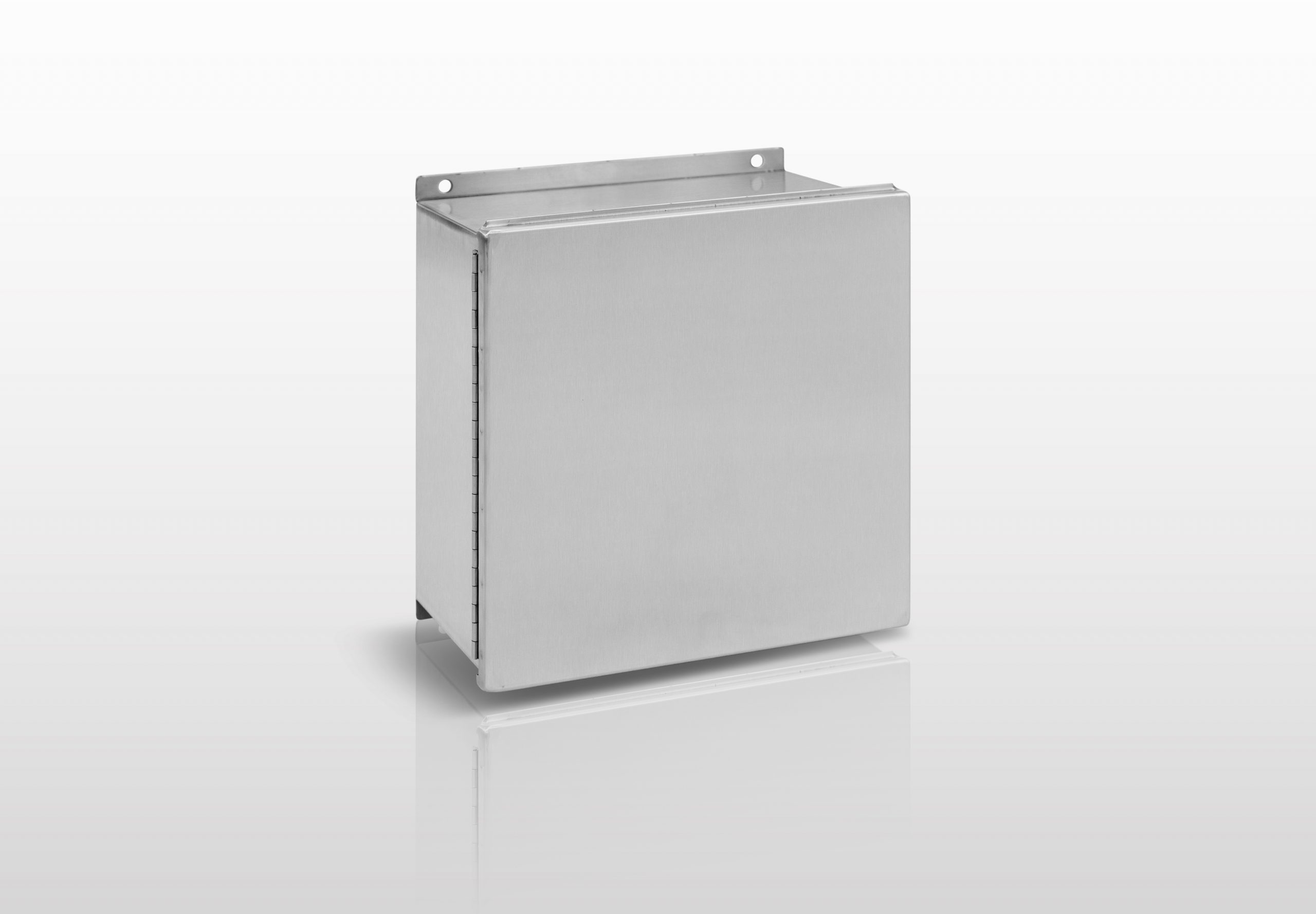

NEMA Junction Box, 4X (304 STAINLESS STEEL) JIC ENCLOSURE WITH HINGED COVER

SERIES JH4S

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Continuously hinged door allows for easy access to internal components
• Designed for indoor or outdoor use and will protect components from dust, dirt, oil, hose directed water, and other contaminants in highly corrosive enviroments or when sanitary conditions are a requirement

• NEMA Type Junction Box, 4X
• CSA Type Junction Box, 4X
• UL Type Junction Box, 4X

TRY OUR CONFIGURATOR

• Fabricated from 16 or 14 gauge type 304 stainless steel steel with seam welds that are ground smooth
• Door is also fabricated from type 304 stainless steel
• Door is secured with polished 304 stainless steel clamps
• Includes a removable 14 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Mounting feet are formed from enclosure body, reducing potential corrosion
• Enclosure exterior is polished to a #4 finish
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

JH4S.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS
1	JH4S040403	4	4	3	1,88	1
2	JH4S040404	4	4	4	2,26	1
3	JH4S040603	4	6	3	2,87	1
4	JH4S040604	4	6	4	3,34	1
5	JH4S060403	6	4	3	2,87	1
6	JH4S060404	6	4	4	3,34	1
7	JH4S060603	6	6	3	3,95	1
8	JH4S060604	6	6	4	4,51	1
9	JH4S060605	6	6	5	5,07	1
10	JH4S060606	6	6	6	5,64	1
11	JH4S060803	6	8	3	5,02	1
12	JH4S060804	6	8	4	5,68	1
13	JH4S060805	6	8	5	6,34	1
14	JH4S060806	6	8	6	7,00	1
15	JH4S061003	6	10	3	6,10	1
16	JH4S061004	6	10	4	6,85	1
17	JH4S061005	6	10	5	7,60	1
18	JH4S061006	6	10	6	8,35	1
19	JH4S061203	6	12	3	7,17	1
20	JH4S061204	6	12	4	8,02	1
21	JH4S061205	6	12	5	8,87	1
22	JH4S061206	6	12	6	9,71	1
23	JH4S080403	8	4	3	3,65	1
24	JH4S080404	8	4	4	4,22	1
25	JH4S080603	8	6	3	5,01	1
26	JH4S080604	8	6	4	5,67	1
27	JH4S080605	8	6	5	6,32	1
28	JH4S080606	8	6	6	6,98	1
29	JH4S080803	8	8	3	6,36	1
30	JH4S080804	8	8	4	7,11	1
31	JH4S080805	8	8	5	7,86	1
32	JH4S080806	8	8	6	8,62	1
33	JH4S080808	8	8	8	10,12	1
34	JH4S081004	8	10	4	8,56	1
35	JH4S081005	8	10	5	9,40	1
36	JH4S081006	8	10	6	10,25	1
37	JH4S081008	8	10	8	11,94	1
38	JH4S081203	8	12	3	9,06	1
39	JH4S081204	8	12	4	10,00	1
40	JH4S081205	8	12	5	10,94	1
41	JH4S081206	8	12	6	11,88	1
42	JH4S081208	8	12	8	13,77	1
43	JH4S081403	8	14	3	10,41	1
44	JH4S081404	8	14	4	11,45	1
45	JH4S081405	8	14	5	12,48	1
46	JH4S081406	8	14	6	13,52	1
47	JH4S081408	8	14	8	15,59	1
48	JH4S100403	10	4	3	4,45	2
49	JH4S100404	10	4	4	5,11	2
50	JH4S100603	10	6	3	6,08	2
51	JH4S100604	10	6	4	6,84	2
52	JH4S100605	10	6	5	7,59	2
53	JH4S100606	10	6	6	8,34	2
54	JH4S100803	10	8	3	7,72	2
55	JH4S100804	10	8	4	8,56	2
56	JH4S100805	10	8	5	9,41	2
57	JH4S100806	10	8	6	10,26	2
58	JH4S100808	10	8	8	11,95	2
59	JH4S101003	10	10	3	9,35	2
60	JH4S101004	10	10	4	10,29	2
61	JH4S101005	10	10	5	11,23	2
62	JH4S101006	10	10	6	12,17	2
63	JH4S101008	10	10	8	14,05	2
64	JH4S101010	10	10	10	15,93	2
65	JH4S101203	10	12	3	10,99	2
66	JH4S101204	10	12	4	12,02	2
67	JH4S101205	10	12	5	13,05	2
68	JH4S101206	10	12	6	14,09	2
69	JH4S101208	10	12	8	16,16	2
70	JH4S101210	10	12	10	18,23	2
71	JH4S101403	10	14	3	12,62	2
72	JH4S101404	10	14	4	13,75	2
73	JH4S101405	10	14	5	14,88	2
74	JH4S101406	10	14	6	16,01	2
75	JH4S101408	10	14	8	18,26	2
76	JH4S101410	10	14	10	20,52	2
77	JH4S120403	12	4	3	5,24	2
78	JH4S120404	12	4	4	5,99	2
79	JH4S120603	12	6	3	7,16	2
80	JH4S120604	12	6	4	8,01	2
81	JH4S120605	12	6	5	8,85	2
82	JH4S120606	12	6	6	9,70	2
83	JH4S120803	12	8	3	9,07	2
84	JH4S120804	12	8	4	10,02	2
85	JH4S120805	12	8	5	10,96	2
86	JH4S120806	12	8	6	11,90	2
87	JH4S120808	12	8	8	13,78	2
88	JH4S121003	12	10	3	10,99	2
89	JH4S121004	12	10	4	12,03	2
90	JH4S121005	12	10	5	13,06	2
91	JH4S121006	12	10	6	14,09	2
92	JH4S121008	12	10	8	16,16	2
93	JH4S121010	12	10	10	18,23	2
94	JH4S121203	12	12	3	12,91	2
95	JH4S121204	12	12	4	14,04	2
96	JH4S121205	12	12	5	15,16	2
97	JH4S121206	12	12	6	16,29	2
98	JH4S121208	12	12	8	18,55	2
99	JH4S121210	12	12	10	20,81	2
100	JH4S121403	12	14	3	14,82	2
101	JH4S121404	12	14	4	16,05	2
102	JH4S121405	12	14	5	17,27	2
103	JH4S121406	12	14	6	18,49	2
104	JH4S121408	12	14	8	20,94	2
105	JH4S121410	12	14	10	23,38	2
106	JH4S121412	12	14	12	25,83	2
107	JH4S121603	12	16	3	16,74	2
108	JH4S121604	12	16	4	18,06	2
109	JH4S121605	12	16	5	19,37	2
110	JH4S121606	12	16	6	20,69	2
111	JH4S121608	12	16	8	23,32	2
112	JH4S121610	12	16	10	25,96	2
113	JH4S121612	12	16	12	28,59	2
114	JH4S122003	12	20	3	20,57	2
115	JH4S122004	12	20	4	22,08	2
116	JH4S122005	12	20	5	23,58	2
117	JH4S122006	12	20	6	25,09	2
118	JH4S122008	12	20	8	28,10	2
119	JH4S122010	12	20	10	31,11	2
120	JH4S122012	12	20	12	34,12	2
121	JH4S122403	12	24	3	24,41	2
122	JH4S122404	12	24	4	26,10	2
123	JH4S122405	12	24	5	27,79	2
124	JH4S122406	12	24	6	29,48	2
125	JH4S122408	12	24	8	32,87	2
126	JH4S122410	12	24	10	36,26	2
127	JH4S122412	12	24	12	39,64	2
128	JH4S140403	14	4	3	6,04	2
129	JH4S140404	14	4	4	6,88	2
130	JH4S140603	14	6	3	8,23	2
131	JH4S140604	14	6	4	9,18	2
132	JH4S140605	14	6	5	10,12	2
133	JH4S140606	14	6	6	11,06	2
134	JH4S140803	14	8	3	10,43	2
135	JH4S140804	14	8	4	11,47	2
136	JH4S140805	14	8	5	12,50	2
137	JH4S140806	14	8	6	13,54	2
138	JH4S140808	14	8	8	15,61	2
139	JH4S141003	14	10	3	12,63	2
140	JH4S141004	14	10	4	13,76	2
141	JH4S141005	14	10	5	14,89	2
142	JH4S141006	14	10	6	16,02	2
143	JH4S141008	14	10	8	18,27	2
144	JH4S141010	14	10	10	20,53	2
145	JH4S141203	14	12	3	14,83	2
146	JH4S141204	14	12	4	16,05	2
147	JH4S141205	14	12	5	17,28	2
148	JH4S141206	14	12	6	18,50	2
149	JH4S141208	14	12	8	20,94	2
150	JH4S141210	14	12	10	23,39	2
151	JH4S141403	14	14	3	17,03	2
152	JH4S141404	14	14	4	18,34	2
153	JH4S141405	14	14	5	19,66	2
154	JH4S141406	14	14	6	20,98	2
155	JH4S141408	14	14	8	23,61	2
156	JH4S141410	14	14	10	26,25	2
157	JH4S141412	14	14	12	28,88	2
158	JH4S141603	14	16	3	19,23	2
159	JH4S141604	14	16	4	20,64	2
160	JH4S141605	14	16	5	22,05	2
161	JH4S141606	14	16	6	23,46	2
162	JH4S141608	14	16	8	26,28	2
163	JH4S141610	14	16	10	29,10	2
164	JH4S141612	14	16	12	31,92	2
165	JH4S142003	14	20	3	23,62	2
166	JH4S142004	14	20	4	25,22	2
167	JH4S142005	14	20	5	26,82	2
168	JH4S142006	14	20	6	28,42	2
169	JH4S142008	14	20	8	31,62	2
170	JH4S142010	14	20	10	34,82	2
171	JH4S142012	14	20	12	38,01	2
172	JH4S142403	14	24	3	28,02	2
173	JH4S142404	14	24	4	29,81	2
174	JH4S142405	14	24	5	31,59	2
175	JH4S142406	14	24	6	33,38	2
176	JH4S142408	14	24	8	36,96	2
177	JH4S142410	14	24	10	40,53	2
178	JH4S142412	14	24	12	44,10	2
179	JH4S160403	16	4	3	6,83	3
180	JH4S160404	16	4	4	7,77	3
181	JH4S160603	16	6	3	9,31	3
182	JH4S160604	16	6	4	10,35	3
183	JH4S160605	16	6	5	11,38	3
184	JH4S160606	16	6	6	12,41	3
185	JH4S160803	16	8	3	11,79	3
186	JH4S160804	16	8	4	12,92	3
187	JH4S160805	16	8	5	14,05	3
188	JH4S160806	16	8	6	15,18	3
189	JH4S160808	16	8	8	17,43	3
190	JH4S161003	16	10	3	14,27	3
191	JH4S161004	16	10	4	15,49	3
192	JH4S161005	16	10	5	16,72	3
193	JH4S161006	16	10	6	17,94	3
194	JH4S161008	16	10	8	20,38	3
195	JH4S161010	16	10	10	22,83	3
196	JH4S161203	16	12	3	16,75	3
197	JH4S161204	16	12	4	18,07	3
198	JH4S161205	16	12	5	19,39	3
199	JH4S161206	16	12	6	20,70	3
200	JH4S161208	16	12	8	23,34	3
201	JH4S161210	16	12	10	25,97	3
202	JH4S161403	16	14	3	19,23	3
203	JH4S161404	16	14	4	20,64	3
204	JH4S161405	16	14	5	22,05	3
205	JH4S161406	16	14	6	23,47	3
206	JH4S161408	16	14	8	26,29	3
207	JH4S161410	16	14	10	29,11	3
208	JH4S161412	16	14	12	31,93	3
209	JH4S161603	16	16	3	21,71	3
210	JH4S161604	16	16	4	23,22	3
211	JH4S161605	16	16	5	24,72	3
212	JH4S161606	16	16	6	26,23	3
213	JH4S161608	16	16	8	29,24	3
214	JH4S161610	16	16	10	32,25	3
215	JH4S161612	16	16	12	35,26	3
216	JH4S161616	16	16	16	41,28	3
217	JH4S162003	16	20	3	26,67	3
218	JH4S162004	16	20	4	28,37	3
219	JH4S162005	16	20	5	30,06	3
220	JH4S162006	16	20	6	31,75	3
221	JH4S162008	16	20	8	35,14	3
222	JH4S162010	16	20	10	38,52	3
223	JH4S162012	16	20	12	41,91	3
224	JH4S162016	16	20	16	48,68	3
225	JH4S162403	16	24	3	31,64	3
226	JH4S162404	16	24	4	33,52	3
227	JH4S162405	16	24	5	35,40	3
228	JH4S162406	16	24	6	37,28	3
229	JH4S162408	16	24	8	41,04	3
230	JH4S162410	16	24	10	44,80	3
231	JH4S162412	16	24	12	48,56	3
232	JH4S162416	16	24	16	56,09	3
233	JH4S163003	16	30	3	39,08	3
234	JH4S163004	16	30	4	41,24	3
235	JH4S163005	16	30	5	43,40	3
236	JH4S163006	16	30	6	45,57	3
237	JH4S163008	16	30	8	49,89	3
238	JH4S163010	16	30	10	54,22	3
239	JH4S163012	16	30	12	58,55	3
240	JH4S163016	16	30	16	67,20	3
241	JH4S200603	20	6	3	11,46	3
242	JH4S200604	20	6	4	12,69	3
243	JH4S200605	20	6	5	13,91	3
244	JH4S200606	20	6	6	15,13	3
245	JH4S200803	20	8	3	14,51	3
246	JH4S200804	20	8	4	15,82	3
247	JH4S200805	20	8	5	17,14	3
248	JH4S200806	20	8	6	18,46	3
249	JH4S200808	20	8	8	21,09	3
250	JH4S201003	20	10	3	17,55	3
251	JH4S201004	20	10	4	18,96	3
252	JH4S201005	20	10	5	20,37	3
253	JH4S201006	20	10	6	21,78	3
254	JH4S201008	20	10	8	24,61	3
255	JH4S201010	20	10	10	27,43	3
256	JH4S201203	20	12	3	20,60	3
257	JH4S201204	20	12	4	22,10	3
258	JH4S201205	20	12	5	23,61	3
259	JH4S201206	20	12	6	25,11	3
260	JH4S201208	20	12	8	28,12	3
261	JH4S201210	20	12	10	31,13	3
262	JH4S201403	20	14	3	23,64	3
263	JH4S201404	20	14	4	25,24	3
264	JH4S201405	20	14	5	26,84	3
265	JH4S201406	20	14	6	28,44	3
266	JH4S201408	20	14	8	31,64	3
267	JH4S201410	20	14	10	34,83	3
268	JH4S201412	20	14	12	38,03	3
269	JH4S201603	20	16	3	26,69	3
270	JH4S201604	20	16	4	28,38	3
271	JH4S201605	20	16	5	30,07	3
272	JH4S201606	20	16	6	31,77	3
273	JH4S201608	20	16	8	35,15	3
274	JH4S201610	20	16	10	38,54	3
275	JH4S201612	20	16	12	41,92	3
276	JH4S201616	20	16	16	48,69	3
277	JH4S202003	20	20	3	32,78	3
278	JH4S202004	20	20	4	34,66	3
279	JH4S202005	20	20	5	36,54	3
280	JH4S202006	20	20	6	38,42	3
281	JH4S202008	20	20	8	42,18	3
282	JH4S202010	20	20	10	45,94	3
283	JH4S202012	20	20	12	49,71	3
284	JH4S202016	20	20	16	57,23	3
285	JH4S202403	20	24	3	38,87	3
286	JH4S202404	20	24	4	40,94	3
287	JH4S202405	20	24	5	43,00	3
288	JH4S202406	20	24	6	45,07	3
289	JH4S202408	20	24	8	49,21	3
290	JH4S202410	20	24	10	53,35	3
291	JH4S202412	20	24	12	57,49	3
292	JH4S202416	20	24	16	65,76	3
293	JH4S203003	20	30	3	48,00	3
294	JH4S203004	20	30	4	50,35	3
295	JH4S203005	20	30	5	52,70	3
296	JH4S203006	20	30	6	55,05	3
297	JH4S203008	20	30	8	59,76	3
298	JH4S203010	20	30	10	64,46	3
299	JH4S203012	20	30	12	69,16	3
300	JH4S203016	20	30	16	78,57	3
301	JH4S240603	24	6	3	13,61	3
302	JH4S240604	24	6	4	15,03	3
303	JH4S240605	24	6	5	16,44	3
304	JH4S240606	24	6	6	17,85	3
305	JH4S240803	24	8	3	17,22	3
306	JH4S240804	24	8	4	18,73	3
307	JH4S240805	24	8	5	20,23	3
308	JH4S240806	24	8	6	21,74	3
309	JH4S240808	24	8	8	24,75	3
310	JH4S241003	24	10	3	20,83	3
311	JH4S241004	24	10	4	22,43	3
312	JH4S241005	24	10	5	24,03	3
313	JH4S241006	24	10	6	25,63	3
314	JH4S241008	24	10	8	28,83	3
315	JH4S241010	24	10	10	32,02	3
316	JH4S241203	24	12	3	24,44	3
317	JH4S241204	24	12	4	26,13	3
318	JH4S241205	24	12	5	27,83	3
319	JH4S241206	24	12	6	29,52	3
320	JH4S241208	24	12	8	32,91	3
321	JH4S241210	24	12	10	36,29	3
322	JH4S241403	24	14	3	28,05	3
323	JH4S241404	24	14	4	29,84	3
324	JH4S241405	24	14	5	31,62	3
325	JH4S241406	24	14	6	33,41	3
326	JH4S241408	24	14	8	36,99	3
327	JH4S241410	24	14	10	40,56	3
328	JH4S241412	24	14	12	44,13	3
329	JH4S241603	24	16	3	31,66	3
330	JH4S241604	24	16	4	33,54	3
331	JH4S241605	24	16	5	35,42	3
332	JH4S241606	24	16	6	37,30	3
333	JH4S241608	24	16	8	41,07	3
334	JH4S241610	24	16	10	44,83	3
335	JH4S241612	24	16	12	48,59	3
336	JH4S241616	24	16	16	56,11	3
337	JH4S242003	24	20	3	38,88	3
338	JH4S242004	24	20	4	40,95	3
339	JH4S242005	24	20	5	43,02	3
340	JH4S242006	24	20	6	45,09	3
341	JH4S242008	24	20	8	49,22	3
342	JH4S242010	24	20	10	53,36	3
343	JH4S242012	24	20	12	57,50	3
344	JH4S242016	24	20	16	65,78	3
345	JH4S242403	24	24	3	46,10	3
346	JH4S242404	24	24	4	48,35	3
347	JH4S242405	24	24	5	50,61	3
348	JH4S242406	24	24	6	52,87	3
349	JH4S242408	24	24	8	57,38	3
350	JH4S242410	24	24	10	61,90	3
351	JH4S242412	24	24	12	66,41	3
352	JH4S242416	24	24	16	75,44	3
353	JH4S243003	24	30	3	56,92	3
354	JH4S243004	24	30	4	59,46	3
355	JH4S243005	24	30	5	62,00	3
356	JH4S243006	24	30	6	64,54	3
357	JH4S243008	24	30	8	69,62	3
358	JH4S243010	24	30	10	74,70	3
359	JH4S243012	24	30	12	79,78	3
360	JH4S243016	24	30	16	89,94	3
361	JH4S300803	30	8	3	21,30	3
362	JH4S300804	30	8	4	23,08	3
363	JH4S300805	30	8	5	24,87	3
364	JH4S300806	30	8	6	26,66	3
365	JH4S300808	30	8	8	30,23	3
366	JH4S301003	30	10	3	25,75	3
367	JH4S301004	30	10	4	27,63	3
368	JH4S301005	30	10	5	29,52	3
369	JH4S301006	30	10	6	31,40	3
370	JH4S301008	30	10	8	35,16	3
371	JH4S301010	30	10	10	38,92	3
372	JH4S301203	30	12	3	30,21	3
373	JH4S301204	30	12	4	32,18	3
374	JH4S301205	30	12	5	34,16	3
375	JH4S301206	30	12	6	36,13	3
376	JH4S301208	30	12	8	40,08	3
377	JH4S301210	30	12	10	44,03	3
378	JH4S301403	30	14	3	34,66	3
379	JH4S301404	30	14	4	36,73	3
380	JH4S301405	30	14	5	38,80	3
381	JH4S301406	30	14	6	40,87	3
382	JH4S301408	30	14	8	45,01	3
383	JH4S301410	30	14	10	49,15	3
384	JH4S301412	30	14	12	53,29	3
385	JH4S301603	30	16	3	39,12	3
386	JH4S301604	30	16	4	41,28	3
387	JH4S301605	30	16	5	43,45	3
388	JH4S301606	30	16	6	45,61	3
389	JH4S301608	30	16	8	49,94	3
390	JH4S301610	30	16	10	54,26	3
391	JH4S301612	30	16	12	58,59	3
392	JH4S301616	30	16	16	67,24	3
393	JH4S302003	30	20	3	48,03	3
394	JH4S302004	30	20	4	50,38	3
395	JH4S302005	30	20	5	52,73	3
396	JH4S302006	30	20	6	55,09	3
397	JH4S302008	30	20	8	59,79	3
398	JH4S302010	30	20	10	64,49	3
399	JH4S302012	30	20	12	69,19	3
400	JH4S302016	30	20	16	78,60	3
401	JH4S302403	30	24	3	56,94	3
402	JH4S302404	30	24	4	59,48	3
403	JH4S302405	30	24	5	62,02	3
404	JH4S302406	30	24	6	64,56	3
405	JH4S302408	30	24	8	69,64	3
406	JH4S302410	30	24	10	74,72	3
407	JH4S302412	30	24	12	79,80	3
408	JH4S302416	30	24	16	89,95	3
409	JH4S303003	30	30	3	70,31	3
410	JH4S303004	30	30	4	73,13	3
411	JH4S303005	30	30	5	75,95	3
412	JH4S303006	30	30	6	78,77	3
413	JH4S303008	30	30	8	84,42	3
414	JH4S303010	30	30	10	90,06	3
415	JH4S303012	30	30	12	95,70	3
416	JH4S303016	30	30	16	106,99	3
	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT	CLAMPS

NEMA Junction Box, 4X (304 STAINLESS STEEL) JIC ENCLOSURE WITH HINGED COVER

SERIES JH4S

JH4S

Type 4X

NEMA Trough, 4X (304 STAINLESS STEEL) TROUGH ENCLOSURE WITH HINGED COVER AND CLAMPS

NEMA Trough, 4X (316L STAINLESS STEEL) TROUGH ENCLOSURE WITH HINGED COVER AND CLAMPS

NEMA Trough, 4X (304 STAINLESS STEEL) TROUGH ENCLOSURE WITH HINGED COVER AND CLAMPS

NEMA Trough, 4X (316L STAINLESS STEEL) TROUGH ENCLOSURE WITH HINGED COVER AND CLAMPS

NEMA Junction Box, 4X (316L STAINLESS STEEL) JIC ENCLOSURE WITH LIFT-OFF COVER

NEMA Junction Box, 4X (304 STAINLESS STEEL) JIC ENCLOSURE WITH HINGED COVER AND QUARTER TURN LATCHES

Family Junction Box

NEMA Junction Box, 12 JIC 30MM PUSHBUTTON EXTRA LARGE ENCLOSURE WITH SCREW COVER

NEMA Junction Box, 4X (316L STAINLESS STEEL) JIC ENCLOSURE WITH HINGED COVER

NEMA Junction Box, 4X (316L STAINLESS STEEL) IH ENCLOSURE WITH QUARTER TURN LATCHES

NEMA Junction Box, 12 JIC ENCLOSURE WITH LIFT-OFF COVER

NEMA Junction Box, 4 JIC ENCLOSURE WITH LIFT-OFF COVER

NEMA Junction Box, 4X (304 STAINLESS STEEL) JIC ENCLOSURE WITH LIFT-OFF COVER
