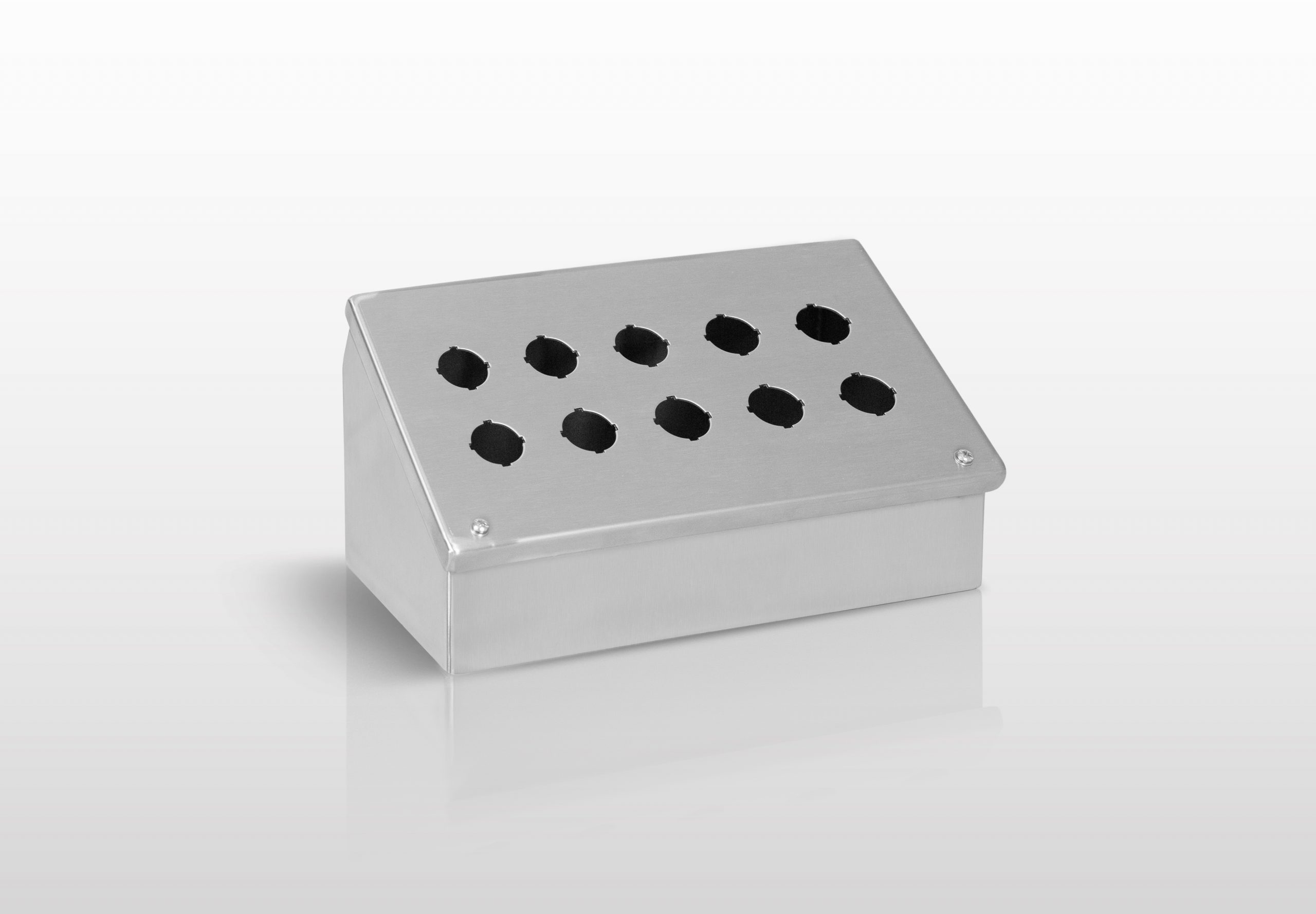

NEMA Pushbutton, 12 (304 STAINLESS STEEL) JIC 30MM PUSHBUTTON CONSOLET ENCLOSURE WITH HINGED COVER - SERIES JHS12SCPB30

NEMA Pushbutton, 12 (304 STAINLESS STEEL) JIC 30MM PUSHBUTTON CONSOLET ENCLOSURE WITH HINGED COVER

SERIES JHS12SCPB30

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Conveniently pre-cut to accomodate installation of 30.5 mm pilot devices in cover
• Sloped cover is ideal for mounting operator control devices
• Designed for indoor use and will protect components from falling dust, dirt, oil, and water

• NEMA Type Pushbutton, 12
• CSA Type Pushbutton, 12
• UL Type Pushbutton, 12

• Fabricated from 16 or 14 gauge type 304 stainless steel with seam welds that are ground smooth
• Door is secured with a continuous hinge and captive machine screws
• Door can be sloped at 30o or 60o
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

JHS12SCPB30.pdf

JHS12SCPB30

Type 12

Family Pushbutton
