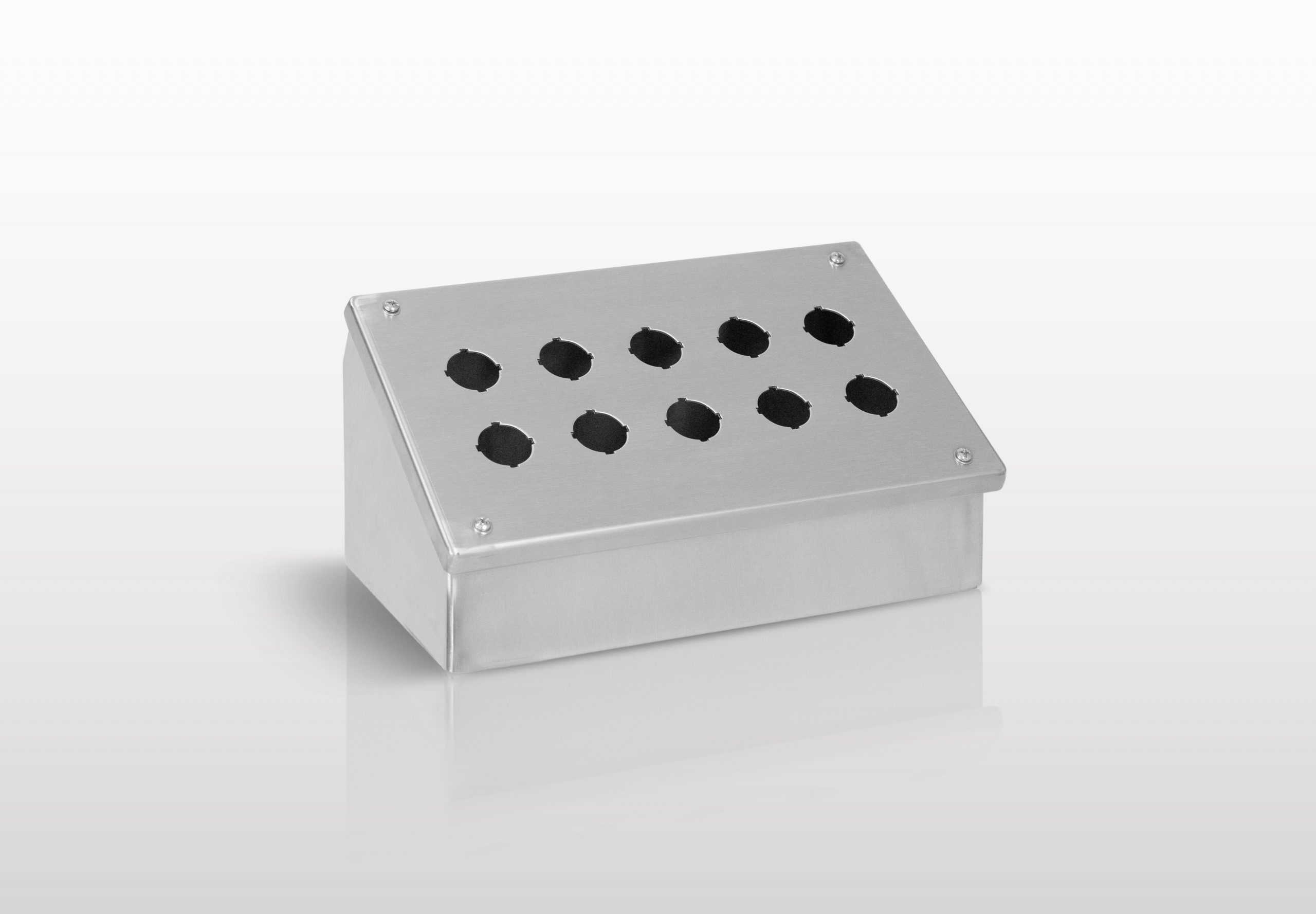

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Conveniently pre-cut to accomodate installation of 30.5 mm pilot devices in cover
• Sloped cover is ideal for mounting operator control devices
• Designed for indoor use and will protect components from falling dust, dirt, oil, and water
• NEMA Type Pushbutton, 12
• CSA Type Pushbutton, 12
• UL Type Pushbutton, 12
• Fabricated from 16 or 14 gauge type 304 stainless steel with seam welds that are ground smooth
• Door is secured with captive machine screws
• Door can be sloped at 30o or 60o
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
———————
• CSA File: 111860
• UL File: E304861
| wdt_ID | PART NUMBER | HEIGHT | WIDTH | DEPTH | WEIGHT |
|---|---|---|---|---|---|
| 1 | JS12SCPB301X1 | 3,50 | 3,25 | 4,88 | 2,08 |
| 2 | JS12SCPB302X1 | 6,00 | 4,00 | 6,13 | 4,01 |
| 3 | JS12SCPB302X2 | 6,00 | 6,25 | 6,13 | 5,29 |
| 4 | JS12SCPB303X1 | 8,25 | 4,00 | 7,25 | 5,73 |
| 5 | JS12SCPB303X2 | 8,25 | 6,25 | 7,25 | 7,37 |
| 6 | JS12SCPB303X3 | 8,25 | 8,50 | 7,25 | 9,01 |
| 7 | JS12SCPB303X4 | 8,25 | 10,75 | 7,25 | 10,65 |
| 8 | JS12SCPB304X1 | 10,50 | 4,00 | 8,38 | 7,69 |
| 9 | JS12SCPB304X2 | 10,50 | 6,25 | 8,38 | 9,68 |
| 10 | JS12SCPB304X3 | 10,50 | 8,50 | 8,38 | 11,68 |
| 11 | JS12SCPB304X4 | 10,50 | 10,75 | 8,38 | 13,68 |
| 12 | JS12SCPB305X1 | 12,75 | 4,00 | 9,50 | 9,88 |
| 13 | JS12SCPB305X2 | 12,75 | 6,25 | 9,50 | 12,24 |
| 14 | JS12SCPB305X3 | 12,75 | 8,50 | 9,50 | 14,59 |
| 15 | JS12SCPB305X4 | 12,75 | 10,75 | 9,50 | 16,94 |
| 16 | JS12SCPB305X5 | 12,75 | 13,00 | 9,50 | 19,30 |
| 17 | JS12SCPB306X1 | 15,00 | 4,00 | 10,63 | 12,31 |
| 18 | JS12SCPB306X2 | 15,00 | 6,25 | 10,63 | 15,03 |
| 19 | JS12SCPB306X3 | 15,00 | 8,50 | 10,63 | 17,74 |
| 20 | JS12SCPB306X4 | 15,00 | 10,75 | 10,63 | 20,45 |
| 21 | JS12SCPB306X5 | 15,00 | 13,00 | 10,63 | 23,16 |
| 22 | JS12SCPB306X6 | 15,00 | 15,25 | 10,63 | 25,87 |
| 23 | JS12SCPB307X1 | 17,25 | 4,00 | 11,75 | 14,99 |
| 24 | JS12SCPB307X2 | 17,25 | 6,25 | 11,75 | 18,05 |
| 25 | JS12SCPB307X3 | 17,25 | 8,50 | 11,75 | 21,12 |
| 26 | JS12SCPB307X4 | 17,25 | 10,75 | 11,75 | 24,19 |
| 27 | JS12SCPB307X5 | 17,25 | 13,00 | 11,75 | 27,26 |
| 28 | JS12SCPB307X6 | 17,25 | 15,25 | 11,75 | 30,33 |
| 29 | JS12SCPB307X7 | 17,25 | 17,50 | 11,75 | 33,40 |
| PART NUMBER | HEIGHT | WIDTH | DEPTH | WEIGHT |
