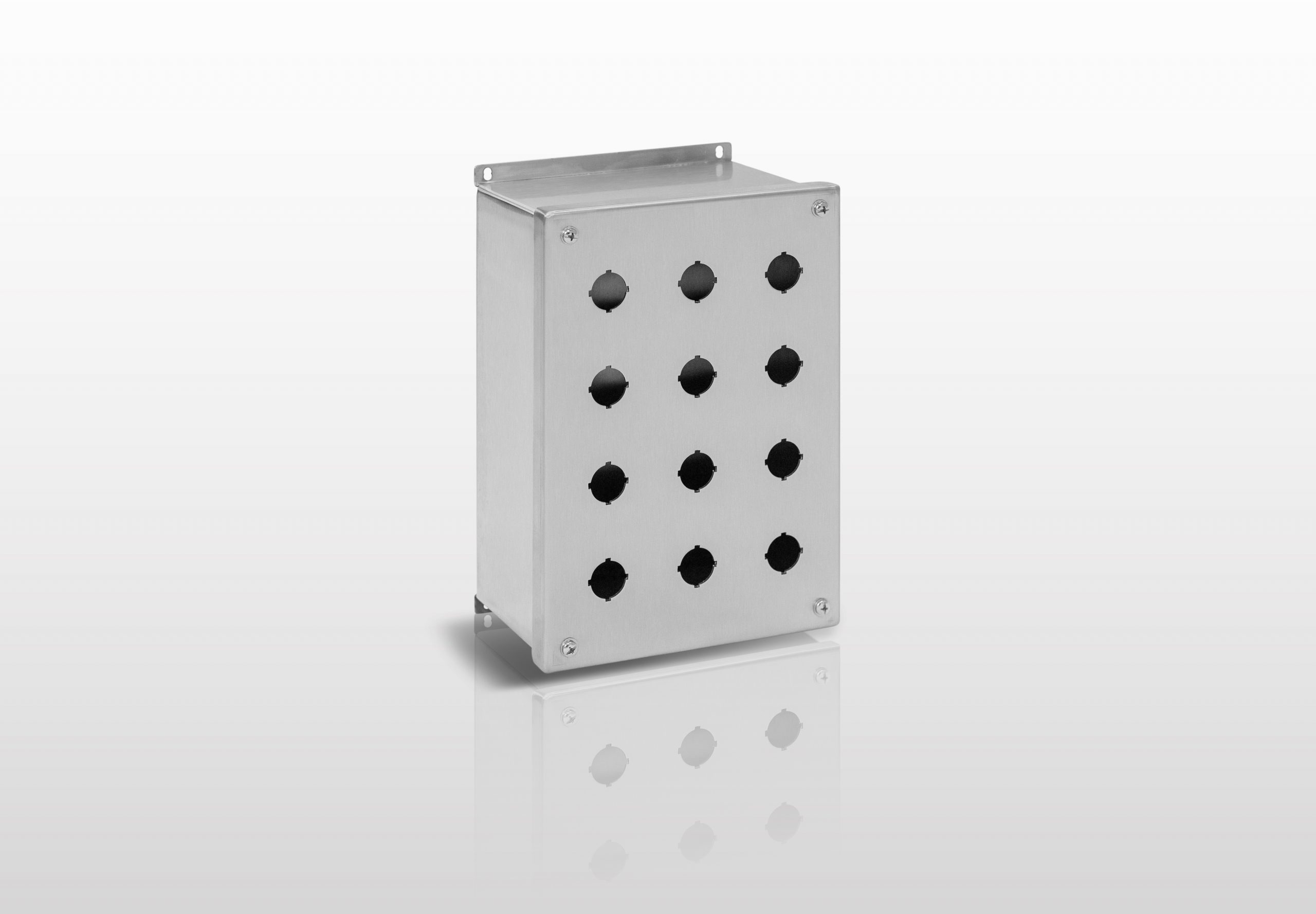

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Conveniently pre-cut to accomodate installation of 22 mm pilot devices in cover
• Depth allows for additional pilot device contact blocks
• Removable cover allows for easy access to internal components
• Designed for indoor use and will protect components from falling dust, dirt, oil and water
• NEMA Type Pushbutton, 12
• CSA Type Pushbutton, 12
• UL Type Pushbutton, 12
• Fabricated from 16 or 14 gauge type 316L stainless steel with seam welds that are ground smooth
• Door is secured with captive machine screws
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Mounting feet are formed from enclosure body, reducing potential corrosion
• Enclosure is polished to a #4 finish
———————
• CSA File: 111860
• UL File: E304861
| wdt_ID | PART NUMBER | HEIGHT | WIDTH | DEPTH | WEIGHT |
|---|---|---|---|---|---|
| 1 | JS12SLDPB221X1 | 3,25 | 2,75 | 3,50 | 1,41 |
| 2 | JS12SLDPB222X1 | 5,13 | 2,75 | 3,50 | 1,96 |
| 3 | JS12SLDPB222X2 | 6,63 | 5,00 | 4,25 | 3,88 |
| 4 | JS12SLDPB223X1 | 7,00 | 2,75 | 3,50 | 2,51 |
| 5 | JS12SLDPB223X2 | 8,50 | 5,00 | 4,25 | 4,70 |
| 6 | JS12SLDPB223X3 | 8,50 | 6,50 | 4,25 | 5,60 |
| 7 | JS12SLDPB224X1 | 8,88 | 2,75 | 3,50 | 3,06 |
| 8 | JS12SLDPB224X2 | 10,38 | 5,00 | 4,25 | 5,51 |
| 9 | JS12SLDPB224X3 | 10,38 | 6,50 | 4,25 | 6,54 |
| 10 | JS12SLDPB224X4 | 10,38 | 8,00 | 4,25 | 7,58 |
| 11 | JS12SLDPB225X1 | 10,75 | 2,75 | 3,50 | 3,61 |
| 12 | JS12SLDPB225X2 | 12,25 | 5,00 | 4,25 | 6,33 |
| 13 | JS12SLDPB225X3 | 12,25 | 6,50 | 4,25 | 7,49 |
| 14 | JS12SLDPB225X4 | 12,25 | 8,00 | 4,25 | 8,66 |
| 15 | JS12SLDPB225X5 | 12,25 | 9,50 | 4,25 | 9,82 |
| 16 | JS12SLDPB226X1 | 12,63 | 2,75 | 3,50 | 4,16 |
| 17 | JS12SLDPB226X2 | 14,13 | 5,00 | 4,25 | 7,14 |
| 18 | JS12SLDPB226X3 | 14,13 | 6,50 | 4,25 | 8,44 |
| 19 | JS12SLDPB226X4 | 14,13 | 8,00 | 4,25 | 9,74 |
| 20 | JS12SLDPB226X5 | 14,13 | 9,50 | 4,25 | 11,03 |
| 21 | JS12SLDPB226X6 | 14,13 | 11,00 | 4,25 | 12,33 |
| 22 | JS12SLDPB227X1 | 14,50 | 2,75 | 3,50 | 4,71 |
| 23 | JS12SLDPB227X2 | 16,00 | 5,00 | 4,25 | 7,96 |
| 24 | JS12SLDPB227X3 | 16,00 | 6,50 | 4,25 | 9,39 |
| 25 | JS12SLDPB227X4 | 16,00 | 8,00 | 4,25 | 10,82 |
| 26 | JS12SLDPB227X5 | 16,00 | 9,50 | 4,25 | 12,24 |
| 27 | JS12SLDPB227X6 | 16,00 | 11,00 | 4,25 | 13,67 |
| 28 | JS12SLDPB227X7 | 16,00 | 12,50 | 4,25 | 15,10 |
| PART NUMBER | HEIGHT | WIDTH | DEPTH | WEIGHT |
