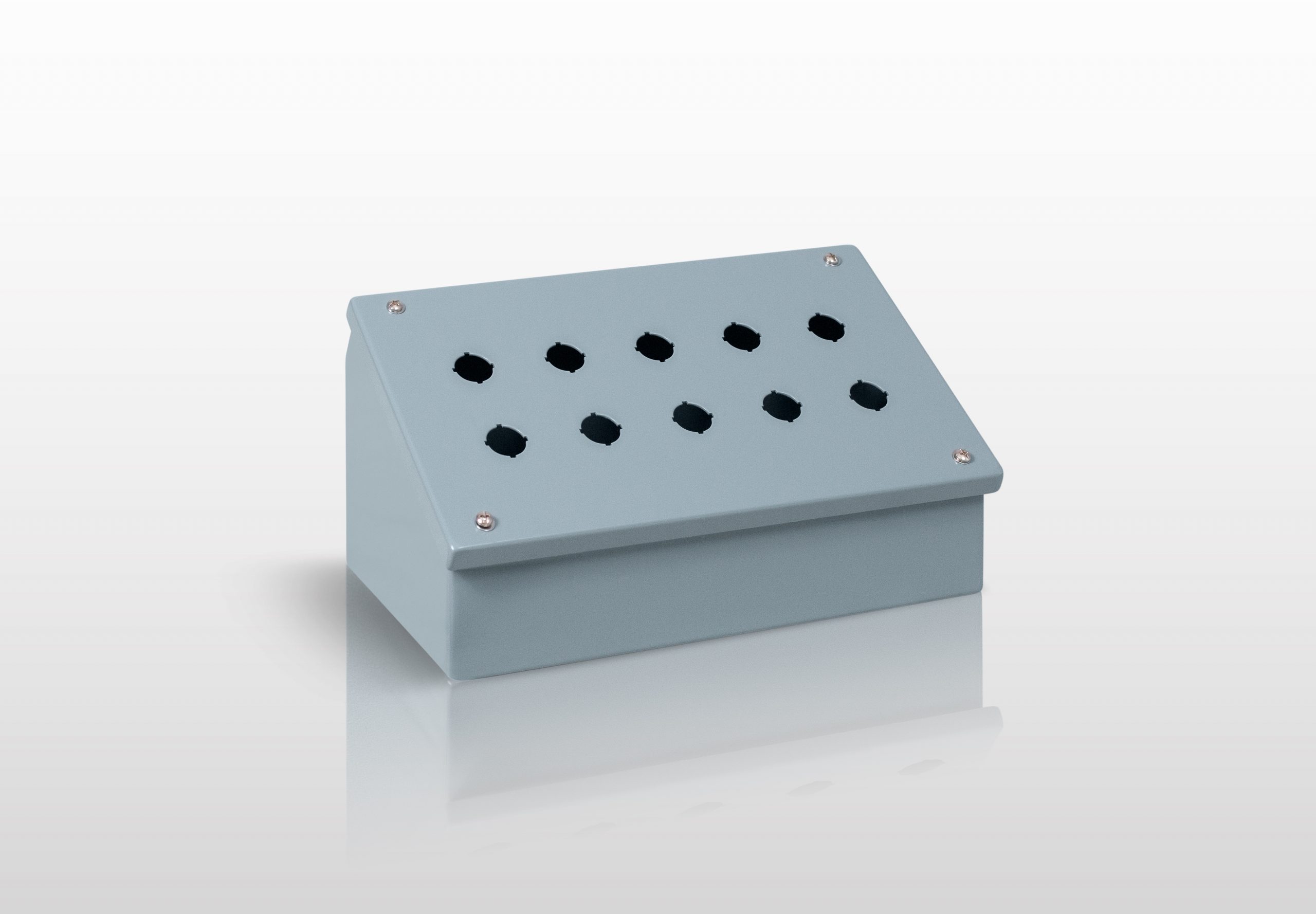

NEMA Pushbutton, 12 JIC 22MM PUSHBUTTON CONSOLET ENCLOSURE WITH SCREW COVER

SERIES JS12CPB22

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Conveniently pre-cut to accomodate installation of 22 mm pilot devices in cover
• Sloped cover is ideal for mounting operator control devices
• Designed for indoor use and will protect components from falling dust, dirt, oil, and water

• NEMA Type Pushbutton, 12
• CSA Type Pushbutton, 12
• UL Type Pushbutton, 12

TRY OUR CONFIGURATOR

• Fabricated from 16 or 14 gauge steel with seam welds that are ground smooth
• Door is secured with captive machine screws
• Door can be sloped at 30o or 60o
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

JS12CPB22.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT
1	JS12CPB221X1	3,50	3,25	4,88	2,08
2	JS12CPB222X1	6,00	4,00	6,13	4,01
3	JS12CPB222X2	6,00	6,25	6,13	5,29
4	JS12CPB223X1	8,25	4,00	7,25	5,73
5	JS12CPB223X2	8,25	6,25	7,25	7,37
6	JS12CPB223X3	8,25	8,50	7,25	9,01
7	JS12CPB223X4	8,25	10,75	7,25	10,65
8	JS12CPB224X1	10,50	4,00	8,38	7,69
9	JS12CPB224X2	10,50	6,25	8,38	9,68
10	JS12CPB224X3	10,50	8,50	8,38	11,68
11	JS12CPB224X4	10,50	10,75	8,38	13,68
12	JS12CPB225X1	12,75	4,00	9,50	9,88
13	JS12CPB225X2	12,75	6,25	9,50	12,24
14	JS12CPB225X3	12,75	8,50	9,50	14,59
15	JS12CPB225X4	12,75	10,75	9,50	16,94
16	JS12CPB225X5	12,75	13,00	9,50	19,30
17	JS12CPB226X1	15,00	4,00	10,63	12,31
18	JS12CPB226X2	15,00	6,25	10,63	15,03
19	JS12CPB226X3	15,00	8,50	10,63	17,74
20	JS12CPB226X4	15,00	10,75	10,63	20,45
21	JS12CPB226X5	15,00	13,00	10,63	23,16
22	JS12CPB226X6	15,00	15,25	10,63	25,87
23	JS12CPB227X1	17,25	4,00	11,75	14,99
24	JS12CPB227X2	17,25	6,25	11,75	18,05
25	JS12CPB227X3	17,25	8,50	11,75	21,12
26	JS12CPB227X4	17,25	10,75	11,75	24,19
27	JS12CPB227X5	17,25	13,00	11,75	27,26
28	JS12CPB227X6	17,25	15,25	11,75	30,33
29	JS12CPB227X7	17,25	17,50	11,75	33,40
	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT

NEMA Pushbutton, 12 JIC 22MM PUSHBUTTON CONSOLET ENCLOSURE WITH SCREW COVER

SERIES JS12CPB22

JS12CPB22

Type 12
