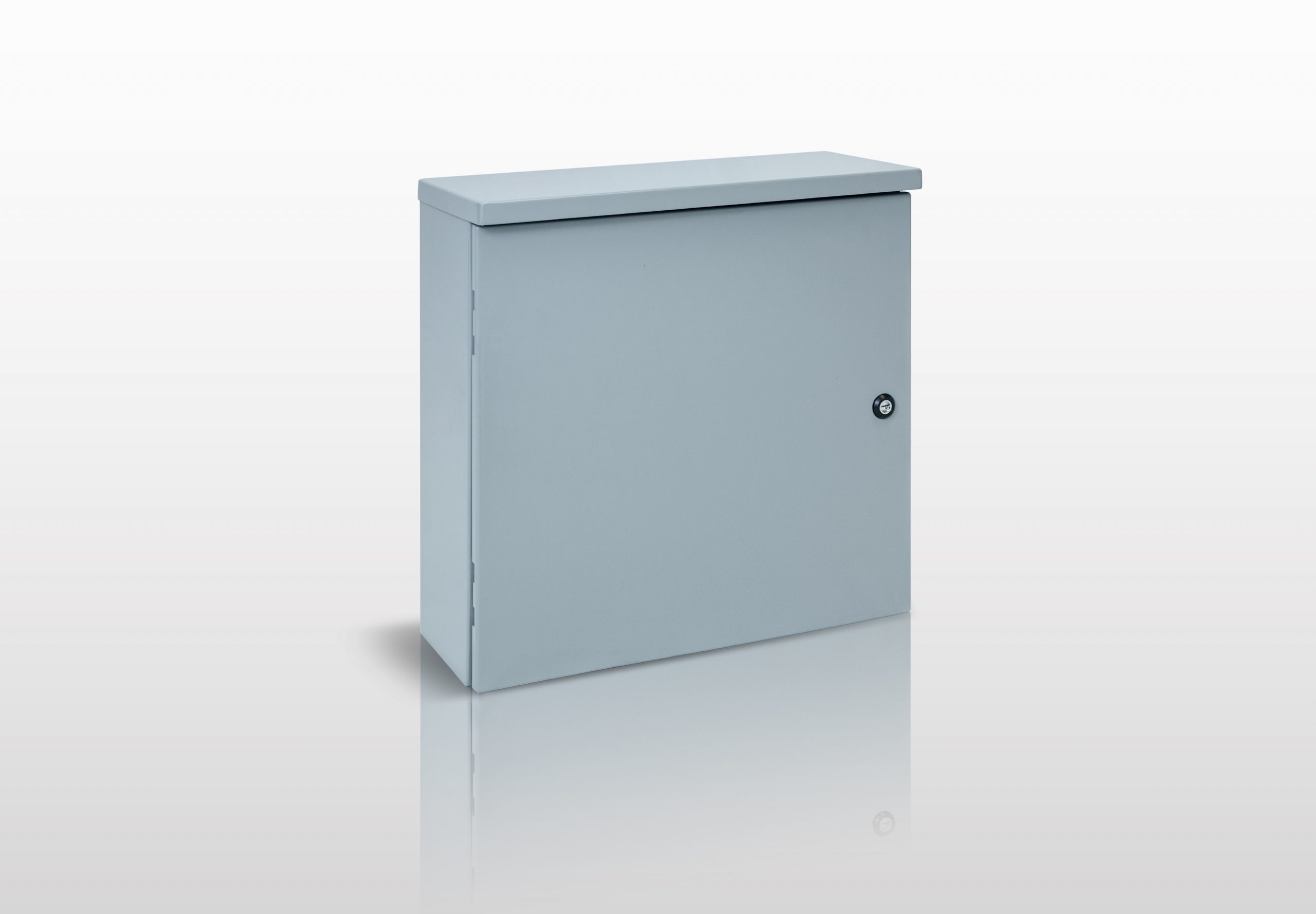

NEMA Quarter Turn, 3R SINGLE DOOR ENCLOSURE WITH QUARTER TURN LATCHES

SERIES Q3R

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Contemporary design with concealed hinges and quarter turn latches allows for easy access to internal components
• Designed for outdoor use and will protect components from falling dust, dirt, water, rain, sleet and snow

• NEMA Type Quarter Turn, 3R
• CSA Type Quarter Turn, 3R
• UL Type Quarter Turn, 3R

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with spot or stitch welded construction
• Door is secured with concealed hinges and one or more quarter turn latches
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

Q3R.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT
1	Q3R121206	12	12	6	18,01
2	Q3R121208	12	12	8	20,17
3	Q3R121210	12	12	10	22,32
4	Q3R121212	12	12	12	24,48
5	Q3R121606	12	16	6	22,53
6	Q3R121608	12	16	8	25,04
7	Q3R121610	12	16	10	27,55
8	Q3R121612	12	16	12	30,07
9	Q3R122006	12	20	6	27,04
10	Q3R122008	12	20	8	29,91
11	Q3R122010	12	20	10	32,79
12	Q3R122012	12	20	12	35,66
13	Q3R122406	12	24	6	31,56
14	Q3R122408	12	24	8	34,79
15	Q3R122410	12	24	10	38,02
16	Q3R122412	12	24	12	41,25
17	Q3R161206	16	12	6	22,97
18	Q3R161208	16	12	8	25,49
19	Q3R161210	16	12	10	28,00
20	Q3R161212	16	12	12	30,52
21	Q3R161606	16	16	6	28,71
22	Q3R161608	16	16	8	31,58
23	Q3R161610	16	16	10	34,46
24	Q3R161612	16	16	12	37,33
25	Q3R161616	16	16	16	43,07
26	Q3R162006	16	20	6	34,44
27	Q3R162008	16	20	8	37,68
28	Q3R162010	16	20	10	40,91
29	Q3R162012	16	20	12	44,14
30	Q3R162016	16	20	16	50,60
31	Q3R162406	16	24	6	40,18
32	Q3R162408	16	24	8	43,77
33	Q3R162410	16	24	10	47,36
34	Q3R162412	16	24	12	50,95
35	Q3R162416	16	24	16	58,13
36	Q3R163006	16	30	6	48,88
37	Q3R163008	16	30	8	53,01
38	Q3R163010	16	30	10	57,14
39	Q3R163012	16	30	12	61,27
40	Q3R163016	16	30	16	69,53
41	Q3R201206	20	12	6	27,69
42	Q3R201208	20	12	8	30,57
43	Q3R201210	20	12	10	33,44
44	Q3R201212	20	12	12	36,31
45	Q3R201606	20	16	6	34,65
46	Q3R201608	20	16	8	37,88
47	Q3R201610	20	16	10	41,11
48	Q3R201612	20	16	12	44,35
49	Q3R201616	20	16	16	50,81
50	Q3R202006	20	20	6	41,61
51	Q3R202008	20	20	8	45,20
52	Q3R202010	20	20	10	48,79
53	Q3R202012	20	20	12	52,38
54	Q3R202016	20	20	16	59,56
55	Q3R202020	20	20	20	66,74
56	Q3R202406	20	24	6	48,56
57	Q3R202408	20	24	8	52,51
58	Q3R202410	20	24	10	56,46
59	Q3R202412	20	24	12	60,41
60	Q3R202416	20	24	16	68,31
61	Q3R202420	20	24	20	76,21
62	Q3R203006	20	30	6	59,09
63	Q3R203008	20	30	8	63,58
64	Q3R203010	20	30	10	68,07
65	Q3R203012	20	30	12	72,56
66	Q3R203016	20	30	16	81,54
67	Q3R203020	20	30	20	90,51
68	Q3R203606	20	36	6	69,53
69	Q3R203608	20	36	8	74,55
70	Q3R203610	20	36	10	79,58
71	Q3R203612	20	36	12	84,61
72	Q3R203616	20	36	16	94,66
73	Q3R203620	20	36	20	104,72
74	Q3R241206	24	12	6	32,59
75	Q3R241208	24	12	8	35,82
76	Q3R241210	24	12	10	39,05
77	Q3R241212	24	12	12	42,28
78	Q3R241606	24	16	6	40,76
79	Q3R241608	24	16	8	44,35
80	Q3R241610	24	16	10	47,95
81	Q3R241612	24	16	12	51,54
82	Q3R241616	24	16	16	58,72
83	Q3R242006	24	20	6	48,94
84	Q3R242008	24	20	8	52,89
85	Q3R242010	24	20	10	56,84
86	Q3R242012	24	20	12	60,79
87	Q3R242016	24	20	16	68,69
88	Q3R242020	24	20	20	76,59
89	Q3R242406	24	24	6	57,12
90	Q3R242408	24	24	8	61,43
91	Q3R242410	24	24	10	65,74
92	Q3R242412	24	24	12	70,04
93	Q3R242416	24	24	16	78,66
94	Q3R242420	24	24	20	87,28
95	Q3R243006	24	30	6	69,48
96	Q3R243008	24	30	8	74,33
97	Q3R243010	24	30	10	79,17
98	Q3R243012	24	30	12	84,02
99	Q3R243016	24	30	16	93,72
100	Q3R243020	24	30	20	103,41
101	Q3R243606	24	36	6	81,74
102	Q3R243608	24	36	8	87,13
103	Q3R243610	24	36	10	92,52
104	Q3R243612	24	36	12	97,90
105	Q3R243616	24	36	16	108,68
106	Q3R243620	24	36	20	119,45
107	Q3R301606	30	16	6	49,77
108	Q3R301608	30	16	8	53,90
109	Q3R301610	30	16	10	58,03
110	Q3R301612	30	16	12	62,16
111	Q3R301616	30	16	16	70,42
112	Q3R302006	30	20	6	59,78
113	Q3R302008	30	20	8	64,27
114	Q3R302010	30	20	10	68,76
115	Q3R302012	30	20	12	73,25
116	Q3R302016	30	20	16	82,22
117	Q3R302020	30	20	20	91,20
118	Q3R302406	30	24	6	69,79
119	Q3R302408	30	24	8	74,64
120	Q3R302410	30	24	10	79,48
121	Q3R302412	30	24	12	84,33
122	Q3R302416	30	24	16	94,03
123	Q3R302420	30	24	20	103,72
124	Q3R303006	30	30	6	84,90
125	Q3R303008	30	30	8	90,28
126	Q3R303010	30	30	10	95,67
127	Q3R303012	30	30	12	101,06
128	Q3R303016	30	30	16	111,83
129	Q3R303020	30	30	20	122,60
130	Q3R303606	30	36	6	99,91
131	Q3R303608	30	36	8	105,83
132	Q3R303610	30	36	10	111,76
133	Q3R303612	30	36	12	117,68
134	Q3R303616	30	36	16	129,53
135	Q3R303620	30	36	20	141,38
136	Q3R362006	36	20	6	70,52
137	Q3R362008	36	20	8	75,55
138	Q3R362010	36	20	10	80,58
139	Q3R362012	36	20	12	85,60
140	Q3R362016	36	20	16	95,66
141	Q3R362020	36	20	20	105,71
142	Q3R362406	36	24	6	82,36
143	Q3R362408	36	24	8	87,75
144	Q3R362410	36	24	10	93,13
145	Q3R362412	36	24	12	98,52
146	Q3R362416	36	24	16	109,29
147	Q3R362420	36	24	20	120,07
148	Q3R363006	36	30	6	100,22
149	Q3R363008	36	30	8	106,14
150	Q3R363010	36	30	10	112,07
151	Q3R363012	36	30	12	117,99
152	Q3R363016	36	30	16	129,84
153	Q3R363020	36	30	20	141,69
154	Q3R363606	36	36	6	117,98
155	Q3R363608	36	36	8	124,44
156	Q3R363610	36	36	10	130,90
157	Q3R363612	36	36	12	137,37
158	Q3R363616	36	36	16	150,30
159	Q3R363620	36	36	20	163,22
160	Q3R422406	42	24	6	95,23
161	Q3R422408	42	24	8	101,15
162	Q3R422410	42	24	10	107,08
163	Q3R422412	42	24	12	113,00
164	Q3R422416	42	24	16	124,85
165	Q3R422420	42	24	20	136,71
166	Q3R423006	42	30	6	115,83
167	Q3R423008	42	30	8	122,30
168	Q3R423010	42	30	10	128,76
169	Q3R423012	42	30	12	135,22
170	Q3R423016	42	30	16	148,15
171	Q3R423020	42	30	20	161,08
172	Q3R423606	42	36	6	136,34
173	Q3R423608	42	36	8	143,34
174	Q3R423610	42	36	10	150,34
175	Q3R423612	42	36	12	157,35
176	Q3R423616	42	36	16	171,35
177	Q3R423620	42	36	20	185,36
178	Q3R482406	48	24	6	107,80
179	Q3R482408	48	24	8	114,27
180	Q3R482410	48	24	10	120,73
181	Q3R482412	48	24	12	127,19
182	Q3R482416	48	24	16	140,12
183	Q3R482420	48	24	20	153,05
184	Q3R483006	48	30	6	131,15
185	Q3R483008	48	30	8	138,16
186	Q3R483010	48	30	10	145,16
187	Q3R483012	48	30	12	152,16
188	Q3R483016	48	30	16	166,17
189	Q3R483020	48	30	20	180,17
190	Q3R483606	48	36	6	154,41
191	Q3R483608	48	36	8	161,95
192	Q3R483610	48	36	10	169,49
193	Q3R483612	48	36	12	177,03
194	Q3R483616	48	36	16	192,11
195	Q3R483620	48	36	20	207,19
196	Q3R602406	60	24	6	132,95
197	Q3R602408	60	24	8	140,49
198	Q3R602410	60	24	10	148,03
199	Q3R602412	60	24	12	155,57
200	Q3R602416	60	24	16	170,66
201	Q3R602420	60	24	20	185,74
202	Q3R603006	60	30	6	161,79
203	Q3R603008	60	30	8	169,87
204	Q3R603010	60	30	10	177,95
205	Q3R603012	60	30	12	186,03
206	Q3R603016	60	30	16	202,19
207	Q3R603020	60	30	20	218,35
208	Q3R603606	60	36	6	190,54
209	Q3R603608	60	36	8	199,16
210	Q3R603610	60	36	10	207,78
211	Q3R603612	60	36	12	216,40
212	Q3R603616	60	36	16	233,63
213	Q3R603620	60	36	20	250,87
214	Q3R722406	72	24	6	158,10
215	Q3R722408	72	24	8	166,72
216	Q3R722410	72	24	10	175,33
217	Q3R722412	72	24	12	183,95
218	Q3R722416	72	24	16	201,19
219	Q3R722420	72	24	20	218,43
220	Q3R723006	72	30	6	192,44
221	Q3R723008	72	30	8	201,59
222	Q3R723010	72	30	10	210,75
223	Q3R723012	72	30	12	219,91
224	Q3R723016	72	30	16	238,22
225	Q3R723020	72	30	20	256,54
226	Q3R723606	72	36	6	226,68
227	Q3R723608	72	36	8	236,37
228	Q3R723610	72	36	10	246,07
229	Q3R723612	72	36	12	255,77
230	Q3R723616	72	36	16	275,16
231	Q3R723620	72	36	20	294,55
