EDI Electrical Enclosures

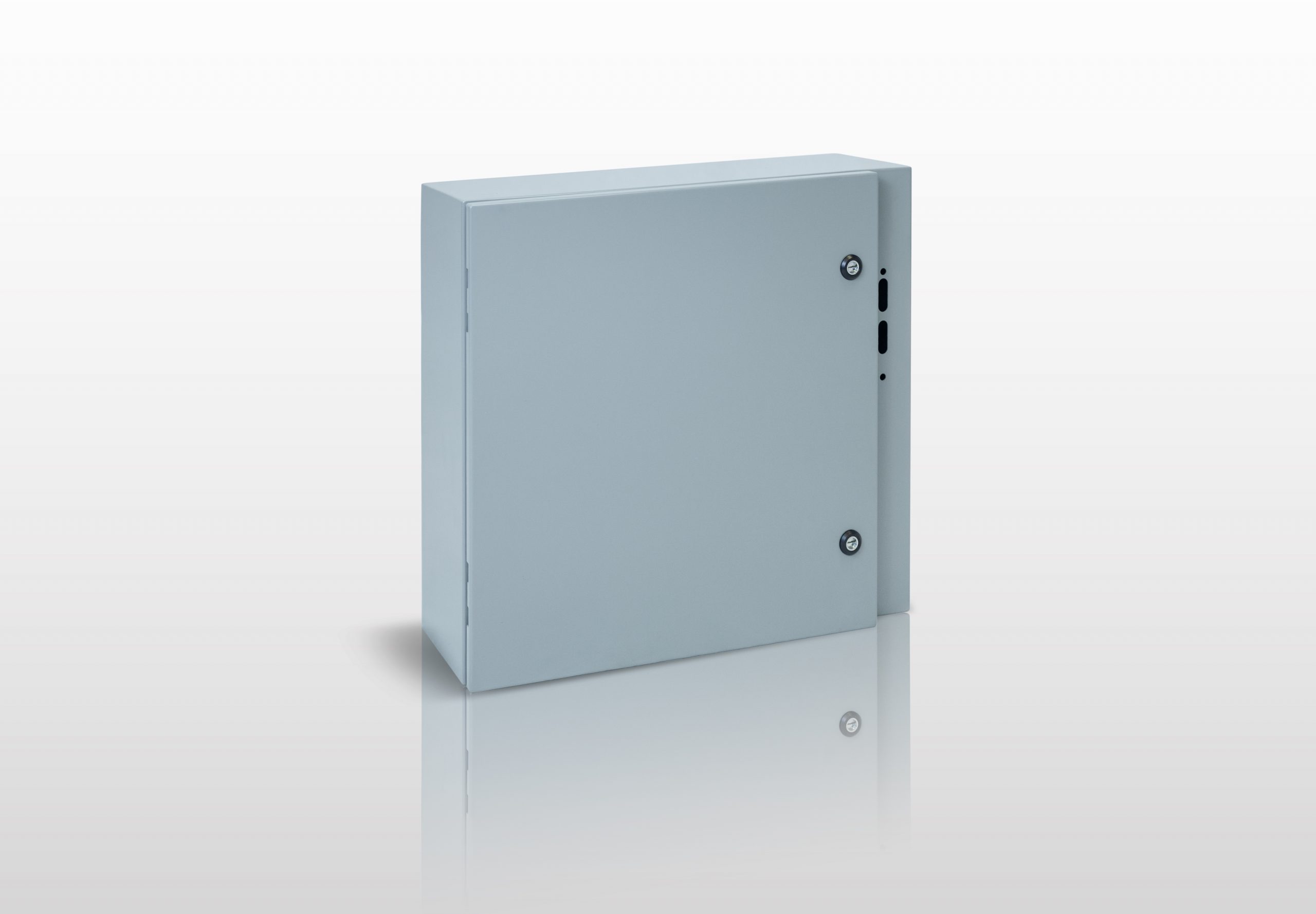

NEMA Quarter Turn, 4 DISCONNECT ENCLOSURE

SERIES Q4D

• Suitable for housing the following flange mount disconnect switches:
1) Allen-Bradley 1494V.
2) ABB Controls variable depth.
3) Cutler-Hammer C361 & C371.
4) General Electric STDA.
5) I-T-E Max-Flex.
6) Square D Class 9422
• Contemporary design with concealed hinges and quarter turn latches allows for easy access to internal components
• Designed for indoor use and will protect components from falling dust, dirt, oil, and hose directed water

• NEMA Type Quarter Turn, 4
• CSA Type Quarter Turn, 4
• UL Type Quarter Turn, 4

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with seam welds that are ground smooth
• Door is secured with concealed hinges and one or more quarter turn latches
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

Q4D.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT
1	Q4D201406	20	14	6	30,03
2	Q4D201408	20	14	8	33,08
3	Q4D201410	20	14	10	36,13
4	Q4D201412	20	14	12	39,19
5	Q4D201806	20	18	6	36,98
6	Q4D201808	20	18	8	40,40
7	Q4D201810	20	18	10	43,81
8	Q4D201812	20	18	12	47,22
9	Q4D201816	20	18	16	54,04
10	Q4D202206	20	22	6	43,94
11	Q4D202208	20	22	8	47,71
12	Q4D202210	20	22	10	51,48
13	Q4D202212	20	22	12	55,25
14	Q4D202216	20	22	16	62,79
15	Q4D202220	20	22	20	70,33
16	Q4D202606	20	26	6	50,90
17	Q4D202608	20	26	8	55,03
18	Q4D202610	20	26	10	59,16
19	Q4D202612	20	26	12	63,28
20	Q4D202616	20	26	16	71,54
21	Q4D202620	20	26	20	79,80
22	Q4D203206	20	32	6	61,43
23	Q4D203208	20	32	8	66,09
24	Q4D203210	20	32	10	70,76
25	Q4D203212	20	32	12	75,43
26	Q4D203216	20	32	16	84,77
27	Q4D203220	20	32	20	94,10
28	Q4D203806	20	38	6	71,86
29	Q4D203808	20	38	8	77,07
30	Q4D203810	20	38	10	82,27
31	Q4D203812	20	38	12	87,48
32	Q4D203816	20	38	16	97,89
33	Q4D203820	20	38	20	108,31
34	Q4D241406	24	14	6	35,28
35	Q4D241408	24	14	8	38,69
36	Q4D241410	24	14	10	42,10
37	Q4D241412	24	14	12	45,51
38	Q4D241806	24	18	6	43,46
39	Q4D241808	24	18	8	47,23
40	Q4D241810	24	18	10	51,00
41	Q4D241812	24	18	12	54,77
42	Q4D241816	24	18	16	62,31
43	Q4D242206	24	22	6	51,63
44	Q4D242208	24	22	8	55,76
45	Q4D242210	24	22	10	59,89
46	Q4D242212	24	22	12	64,02
47	Q4D242216	24	22	16	72,28
48	Q4D242220	24	22	20	80,54
49	Q4D242606	24	26	6	59,81
50	Q4D242608	24	26	8	64,30
51	Q4D242610	24	26	10	68,79
52	Q4D242612	24	26	12	73,28
53	Q4D242616	24	26	16	82,25
54	Q4D242620	24	26	20	91,23
55	Q4D243206	24	32	6	72,17
56	Q4D243208	24	32	8	77,20
57	Q4D243210	24	32	10	82,23
58	Q4D243212	24	32	12	87,25
59	Q4D243216	24	32	16	97,31
60	Q4D243220	24	32	20	107,36
61	Q4D243806	24	38	6	84,44
62	Q4D243808	24	38	8	90,00
63	Q4D243810	24	38	10	95,57
64	Q4D243812	24	38	12	101,14
65	Q4D243816	24	38	16	112,27
66	Q4D243820	24	38	20	123,40
67	Q4D301806	30	18	6	53,00
68	Q4D301808	30	18	8	57,31
69	Q4D301810	30	18	10	61,62
70	Q4D301812	30	18	12	65,93
71	Q4D301816	30	18	16	74,55
72	Q4D302206	30	22	6	63,01
73	Q4D302208	30	22	8	67,68
74	Q4D302210	30	22	10	72,35
75	Q4D302212	30	22	12	77,02
76	Q4D302216	30	22	16	86,35
77	Q4D302220	30	22	20	95,69
78	Q4D302606	30	26	6	73,02
79	Q4D302608	30	26	8	78,05
80	Q4D302610	30	26	10	83,07
81	Q4D302612	30	26	12	88,10
82	Q4D302616	30	26	16	98,16
83	Q4D302620	30	26	20	108,21
84	Q4D303206	30	32	6	88,13
85	Q4D303208	30	32	8	93,69
86	Q4D303210	30	32	10	99,26
87	Q4D303212	30	32	12	104,83
88	Q4D303216	30	32	16	115,96
89	Q4D303220	30	32	20	127,09
90	Q4D303806	30	38	6	103,14
91	Q4D303808	30	38	8	109,25
92	Q4D303810	30	38	10	115,35
93	Q4D303812	30	38	12	121,45
94	Q4D303816	30	38	16	133,66
95	Q4D303820	30	38	20	145,87
96	Q4D362206	36	22	6	74,29
97	Q4D362208	36	22	8	79,50
98	Q4D362210	36	22	10	84,71
99	Q4D362212	36	22	12	89,91
100	Q4D362216	36	22	16	100,33
101	Q4D362220	36	22	20	110,74
102	Q4D362606	36	26	6	86,13
103	Q4D362608	36	26	8	91,70
104	Q4D362610	36	26	10	97,26
105	Q4D362612	36	26	12	102,83
106	Q4D362616	36	26	16	113,96
107	Q4D362620	36	26	20	125,09
108	Q4D363206	36	32	6	103,99
109	Q4D363208	36	32	8	110,09
110	Q4D363210	36	32	10	116,20
111	Q4D363212	36	32	12	122,30
112	Q4D363216	36	32	16	134,51
113	Q4D363220	36	32	20	146,72
114	Q4D363806	36	38	6	121,75
115	Q4D363808	36	38	8	128,39
116	Q4D363810	36	38	10	135,03
117	Q4D363812	36	38	12	141,68
118	Q4D363816	36	38	16	154,96
119	Q4D363820	36	38	20	168,25
120	Q4D422606	42	26	6	99,54
121	Q4D422608	42	26	8	105,64
122	Q4D422610	42	26	10	111,75
123	Q4D422612	42	26	12	117,85
124	Q4D422616	42	26	16	130,06
125	Q4D422620	42	26	20	142,27
126	Q4D423206	42	32	6	120,14
127	Q4D423208	42	32	8	126,78
128	Q4D423210	42	32	10	133,43
129	Q4D423212	42	32	12	140,07
130	Q4D423216	42	32	16	153,36
131	Q4D423220	42	32	20	166,64
132	Q4D423806	42	38	6	140,65
133	Q4D423808	42	38	8	147,83
134	Q4D423810	42	38	10	155,01
135	Q4D423812	42	38	12	162,19
136	Q4D423816	42	38	16	176,56
137	Q4D423820	42	38	20	190,92
138	Q4D482606	48	26	6	112,65
139	Q4D482608	48	26	8	119,29
140	Q4D482610	48	26	10	125,94
141	Q4D482612	48	26	12	132,58
142	Q4D482616	48	26	16	145,87
143	Q4D482620	48	26	20	159,15
144	Q4D483206	48	32	6	136,00
145	Q4D483208	48	32	8	143,18
146	Q4D483210	48	32	10	150,36
147	Q4D483212	48	32	12	157,55
148	Q4D483216	48	32	16	171,91
149	Q4D483220	48	32	20	186,27
150	Q4D483806	48	38	6	159,25
151	Q4D483808	48	38	8	166,98
152	Q4D483810	48	38	10	174,70
153	Q4D483812	48	38	12	182,42
154	Q4D483816	48	38	16	197,86
155	Q4D483820	48	38	20	213,30
156	Q4D602606	60	26	6	138,88
157	Q4D602608	60	26	8	146,60
158	Q4D602610	60	26	10	154,32
159	Q4D602612	60	26	12	162,04
160	Q4D602616	60	26	16	177,48
161	Q4D602620	60	26	20	192,92
162	Q4D603206	60	32	6	167,72
163	Q4D603208	60	32	8	175,98
164	Q4D603210	60	32	10	184,24
165	Q4D603212	60	32	12	192,50
166	Q4D603216	60	32	16	209,02
167	Q4D603220	60	32	20	225,54
168	Q4D603806	60	38	6	196,47
169	Q4D603808	60	38	8	205,27
170	Q4D603810	60	38	10	214,06
171	Q4D603812	60	38	12	222,86
172	Q4D603816	60	38	16	240,46
173	Q4D603820	60	38	20	258,05
174	Q4D722606	72	26	6	165,10
175	Q4D722608	72	26	8	173,90
176	Q4D722610	72	26	10	182,70
177	Q4D722612	72	26	12	191,49
178	Q4D722616	72	26	16	209,09
179	Q4D722620	72	26	20	226,69
180	Q4D723206	72	32	6	199,44
181	Q4D723208	72	32	8	208,78
182	Q4D723210	72	32	10	218,11
183	Q4D723212	72	32	12	227,45
184	Q4D723216	72	32	16	246,12
185	Q4D723220	72	32	20	264,80
186	Q4D723806	72	38	6	233,68
187	Q4D723808	72	38	8	243,56
188	Q4D723810	72	38	10	253,43
189	Q4D723812	72	38	12	263,31
190	Q4D723816	72	38	16	283,06
191	Q4D723820	72	38	20	302,81
