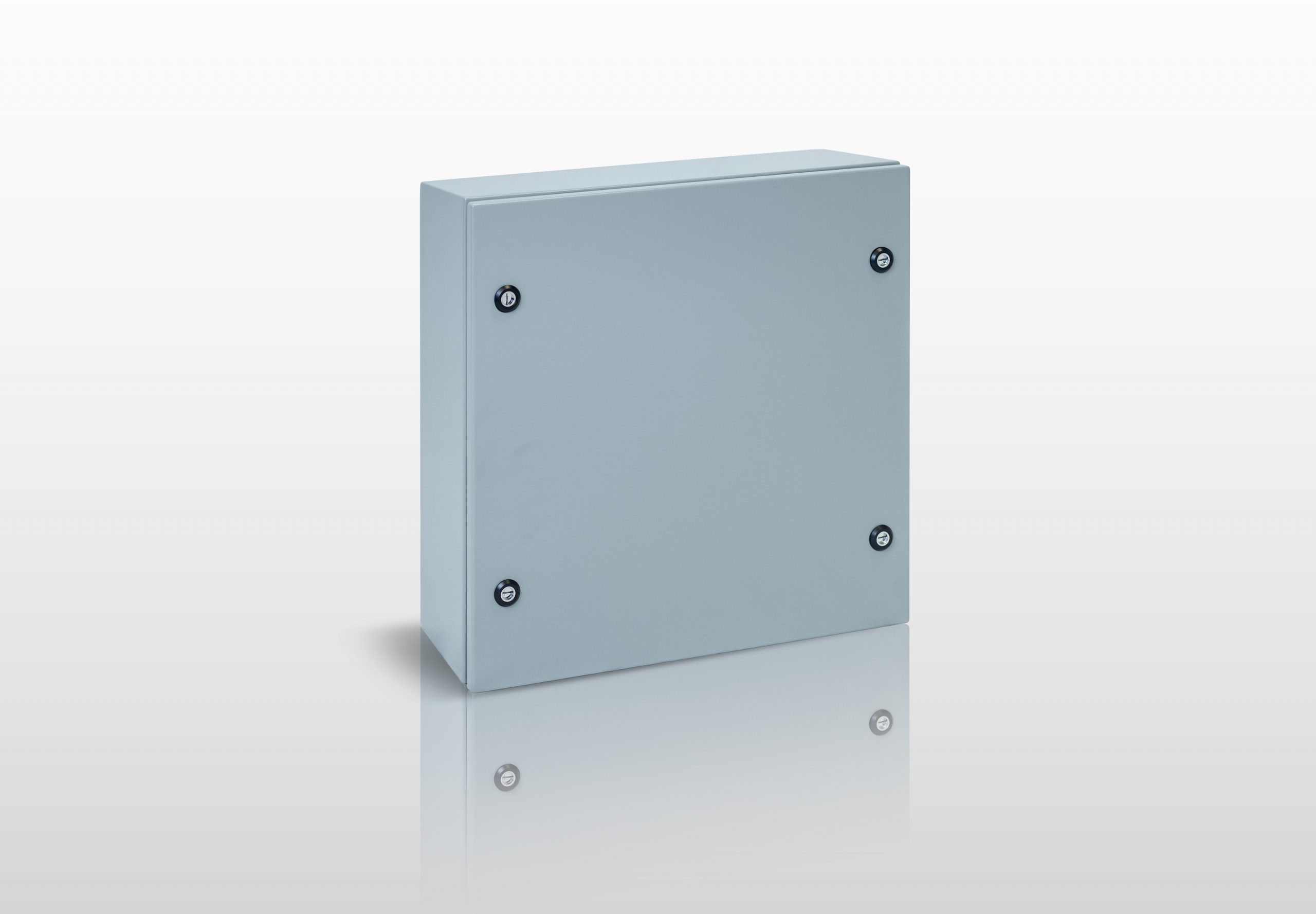

NEMA Quarter Turn, 4 SINGLE DOOR ENCLOSURE WITH LIFT-OFF DOOR AND QUARTER TURN LATCHES

SERIES QL4

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Contemporary design with removable door allows for easy access to internal components when space surrounding enclosure is limited
• Designed for indoor use and will protect components from falling dust, dirt, oil, and hose directed water

• NEMA Type Quarter Turn, 4
• CSA Type Quarter Turn, 4
• UL Type Quarter Turn, 4

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with seam welds that are ground smooth
• Door is removable and secured with quarter turn latches
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

QL4.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT
1	QL4121206	12	12	6	18,29
2	QL4121208	12	12	8	20,45
3	QL4121210	12	12	10	22,60
4	QL4121212	12	12	12	24,76
5	QL4121606	12	16	6	22,81
6	QL4121608	12	16	8	25,32
7	QL4121610	12	16	10	27,83
8	QL4121612	12	16	12	30,35
9	QL4122006	12	20	6	27,32
10	QL4122008	12	20	8	30,19
11	QL4122010	12	20	10	33,07
12	QL4122012	12	20	12	35,94
13	QL4122406	12	24	6	31,83
14	QL4122408	12	24	8	35,07
15	QL4122410	12	24	10	38,30
16	QL4122412	12	24	12	41,53
17	QL4161206	16	12	6	23,01
18	QL4161208	16	12	8	25,53
19	QL4161210	16	12	10	28,04
20	QL4161212	16	12	12	30,55
21	QL4161606	16	16	6	28,75
22	QL4161608	16	16	8	31,62
23	QL4161610	16	16	10	34,49
24	QL4161612	16	16	12	37,36
25	QL4161616	16	16	16	43,11
26	QL4162006	16	20	6	34,48
27	QL4162008	16	20	8	37,71
28	QL4162010	16	20	10	40,94
29	QL4162012	16	20	12	44,18
30	QL4162016	16	20	16	50,64
31	QL4162406	16	24	6	40,22
32	QL4162408	16	24	8	43,81
33	QL4162410	16	24	10	47,40
34	QL4162412	16	24	12	50,99
35	QL4162416	16	24	16	58,17
36	QL4163006	16	30	6	48,91
37	QL4163008	16	30	8	53,04
38	QL4163010	16	30	10	57,17
39	QL4163012	16	30	12	61,30
40	QL4163016	16	30	16	69,56
41	QL4201206	20	12	6	27,73
42	QL4201208	20	12	8	30,60
43	QL4201210	20	12	10	33,48
44	QL4201212	20	12	12	36,35
45	QL4201606	20	16	6	34,69
46	QL4201608	20	16	8	37,92
47	QL4201610	20	16	10	41,15
48	QL4201612	20	16	12	44,38
49	QL4201616	20	16	16	50,85
50	QL4202006	20	20	6	41,64
51	QL4202008	20	20	8	45,23
52	QL4202010	20	20	10	48,82
53	QL4202012	20	20	12	52,42
54	QL4202016	20	20	16	59,60
55	QL4202020	20	20	20	66,78
56	QL4202406	20	24	6	48,60
57	QL4202408	20	24	8	52,55
58	QL4202410	20	24	10	56,50
59	QL4202412	20	24	12	60,45
60	QL4202416	20	24	16	68,35
61	QL4202420	20	24	20	76,25
62	QL4203006	20	30	6	59,13
63	QL4203008	20	30	8	63,62
64	QL4203010	20	30	10	68,11
65	QL4203012	20	30	12	72,59
66	QL4203016	20	30	16	81,57
67	QL4203020	20	30	20	90,55
68	QL4203606	20	36	6	69,56
69	QL4203608	20	36	8	74,59
70	QL4203610	20	36	10	79,62
71	QL4203612	20	36	12	84,64
72	QL4203616	20	36	16	94,70
73	QL4203620	20	36	20	104,75
74	QL4241206	24	12	6	33,14
75	QL4241208	24	12	8	36,38
76	QL4241210	24	12	10	39,61
77	QL4241212	24	12	12	42,84
78	QL4241606	24	16	6	41,32
79	QL4241608	24	16	8	44,91
80	QL4241610	24	16	10	48,50
81	QL4241612	24	16	12	52,09
82	QL4241616	24	16	16	59,28
83	QL4242006	24	20	6	49,50
84	QL4242008	24	20	8	53,45
85	QL4242010	24	20	10	57,40
86	QL4242012	24	20	12	61,35
87	QL4242016	24	20	16	69,25
88	QL4242020	24	20	20	77,15
89	QL4242406	24	24	6	57,67
90	QL4242408	24	24	8	61,98
91	QL4242410	24	24	10	66,29
92	QL4242412	24	24	12	70,60
93	QL4242416	24	24	16	79,22
94	QL4242420	24	24	20	87,84
95	QL4243006	24	30	6	70,04
96	QL4243008	24	30	8	74,88
97	QL4243010	24	30	10	79,73
98	QL4243012	24	30	12	84,58
99	QL4243016	24	30	16	94,27
100	QL4243020	24	30	20	103,97
101	QL4243606	24	36	6	82,30
102	QL4243608	24	36	8	87,69
103	QL4243610	24	36	10	93,07
104	QL4243612	24	36	12	98,46
105	QL4243616	24	36	16	109,23
106	QL4243620	24	36	20	120,01
107	QL4301606	30	16	6	50,33
108	QL4301608	30	16	8	54,46
109	QL4301610	30	16	10	58,59
110	QL4301612	30	16	12	62,72
111	QL4301616	30	16	16	70,98
112	QL4302006	30	20	6	60,34
113	QL4302008	30	20	8	64,82
114	QL4302010	30	20	10	69,31
115	QL4302012	30	20	12	73,80
116	QL4302016	30	20	16	82,78
117	QL4302020	30	20	20	91,76
118	QL4302406	30	24	6	70,34
119	QL4302408	30	24	8	75,19
120	QL4302410	30	24	10	80,04
121	QL4302412	30	24	12	84,89
122	QL4302416	30	24	16	94,58
123	QL4302420	30	24	20	104,28
124	QL4303006	30	30	6	85,45
125	QL4303008	30	30	8	90,84
126	QL4303010	30	30	10	96,23
127	QL4303012	30	30	12	101,61
128	QL4303016	30	30	16	112,39
129	QL4303020	30	30	20	123,16
130	QL4303606	30	36	6	100,47
131	QL4303608	30	36	8	106,39
132	QL4303610	30	36	10	112,32
133	QL4303612	30	36	12	118,24
134	QL4303616	30	36	16	130,09
135	QL4303620	30	36	20	141,94
136	QL4362006	36	20	6	71,08
137	QL4362008	36	20	8	76,11
138	QL4362010	36	20	10	81,13
139	QL4362012	36	20	12	86,16
140	QL4362016	36	20	16	96,22
141	QL4362020	36	20	20	106,27
142	QL4362406	36	24	6	82,92
143	QL4362408	36	24	8	88,30
144	QL4362410	36	24	10	93,69
145	QL4362412	36	24	12	99,08
146	QL4362416	36	24	16	109,85
147	QL4362420	36	24	20	120,62
148	QL4363006	36	30	6	100,77
149	QL4363008	36	30	8	106,70
150	QL4363010	36	30	10	112,62
151	QL4363012	36	30	12	118,55
152	QL4363016	36	30	16	130,40
153	QL4363020	36	30	20	142,25
154	QL4363606	36	36	6	118,53
155	QL4363608	36	36	8	125,00
156	QL4363610	36	36	10	131,46
157	QL4363612	36	36	12	137,92
158	QL4363616	36	36	16	150,85
159	QL4363620	36	36	20	163,78
160	QL4422406	42	24	6	96,18
161	QL4422408	42	24	8	102,11
162	QL4422410	42	24	10	108,04
163	QL4422412	42	24	12	113,96
164	QL4422416	42	24	16	125,81
165	QL4422420	42	24	20	137,66
166	QL4423006	42	30	6	116,79
167	QL4423008	42	30	8	123,25
168	QL4423010	42	30	10	129,72
169	QL4423012	42	30	12	136,18
170	QL4423016	42	30	16	149,11
171	QL4423020	42	30	20	162,03
172	QL4423606	42	36	6	137,29
173	QL4423608	42	36	8	144,30
174	QL4423610	42	36	10	151,30
175	QL4423612	42	36	12	158,30
176	QL4423616	42	36	16	172,31
177	QL4423620	42	36	20	186,31
178	QL4482406	48	24	6	108,76
179	QL4482408	48	24	8	115,22
180	QL4482410	48	24	10	121,69
181	QL4482412	48	24	12	128,15
182	QL4482416	48	24	16	141,08
183	QL4482420	48	24	20	154,01
184	QL4483006	48	30	6	132,11
185	QL4483008	48	30	8	139,11
186	QL4483010	48	30	10	146,11
187	QL4483012	48	30	12	153,12
188	QL4483016	48	30	16	167,12
189	QL4483020	48	30	20	181,13
190	QL4483606	48	36	6	155,36
191	QL4483608	48	36	8	162,90
192	QL4483610	48	36	10	170,44
193	QL4483612	48	36	12	177,99
194	QL4483616	48	36	16	193,07
195	QL4483620	48	36	20	208,15
196	QL4602406	60	24	6	133,91
197	QL4602408	60	24	8	141,45
198	QL4602410	60	24	10	148,99
199	QL4602412	60	24	12	156,53
200	QL4602416	60	24	16	171,61
201	QL4602420	60	24	20	186,69
202	QL4603006	60	30	6	162,75
203	QL4603008	60	30	8	170,83
204	QL4603010	60	30	10	178,91
205	QL4603012	60	30	12	186,99
206	QL4603016	60	30	16	203,15
207	QL4603020	60	30	20	219,31
208	QL4603606	60	36	6	191,50
209	QL4603608	60	36	8	200,12
210	QL4603610	60	36	10	208,73
211	QL4603612	60	36	12	217,35
212	QL4603616	60	36	16	234,59
213	QL4603620	60	36	20	251,83
214	QL4722406	72	24	6	159,05
215	QL4722408	72	24	8	167,67
216	QL4722410	72	24	10	176,29
217	QL4722412	72	24	12	184,91
218	QL4722416	72	24	16	202,15
219	QL4722420	72	24	20	219,38
220	QL4723006	72	30	6	193,39
221	QL4723008	72	30	8	202,55
222	QL4723010	72	30	10	211,71
223	QL4723012	72	30	12	220,86
224	QL4723016	72	30	16	239,18
225	QL4723020	72	30	20	257,49
226	QL4723606	72	36	6	227,63
227	QL4723608	72	36	8	237,33
228	QL4723610	72	36	10	247,03
229	QL4723612	72	36	12	256,72
230	QL4723616	72	36	16	276,11
231	QL4723620	72	36	20	295,50
