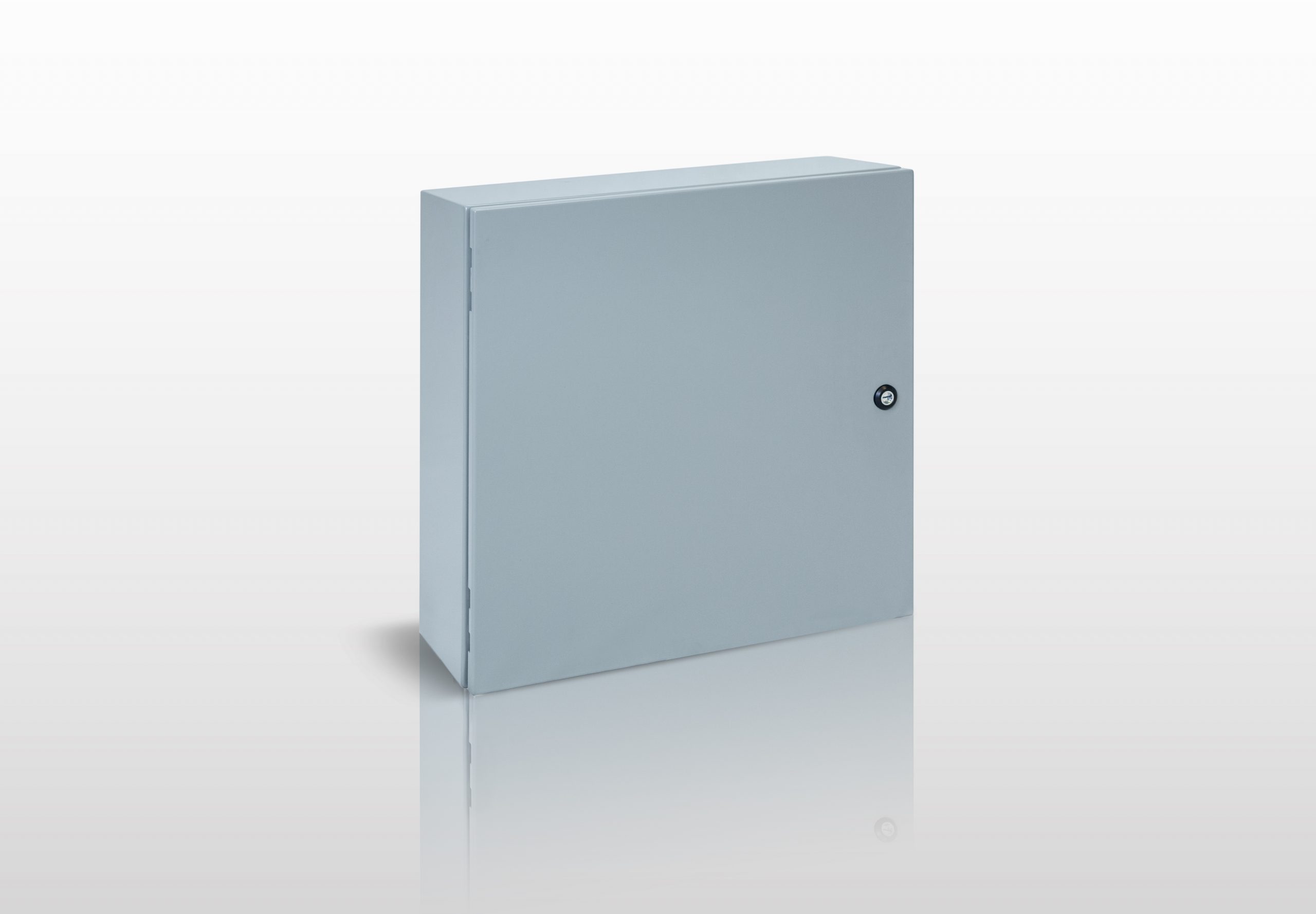

NEMA Quarter Turn, 4 SINGLE DOOR ENCLOSURE WITH QUARTER TURN LATCHES

SERIES Q4

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Contemporary design with concealed hinges and quarter turn latches allows for easy access to internal components
• Designed for indoor or outdoor use and will protect components from dust, dirt, oil, and hose directed water

• NEMA Type Quarter Turn, 4
• CSA Type Quarter Turn, 4
• UL Type Quarter Turn, 4

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with seam welds that are ground smooth
• Door is secured with concealed hinges and one or more quarter turn latches
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

Q4.pdf

wdt_ID	PART NUMBER	HEIGHT	WIDTH	DEPTH	WEIGHT
1	Q4121206	12	12	6	18,13
2	Q4121208	12	12	8	20,29
3	Q4121210	12	12	10	22,44
4	Q4121212	12	12	12	24,60
5	Q4121606	12	16	6	22,65
6	Q4121608	12	16	8	25,16
7	Q4121610	12	16	10	27,68
8	Q4121612	12	16	12	30,19
9	Q4122006	12	20	6	27,16
10	Q4122008	12	20	8	30,03
11	Q4122010	12	20	10	32,91
12	Q4122012	12	20	12	35,78
13	Q4122406	12	24	6	31,68
14	Q4122408	12	24	8	34,91
15	Q4122410	12	24	10	38,14
16	Q4122412	12	24	12	41,37
17	Q4161206	16	12	6	22,97
18	Q4161208	16	12	8	25,49
19	Q4161210	16	12	10	28,00
20	Q4161212	16	12	12	30,52
21	Q4161606	16	16	6	28,71
22	Q4161608	16	16	8	31,58
23	Q4161610	16	16	10	34,46
24	Q4161612	16	16	12	37,33
25	Q4161616	16	16	16	43,07
26	Q4162006	16	20	6	34,44
27	Q4162008	16	20	8	37,68
28	Q4162010	16	20	10	40,91
29	Q4162012	16	20	12	44,14
30	Q4162016	16	20	16	50,60
31	Q4162406	16	24	6	40,18
32	Q4162408	16	24	8	43,77
33	Q4162410	16	24	10	47,36
34	Q4162412	16	24	12	50,95
35	Q4162416	16	24	16	58,13
36	Q4163006	16	30	6	48,88
37	Q4163008	16	30	8	53,01
38	Q4163010	16	30	10	57,14
39	Q4163012	16	30	12	61,27
40	Q4163016	16	30	16	69,53
41	Q4201206	20	12	6	27,69
42	Q4201208	20	12	8	30,57
43	Q4201210	20	12	10	33,44
44	Q4201212	20	12	12	36,31
45	Q4201606	20	16	6	34,65
46	Q4201608	20	16	8	37,88
47	Q4201610	20	16	10	41,11
48	Q4201612	20	16	12	44,35
49	Q4201616	20	16	16	50,81
50	Q4202006	20	20	6	41,61
51	Q4202008	20	20	8	45,20
52	Q4202010	20	20	10	48,79
53	Q4202012	20	20	12	52,38
54	Q4202016	20	20	16	59,56
55	Q4202020	20	20	20	66,74
56	Q4202406	20	24	6	48,56
57	Q4202408	20	24	8	52,51
58	Q4202410	20	24	10	56,46
59	Q4202412	20	24	12	60,41
60	Q4202416	20	24	16	68,31
61	Q4202420	20	24	20	76,21
62	Q4203006	20	30	6	59,09
63	Q4203008	20	30	8	63,58
64	Q4203010	20	30	10	68,07
65	Q4203012	20	30	12	72,56
66	Q4203016	20	30	16	81,54
67	Q4203020	20	30	20	90,51
68	Q4203606	20	36	6	69,53
69	Q4203608	20	36	8	74,55
70	Q4203610	20	36	10	79,58
71	Q4203612	20	36	12	84,61
72	Q4203616	20	36	16	94,66
73	Q4203620	20	36	20	104,72
74	Q4241206	24	12	6	32,59
75	Q4241208	24	12	8	35,82
76	Q4241210	24	12	10	39,05
77	Q4241212	24	12	12	42,28
78	Q4241606	24	16	6	40,76
79	Q4241608	24	16	8	44,35
80	Q4241610	24	16	10	47,95
81	Q4241612	24	16	12	51,54
82	Q4241616	24	16	16	58,72
83	Q4242006	24	20	6	48,94
84	Q4242008	24	20	8	52,89
85	Q4242010	24	20	10	56,84
86	Q4242012	24	20	12	60,79
87	Q4242016	24	20	16	68,69
88	Q4242020	24	20	20	76,59
89	Q4242406	24	24	6	57,12
90	Q4242408	24	24	8	61,43
91	Q4242410	24	24	10	65,74
92	Q4242412	24	24	12	70,04
93	Q4242416	24	24	16	78,66
94	Q4242420	24	24	20	87,28
95	Q4243006	24	30	6	69,48
96	Q4243008	24	30	8	74,33
97	Q4243010	24	30	10	79,17
98	Q4243012	24	30	12	84,02
99	Q4243016	24	30	16	93,72
100	Q4243020	24	30	20	103,41
101	Q4243606	24	36	6	81,74
102	Q4243608	24	36	8	87,13
103	Q4243610	24	36	10	92,52
104	Q4243612	24	36	12	97,90
105	Q4243616	24	36	16	108,68
106	Q4243620	24	36	20	119,45
107	Q4301606	30	16	6	49,77
108	Q4301608	30	16	8	53,90
109	Q4301610	30	16	10	58,03
110	Q4301612	30	16	12	62,16
111	Q4301616	30	16	16	70,42
112	Q4302006	30	20	6	59,78
113	Q4302008	30	20	8	64,27
114	Q4302010	30	20	10	68,76
115	Q4302012	30	20	12	73,25
116	Q4302016	30	20	16	82,22
117	Q4302020	30	20	20	91,20
118	Q4302406	30	24	6	69,79
119	Q4302408	30	24	8	74,64
120	Q4302410	30	24	10	79,48
121	Q4302412	30	24	12	84,33
122	Q4302416	30	24	16	94,03
123	Q4302420	30	24	20	103,72
124	Q4303006	30	30	6	84,90
125	Q4303008	30	30	8	90,28
126	Q4303010	30	30	10	95,67
127	Q4303012	30	30	12	101,06
128	Q4303016	30	30	16	111,83
129	Q4303020	30	30	20	122,60
130	Q4303606	30	36	6	99,91
131	Q4303608	30	36	8	105,83
132	Q4303610	30	36	10	111,76
133	Q4303612	30	36	12	117,68
134	Q4303616	30	36	16	129,53
135	Q4303620	30	36	20	141,38
136	Q4362006	36	20	6	70,52
137	Q4362008	36	20	8	75,55
138	Q4362010	36	20	10	80,58
139	Q4362012	36	20	12	85,60
140	Q4362016	36	20	16	95,66
141	Q4362020	36	20	20	105,71
142	Q4362406	36	24	6	82,36
143	Q4362408	36	24	8	87,75
144	Q4362410	36	24	10	93,13
145	Q4362412	36	24	12	98,52
146	Q4362416	36	24	16	109,29
147	Q4362420	36	24	20	120,07
148	Q4363006	36	30	6	100,22
149	Q4363008	36	30	8	106,14
150	Q4363010	36	30	10	112,07
151	Q4363012	36	30	12	117,99
152	Q4363016	36	30	16	129,84
153	Q4363020	36	30	20	141,69
154	Q4363606	36	36	6	117,98
155	Q4363608	36	36	8	124,44
156	Q4363610	36	36	10	130,90
157	Q4363612	36	36	12	137,37
158	Q4363616	36	36	16	150,30
159	Q4363620	36	36	20	163,22
160	Q4422406	42	24	6	95,23
161	Q4422408	42	24	8	101,15
162	Q4422410	42	24	10	107,08
163	Q4422412	42	24	12	113,00
164	Q4422416	42	24	16	124,85
165	Q4422420	42	24	20	136,71
166	Q4423006	42	30	6	115,83
167	Q4423008	42	30	8	122,30
168	Q4423010	42	30	10	128,76
169	Q4423012	42	30	12	135,22
170	Q4423016	42	30	16	148,15
171	Q4423020	42	30	20	161,08
172	Q4423606	42	36	6	136,34
173	Q4423608	42	36	8	143,34
174	Q4423610	42	36	10	150,34
175	Q4423612	42	36	12	157,35
176	Q4423616	42	36	16	171,35
177	Q4423620	42	36	20	185,36
178	Q4482406	48	24	6	107,80
179	Q4482408	48	24	8	114,27
180	Q4482410	48	24	10	120,73
181	Q4482412	48	24	12	127,19
182	Q4482416	48	24	16	140,12
183	Q4482420	48	24	20	153,05
184	Q4483006	48	30	6	131,15
185	Q4483008	48	30	8	138,16
186	Q4483010	48	30	10	145,16
187	Q4483012	48	30	12	152,16
188	Q4483016	48	30	16	166,17
189	Q4483020	48	30	20	180,17
190	Q4483606	48	36	6	154,41
191	Q4483608	48	36	8	161,95
192	Q4483610	48	36	10	169,49
193	Q4483612	48	36	12	177,03
194	Q4483616	48	36	16	192,11
195	Q4483620	48	36	20	207,19
196	Q4602406	60	24	6	132,95
197	Q4602408	60	24	8	140,49
198	Q4602410	60	24	10	148,03
199	Q4602412	60	24	12	155,57
200	Q4602416	60	24	16	170,66
201	Q4602420	60	24	20	185,74
202	Q4603006	60	30	6	161,79
203	Q4603008	60	30	8	169,87
204	Q4603010	60	30	10	177,95
205	Q4603012	60	30	12	186,03
206	Q4603016	60	30	16	202,19
207	Q4603020	60	30	20	218,35
208	Q4603606	60	36	6	190,54
209	Q4603608	60	36	8	199,16
210	Q4603610	60	36	10	207,78
211	Q4603612	60	36	12	216,40
212	Q4603616	60	36	16	233,63
213	Q4603620	60	36	20	250,87
214	Q4722406	72	24	6	158,10
215	Q4722408	72	24	8	166,72
216	Q4722410	72	24	10	175,33
217	Q4722412	72	24	12	183,95
218	Q4722416	72	24	16	201,19
219	Q4722420	72	24	20	218,43
220	Q4723006	72	30	6	192,44
221	Q4723008	72	30	8	201,59
222	Q4723010	72	30	10	210,75
223	Q4723012	72	30	12	219,91
224	Q4723016	72	30	16	238,22
225	Q4723020	72	30	20	256,54
226	Q4723606	72	36	6	226,68
227	Q4723608	72	36	8	236,37
228	Q4723610	72	36	10	246,07
229	Q4723612	72	36	12	255,77
230	Q4723616	72	36	16	275,16
231	Q4723620	72	36	20	294,55
