EDI Electrical Enclosures

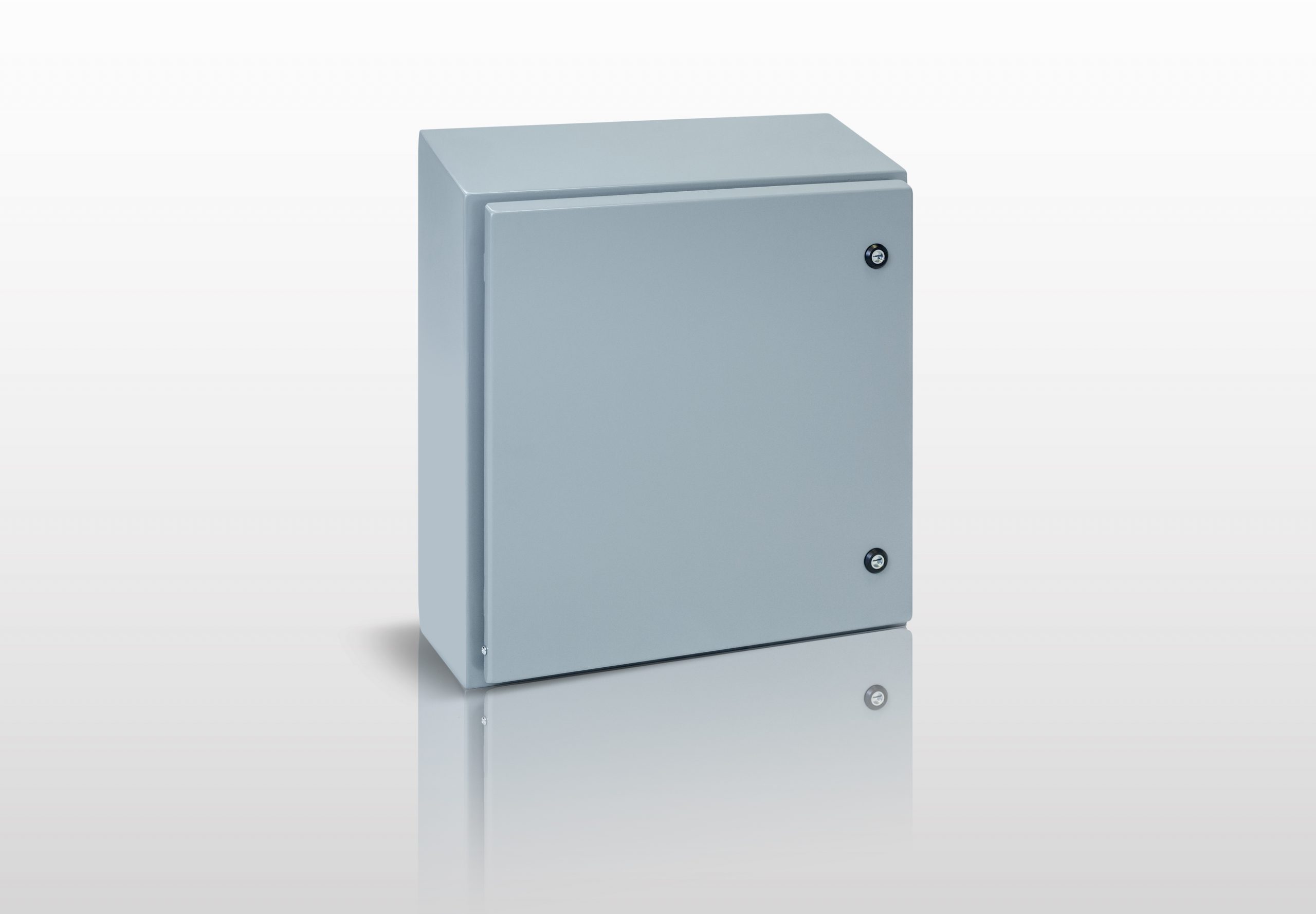

NEMA Quarter Turn, 4 SLOPE-TOP ENCLOSURE WITH QUARTER TURN LATCHES

SERIES Q4W

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Slope-top design with concealed hinges and quarter turn latches allows for easy access to internal components
• Designed for 5S production enviroments and will protect components from dust, dirt, oil, and hose directed water

• NEMA Type Quarter Turn, 4
• CSA Type Quarter Turn, 4
• UL Type Quarter Turn, 4

TRY OUR CONFIGURATOR

• Fabricated from 14-gauge steel with seam welds that are ground smooth
• Door is secured with concealed bullet-style hinges and one or more quarter turn latches
• Enclosure top is inclined at 20°
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

Q4W.pdf

Q4W

wdt_ID	PART NUMBER	HEIGHT 1	HEIGHT 2	WIDTH	DEPTH	WEIGHT
1	Q4W121206	12	15,02	12	6	19,67
2	Q4W121208	12	15,75	12	8	22,75
3	Q4W121210	12	16,48	12	10	25,96
4	Q4W121212	12	17,21	12	12	29,30
5	Q4W121606	12	15,02	16	6	20,80
6	Q4W121608	12	15,75	16	8	23,88
7	Q4W121610	12	16,48	16	10	27,09
8	Q4W121612	12	17,21	16	12	30,44
9	Q4W122006	12	15,02	20	6	21,94
10	Q4W122008	12	15,75	20	8	25,02
11	Q4W122010	12	16,48	20	10	28,23
12	Q4W122012	12	17,21	20	12	31,57
13	Q4W122406	12	15,02	24	6	23,07
14	Q4W122408	12	15,75	24	8	26,15
15	Q4W122410	12	16,48	24	10	29,36
16	Q4W122412	12	17,21	24	12	32,70
17	Q4W161206	16	19,02	12	6	28,74
18	Q4W161208	16	19,75	12	8	32,66
19	Q4W161210	16	20,48	12	10	36,72
20	Q4W161212	16	21,21	12	12	40,91
21	Q4W161606	16	19,02	16	6	30,37
22	Q4W161608	16	19,75	16	8	34,30
23	Q4W161610	16	20,48	16	10	38,36
24	Q4W161612	16	21,21	16	12	42,55
25	Q4W161616	16	22,66	16	16	51,32
26	Q4W162006	16	19,02	20	6	32,00
27	Q4W162008	16	19,75	20	8	35,93
28	Q4W162010	16	20,48	20	10	39,99
29	Q4W162012	16	21,21	20	12	44,18
30	Q4W162016	16	22,66	20	16	52,95
31	Q4W162406	16	19,02	24	6	33,64
32	Q4W162408	16	19,75	24	8	37,57
33	Q4W162410	16	20,48	24	10	41,62
34	Q4W162412	16	21,21	24	12	45,81
35	Q4W162416	16	22,66	24	16	54,59
36	Q4W163006	16	19,02	30	6	36,09
37	Q4W163008	16	19,75	30	8	40,02
38	Q4W163010	16	20,48	30	10	44,08
39	Q4W163012	16	21,21	30	12	48,27
40	Q4W163016	16	22,66	30	16	57,04
41	Q4W201206	20	23,02	12	6	39,23
42	Q4W201208	20	23,75	12	8	44,01
43	Q4W201210	20	24,48	12	10	48,92
44	Q4W201212	20	25,21	12	12	53,96
45	Q4W201606	20	23,02	16	6	41,37
46	Q4W201608	20	23,75	16	8	46,15
47	Q4W201610	20	24,48	16	10	51,06
48	Q4W201612	20	25,21	16	12	56,09
49	Q4W201616	20	26,66	16	16	66,56
50	Q4W202006	20	23,02	20	6	43,51
51	Q4W202008	20	23,75	20	8	48,28
52	Q4W202010	20	24,48	20	10	53,19
53	Q4W202012	20	25,21	20	12	58,23
54	Q4W202016	20	26,66	20	16	68,70
55	Q4W202020	20	28,12	20	20	79,69
56	Q4W202406	20	23,02	24	6	45,64
57	Q4W202408	20	23,75	24	8	50,42
58	Q4W202410	20	24,48	24	10	55,33
59	Q4W202412	20	25,21	24	12	60,37
60	Q4W202416	20	26,66	24	16	70,84
61	Q4W202420	20	28,12	24	20	81,83
62	Q4W203006	20	23,02	30	6	48,85
63	Q4W203008	20	23,75	30	8	53,63
64	Q4W203010	20	24,48	30	10	58,53
65	Q4W203012	20	25,21	30	12	63,57
66	Q4W203016	20	26,66	30	16	74,04
67	Q4W203020	20	28,12	30	20	85,04
68	Q4W203606	20	23,02	36	6	52,15
69	Q4W203608	20	23,75	36	8	56,93
70	Q4W203610	20	24,48	36	10	61,84
71	Q4W203612	20	25,21	36	12	66,87
72	Q4W203616	20	26,66	36	16	77,34
73	Q4W203620	20	28,12	36	20	88,34
74	Q4W241206	24	27,02	12	6	51,52
75	Q4W241208	24	27,75	12	8	57,14
76	Q4W241210	24	28,48	12	10	62,90
77	Q4W241212	24	29,21	12	12	68,79
78	Q4W241606	24	27,02	16	6	54,15
79	Q4W241608	24	27,75	16	8	59,78
80	Q4W241610	24	28,48	16	10	65,54
81	Q4W241612	24	29,21	16	12	71,43
82	Q4W241616	24	30,66	16	16	83,59
83	Q4W242006	24	27,02	20	6	56,79
84	Q4W242008	24	27,75	20	8	62,42
85	Q4W242010	24	28,48	20	10	68,18
86	Q4W242012	24	29,21	20	12	74,06
87	Q4W242016	24	30,66	20	16	86,23
88	Q4W242020	24	32,12	20	20	98,92
89	Q4W242406	24	27,02	24	6	59,43
90	Q4W242408	24	27,75	24	8	65,06
91	Q4W242410	24	28,48	24	10	70,82
92	Q4W242412	24	29,21	24	12	76,70
93	Q4W242416	24	30,66	24	16	88,87
94	Q4W242420	24	32,12	24	20	101,56
95	Q4W243006	24	27,02	30	6	63,39
96	Q4W243008	24	27,75	30	8	69,02
97	Q4W243010	24	28,48	30	10	74,78
98	Q4W243012	24	29,21	30	12	80,66
99	Q4W243016	24	30,66	30	16	92,83
100	Q4W243020	24	32,12	30	20	105,52
101	Q4W243606	24	27,02	36	6	67,45
102	Q4W243608	24	27,75	36	8	73,07
103	Q4W243610	24	28,48	36	10	78,83
104	Q4W243612	24	29,21	36	12	84,72
105	Q4W243616	24	30,66	36	16	96,89
106	Q4W243620	24	32,12	36	20	109,58
107	Q4W301606	30	33,02	16	6	75,50
108	Q4W301608	30	33,75	16	8	82,40
109	Q4W301610	30	34,48	16	10	89,43
110	Q4W301612	30	35,21	16	12	96,59
111	Q4W301616	30	36,66	16	16	111,31
112	Q4W302006	30	33,02	20	6	78,90
113	Q4W302008	30	33,75	20	8	85,80
114	Q4W302010	30	34,48	20	10	92,83
115	Q4W302012	30	35,21	20	12	99,99
116	Q4W302016	30	36,66	20	16	114,70
117	Q4W302020	30	38,12	20	20	129,94
118	Q4W302406	30	33,02	24	6	82,29
119	Q4W302408	30	33,75	24	8	89,19
120	Q4W302410	30	34,48	24	10	96,22
121	Q4W302412	30	35,21	24	12	103,38
122	Q4W302416	30	36,66	24	16	118,10
123	Q4W302420	30	38,12	24	20	133,33
124	Q4W303006	30	33,02	30	6	87,38
125	Q4W303008	30	33,75	30	8	94,28
126	Q4W303010	30	34,48	30	10	101,31
127	Q4W303012	30	35,21	30	12	108,47
128	Q4W303016	30	36,66	30	16	123,19
129	Q4W303020	30	38,12	30	20	138,42
130	Q4W303606	30	33,02	36	6	92,57
131	Q4W303608	30	33,75	36	8	99,47
132	Q4W303610	30	34,48	36	10	106,50
133	Q4W303612	30	35,21	36	12	113,66
134	Q4W303616	30	36,66	36	16	128,37
135	Q4W303620	30	38,12	36	20	143,61
136	Q4W362006	36	39,02	20	6	104,33
137	Q4W362008	36	39,75	20	8	112,50
138	Q4W362010	36	40,48	20	10	120,81
139	Q4W362012	36	41,21	20	12	129,24
140	Q4W362016	36	42,66	20	16	146,50
141	Q4W362020	36	44,12	20	20	164,28
142	Q4W362406	36	39,02	24	6	108,48
143	Q4W362408	36	39,75	24	8	116,65
144	Q4W362410	36	40,48	24	10	124,95
145	Q4W362412	36	41,21	24	12	133,39
146	Q4W362416	36	42,66	24	16	150,65
147	Q4W362420	36	44,12	24	20	168,43
148	Q4W363006	36	39,02	30	6	114,70
149	Q4W363008	36	39,75	30	8	122,87
150	Q4W363010	36	40,48	30	10	131,17
151	Q4W363012	36	41,21	30	12	139,61
152	Q4W363016	36	42,66	30	16	156,87
153	Q4W363020	36	44,12	30	20	174,65
154	Q4W363606	36	39,02	36	6	121,02
155	Q4W363608	36	39,75	36	8	129,19
156	Q4W363610	36	40,48	36	10	137,49
157	Q4W363612	36	41,21	36	12	145,93
158	Q4W363616	36	42,66	36	16	163,19
159	Q4W363620	36	44,12	36	20	180,97
160	Q4W422406	42	45,02	24	6	138,14
161	Q4W422408	42	45,75	24	8	147,59
162	Q4W422410	42	46,48	24	10	157,17
163	Q4W422412	42	47,21	24	12	166,88
164	Q4W422416	42	48,66	24	16	186,68
165	Q4W422420	42	50,12	24	20	207,01
166	Q4W423006	42	45,02	30	6	145,50
167	Q4W423008	42	45,75	30	8	154,94
168	Q4W423010	42	46,48	30	10	164,52
169	Q4W423012	42	47,21	30	12	174,23
170	Q4W423016	42	48,66	30	16	194,04
171	Q4W423020	42	50,12	30	20	214,37
172	Q4W423606	42	45,02	36	6	152,95
173	Q4W423608	42	45,75	36	8	162,39
174	Q4W423610	42	46,48	36	10	171,97
175	Q4W423612	42	47,21	36	12	181,68
176	Q4W423616	42	48,66	36	16	201,49
177	Q4W423620	42	50,12	36	20	221,82
178	Q4W482406	48	51,02	24	6	170,70
179	Q4W482408	48	51,75	24	8	181,42
180	Q4W482410	48	52,48	24	10	192,27
181	Q4W482412	48	53,21	24	12	203,25
182	Q4W482416	48	54,66	24	16	225,60
183	Q4W482420	48	56,12	24	20	248,48
184	Q4W483006	48	51,02	30	6	179,18
185	Q4W483008	48	51,75	30	8	189,90
186	Q4W483010	48	52,48	30	10	200,75
187	Q4W483012	48	53,21	30	12	211,73
188	Q4W483016	48	54,66	30	16	234,09
189	Q4W483020	48	56,12	30	20	256,96
190	Q4W483606	48	51,02	36	6	187,76
191	Q4W483608	48	51,75	36	8	198,48
192	Q4W483610	48	52,48	36	10	209,33
193	Q4W483612	48	53,21	36	12	220,31
194	Q4W483616	48	54,66	36	16	242,67
195	Q4W483620	48	56,12	36	20	265,54
196	Q4W602406	60	63,02	24	6	245,50
197	Q4W602408	60	63,75	24	8	258,77
198	Q4W602410	60	64,48	24	10	272,16
199	Q4W602412	60	65,21	24	12	285,69
200	Q4W602416	60	66,66	24	16	313,14
201	Q4W602420	60	68,12	24	20	341,11
202	Q4W603006	60	63,02	30	6	256,25
203	Q4W603008	60	63,75	30	8	269,51
204	Q4W603010	60	64,48	30	10	282,91
205	Q4W603012	60	65,21	30	12	296,44
206	Q4W603016	60	66,66	30	16	323,89
207	Q4W603020	60	68,12	30	20	351,86
208	Q4W603606	60	63,02	36	6	267,09
209	Q4W603608	60	63,75	36	8	280,36
210	Q4W603610	60	64,48	36	10	293,75
211	Q4W603612	60	65,21	36	12	307,28
212	Q4W603616	60	66,66	36	16	334,73
213	Q4W603620	60	68,12	36	20	362,70
214	Q4W722406	72	75,02	24	6	333,23
215	Q4W722408	72	75,75	24	8	349,04
216	Q4W722410	72	76,48	24	10	364,99
217	Q4W722412	72	77,21	24	12	381,06
218	Q4W722416	72	78,66	24	16	413,60
219	Q4W722420	72	80,12	24	20	446,67
220	Q4W723006	72	75,02	30	6	346,24
221	Q4W723008	72	75,75	30	8	362,05
222	Q4W723010	72	76,48	30	10	378,00
223	Q4W723012	72	77,21	30	12	394,07
224	Q4W723016	72	78,66	30	16	426,61
225	Q4W723020	72	80,12	30	20	459,68
226	Q4W723606	72	75,02	36	6	359,34
227	Q4W723608	72	75,75	36	8	375,16
228	Q4W723610	72	76,48	36	10	391,10
229	Q4W723612	72	77,21	36	12	407,18
230	Q4W723616	72	78,66	36	16	439,72
231	Q4W723620	72	80,12	36	20	472,78
	PART NUMBER	HEIGHT 1	HEIGHT 2	WIDTH	DEPTH	WEIGHT
