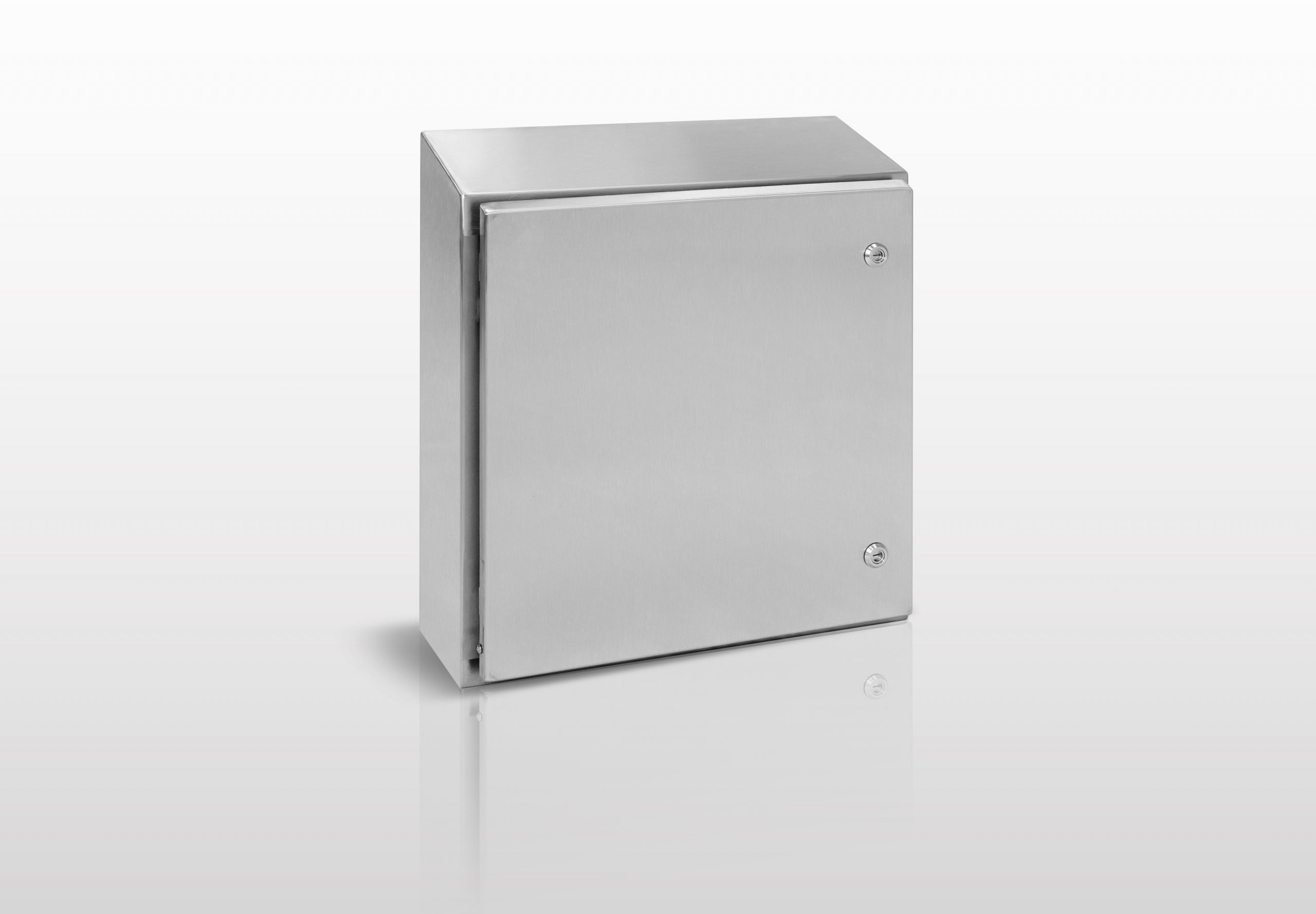

NEMA Quarter Turn, 4X (304 STAINLESS STEEL) SLOPE-TOP ENCLOSURE WITH QUARTER TURN LATCHES - SERIES Q4SW

NEMA Quarter Turn, 4X (304 STAINLESS STEEL) SLOPE-TOP ENCLOSURE WITH QUARTER TURN LATCHES

SERIES Q4SW

• Suitable for housing electrical or electronic controls, instrumentation, and related wiring
• Slope-top design with concealed hinges and quarter turn latches allows for easy access to internal components
• Designed for washdown production enviroments and will protect components from dust, dirt, oil, hose directed water, and other contaminants in highly corrosive enviroments or when sanitary conditions are a requirement

• NEMA Type Quarter Turn, 4X
• CSA Type Quarter Turn, 4X
• UL Type Quarter Turn, 4X

• Fabricated from 14-gauge type 304 stainless steel with seam welds that are ground smooth
• Door is also fabricated from type 304 stainless steel
• Door is secured with concealed bullet-style hinges and one or more stainless steel quarter turn latches
• Enclosure top is inclined at 20°
• Includes a removable 12 gauge steel sub plate
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure exterior is polished to a #4 finish
• Sub plate is finished in a white polyester powder coating over a phosphated surface

———————
• CSA File: 111860
• UL File: E304861

Q4SW.pdf

Type 4X

Family Quarter Turn
