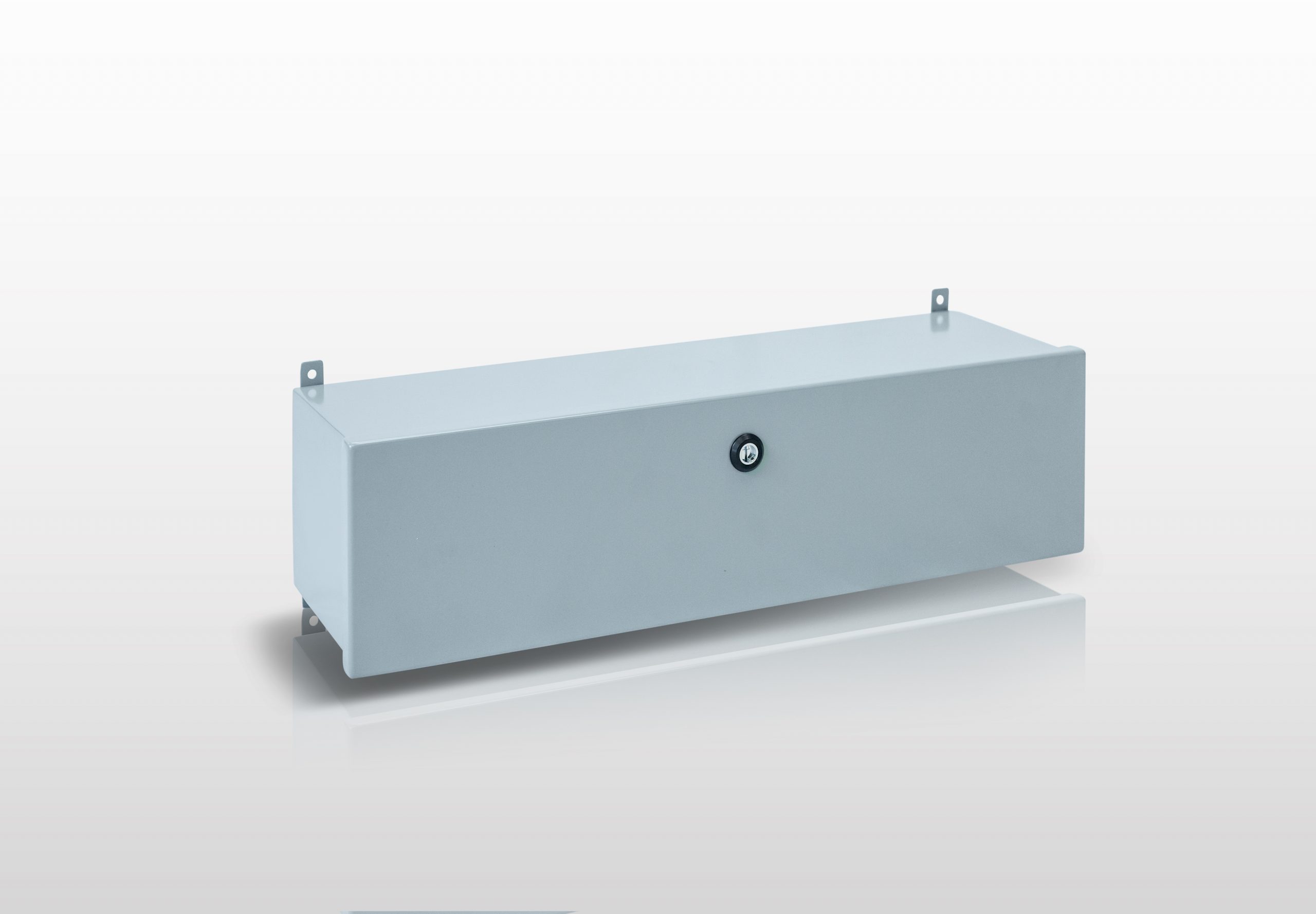

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Continuously hinged door allows for easy access to internal components
• Designed for indoor use and will protect components from falling dust, dirt, oil, and hose directed water
• NEMA Type Trough, 4
• CSA Type Trough, 4
• UL Type Trough, 4
• Fabricated from 16 or 14 gauge steel with seam welds that are ground smooth
• Door is secured with one or more quarter turn latches
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is finished in ANSI-61 grey polyester powder coating over a phosphated surface
———————
• CSA File: 111860
• UL File: E304861
| wdt_ID | PART NUMBER | HEIGHT | WIDTH | DEPTH | WEIGHT |
|---|---|---|---|---|---|
| 1 | TH4Q040412 | 12 | 4 | 4 | 5,03 |
| 2 | TH4Q040416 | 16 | 4 | 4 | 6,46 |
| 3 | TH4Q040420 | 20 | 4 | 4 | 7,90 |
| 4 | TH4Q040424 | 24 | 4 | 4 | 9,34 |
| 5 | TH4Q040430 | 30 | 4 | 4 | 11,49 |
| 6 | TH4Q040436 | 36 | 4 | 4 | 13,65 |
| 7 | TH4Q040442 | 42 | 4 | 4 | 15,80 |
| 8 | TH4Q040448 | 48 | 4 | 4 | 17,96 |
| 9 | TH4Q040460 | 60 | 4 | 4 | 22,26 |
| 10 | TH4Q040472 | 72 | 4 | 4 | 26,57 |
| 11 | TH4Q060612 | 12 | 6 | 6 | 8,08 |
| 12 | TH4Q060616 | 16 | 6 | 6 | 10,23 |
| 13 | TH4Q060620 | 20 | 6 | 6 | 12,39 |
| 14 | TH4Q060624 | 24 | 6 | 6 | 14,54 |
| 15 | TH4Q060630 | 30 | 6 | 6 | 17,78 |
| 16 | TH4Q060636 | 36 | 6 | 6 | 21,01 |
| 17 | TH4Q060642 | 42 | 6 | 6 | 24,24 |
| 18 | TH4Q060648 | 48 | 6 | 6 | 27,47 |
| 19 | TH4Q060660 | 60 | 6 | 6 | 33,94 |
| 20 | TH4Q060672 | 72 | 6 | 6 | 40,40 |
| 21 | TH4Q080812 | 12 | 8 | 8 | 11,49 |
| 22 | TH4Q080816 | 16 | 8 | 8 | 14,36 |
| 23 | TH4Q080820 | 20 | 8 | 8 | 17,24 |
| 24 | TH4Q080824 | 24 | 8 | 8 | 20,11 |
| 25 | TH4Q080830 | 30 | 8 | 8 | 24,42 |
| 26 | TH4Q080836 | 36 | 8 | 8 | 28,73 |
| 27 | TH4Q080842 | 42 | 8 | 8 | 33,04 |
| 28 | TH4Q080848 | 48 | 8 | 8 | 37,35 |
| 29 | TH4Q080860 | 60 | 8 | 8 | 45,96 |
| 30 | TH4Q080872 | 72 | 8 | 8 | 54,58 |
| 31 | TH4Q101012 | 12 | 10 | 10 | 15,26 |
| 32 | TH4Q101016 | 16 | 10 | 10 | 18,85 |
| 33 | TH4Q101020 | 20 | 10 | 10 | 22,44 |
| 34 | TH4Q101024 | 24 | 10 | 10 | 26,03 |
| 35 | TH4Q101030 | 30 | 10 | 10 | 31,42 |
| 36 | TH4Q101036 | 36 | 10 | 10 | 36,81 |
| 37 | TH4Q101042 | 42 | 10 | 10 | 42,19 |
| 38 | TH4Q101048 | 48 | 10 | 10 | 47,58 |
| 39 | TH4Q101060 | 60 | 10 | 10 | 58,35 |
| 40 | TH4Q101072 | 72 | 10 | 10 | 69,13 |
| 41 | TH4Q121212 | 12 | 12 | 12 | 19,39 |
| 42 | TH4Q121216 | 16 | 12 | 12 | 23,70 |
| 43 | TH4Q121220 | 20 | 12 | 12 | 28,01 |
| 44 | TH4Q121224 | 24 | 12 | 12 | 32,32 |
| 45 | TH4Q121230 | 30 | 12 | 12 | 38,78 |
| 46 | TH4Q121236 | 36 | 12 | 12 | 45,25 |
| 47 | TH4Q121242 | 42 | 12 | 12 | 51,71 |
| 48 | TH4Q121248 | 48 | 12 | 12 | 58,17 |
| 49 | TH4Q121260 | 60 | 12 | 12 | 71,10 |
| 50 | TH4Q121272 | 72 | 12 | 12 | 84,03 |
| 51 | TH4Q161616 | 16 | 16 | 16 | 34,47 |
| 52 | TH4Q161620 | 20 | 16 | 16 | 40,22 |
| 53 | TH4Q161624 | 24 | 16 | 16 | 45,96 |
| 54 | TH4Q161630 | 30 | 16 | 16 | 54,58 |
| 55 | TH4Q161636 | 36 | 16 | 16 | 63,20 |
| 56 | TH4Q161642 | 42 | 16 | 16 | 71,82 |
| 57 | TH4Q161648 | 48 | 16 | 16 | 80,44 |
| 58 | TH4Q161660 | 60 | 16 | 16 | 97,68 |
| 59 | TH4Q161672 | 72 | 16 | 16 | 114,91 |
