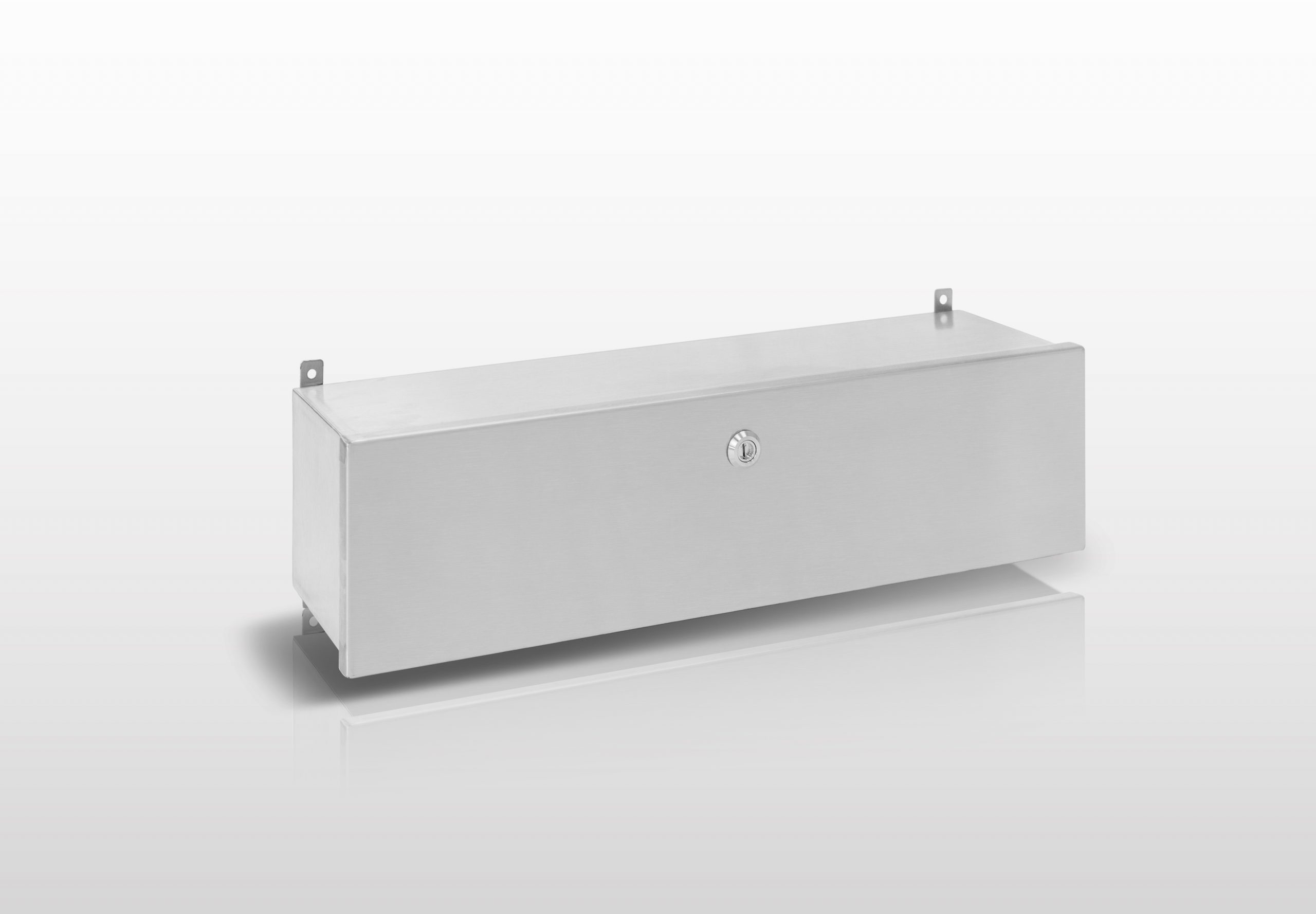

• Suitable for use as an electrical junction box, terminal box, and instrument housing
• Continuously hinged door allows for easy access to internal components
• Designed for indoor or outdoor use and will protect components from dust, dirt, oil, hose directed water, and other contaminants in extremely corrosive enviroments or when sanitary conditions are a requirement
• NEMA Type Trough, 4X
• CSA Type Trough, 4X
• UL Type Trough, 4X
• Fabricated from 16 or 14 gauge type 316L stainless steel with seam welds that are ground smooth
• Door is secured with one or more stainless steel quarter turn latches
• Door gasket is seamless foam-in-place polyurethane
• Ground studs are included on both the door and enclosure body
• Enclosure is polished to a #4 finish
———————
• CSA File: 111860
• UL File: E304861
| wdt_ID | PART NUMBER | WIDTH | DEPTH | HEIGHT | WEIGHT |
|---|---|---|---|---|---|
| 1 | TH4SLQ040412 | 4 | 4 | 12 | 5,03 |
| 2 | TH4SLQ040416 | 4 | 4 | 16 | 6,46 |
| 3 | TH4SLQ040420 | 4 | 4 | 20 | 7,90 |
| 4 | TH4SLQ040424 | 4 | 4 | 24 | 9,34 |
| 5 | TH4SLQ040430 | 4 | 4 | 30 | 11,49 |
| 6 | TH4SLQ040436 | 4 | 4 | 36 | 13,65 |
| 7 | TH4SLQ040442 | 4 | 4 | 42 | 15,80 |
| 8 | TH4SLQ040448 | 4 | 4 | 48 | 17,96 |
| 9 | TH4SLQ040460 | 4 | 4 | 60 | 22,26 |
| 10 | TH4SLQ040472 | 4 | 4 | 72 | 26,57 |
| 11 | TH4SLQ060612 | 6 | 6 | 12 | 8,08 |
| 12 | TH4SLQ060616 | 6 | 6 | 16 | 10,23 |
| 13 | TH4SLQ060620 | 6 | 6 | 20 | 12,39 |
| 14 | TH4SLQ060624 | 6 | 6 | 24 | 14,54 |
| 15 | TH4SLQ060630 | 6 | 6 | 30 | 17,78 |
| 16 | TH4SLQ060636 | 6 | 6 | 36 | 21,01 |
| 17 | TH4SLQ060642 | 6 | 6 | 42 | 24,24 |
| 18 | TH4SLQ060648 | 6 | 6 | 48 | 27,47 |
| 19 | TH4SLQ060660 | 6 | 6 | 60 | 33,94 |
| 20 | TH4SLQ060672 | 6 | 6 | 72 | 40,40 |
| 21 | TH4SLQ080812 | 8 | 8 | 12 | 11,49 |
| 22 | TH4SLQ080816 | 8 | 8 | 16 | 14,36 |
| 23 | TH4SLQ080820 | 8 | 8 | 20 | 17,24 |
| 24 | TH4SLQ080824 | 8 | 8 | 24 | 20,11 |
| 25 | TH4SLQ080830 | 8 | 8 | 30 | 24,42 |
| 26 | TH4SLQ080836 | 8 | 8 | 36 | 28,73 |
| 27 | TH4SLQ080842 | 8 | 8 | 42 | 33,04 |
| 28 | TH4SLQ080848 | 8 | 8 | 48 | 37,35 |
| 29 | TH4SLQ080860 | 8 | 8 | 60 | 45,96 |
| 30 | TH4SLQ080872 | 8 | 8 | 72 | 54,58 |
| 31 | TH4SLQ101012 | 10 | 10 | 12 | 15,26 |
| 32 | TH4SLQ101016 | 10 | 10 | 16 | 18,85 |
| 33 | TH4SLQ101020 | 10 | 10 | 20 | 22,44 |
| 34 | TH4SLQ101024 | 10 | 10 | 24 | 26,03 |
| 35 | TH4SLQ101030 | 10 | 10 | 30 | 31,42 |
| 36 | TH4SLQ101036 | 10 | 10 | 36 | 36,81 |
| 37 | TH4SLQ101042 | 10 | 10 | 42 | 42,19 |
| 38 | TH4SLQ101048 | 10 | 10 | 48 | 47,58 |
| 39 | TH4SLQ101060 | 10 | 10 | 60 | 58,35 |
| 40 | TH4SLQ101072 | 10 | 10 | 72 | 69,13 |
| 41 | TH4SLQ121212 | 12 | 12 | 12 | 19,39 |
| 42 | TH4SLQ121216 | 12 | 12 | 16 | 23,70 |
| 43 | TH4SLQ121220 | 12 | 12 | 20 | 28,01 |
| 44 | TH4SLQ121224 | 12 | 12 | 24 | 32,32 |
| 45 | TH4SLQ121230 | 12 | 12 | 30 | 38,78 |
| 46 | TH4SLQ121236 | 12 | 12 | 36 | 45,25 |
| 47 | TH4SLQ121242 | 12 | 12 | 42 | 51,71 |
| 48 | TH4SLQ121248 | 12 | 12 | 48 | 58,17 |
| 49 | TH4SLQ121260 | 12 | 12 | 60 | 71,10 |
| 50 | TH4SLQ121272 | 12 | 12 | 72 | 84,03 |
| 51 | TH4SLQ161616 | 16 | 16 | 16 | 34,47 |
| 52 | TH4SLQ161620 | 16 | 16 | 20 | 40,22 |
| 53 | TH4SLQ161624 | 16 | 16 | 24 | 45,96 |
| 54 | TH4SLQ161630 | 16 | 16 | 30 | 54,58 |
| 55 | TH4SLQ161636 | 16 | 16 | 36 | 63,20 |
| 56 | TH4SLQ161642 | 16 | 16 | 42 | 71,82 |
| 57 | TH4SLQ161648 | 16 | 16 | 48 | 80,44 |
| 58 | TH4SLQ161660 | 16 | 16 | 60 | 97,68 |
| 59 | TH4SLQ161672 | 16 | 16 | 72 | 114,91 |
